Mechanical Instructions
EN 22 Q552.2E LA4.
2011-Jun-01
back to
div. table
4.4.8 LCD Panel
Refer to Figure 4-22
and Figure 4-23 for details.

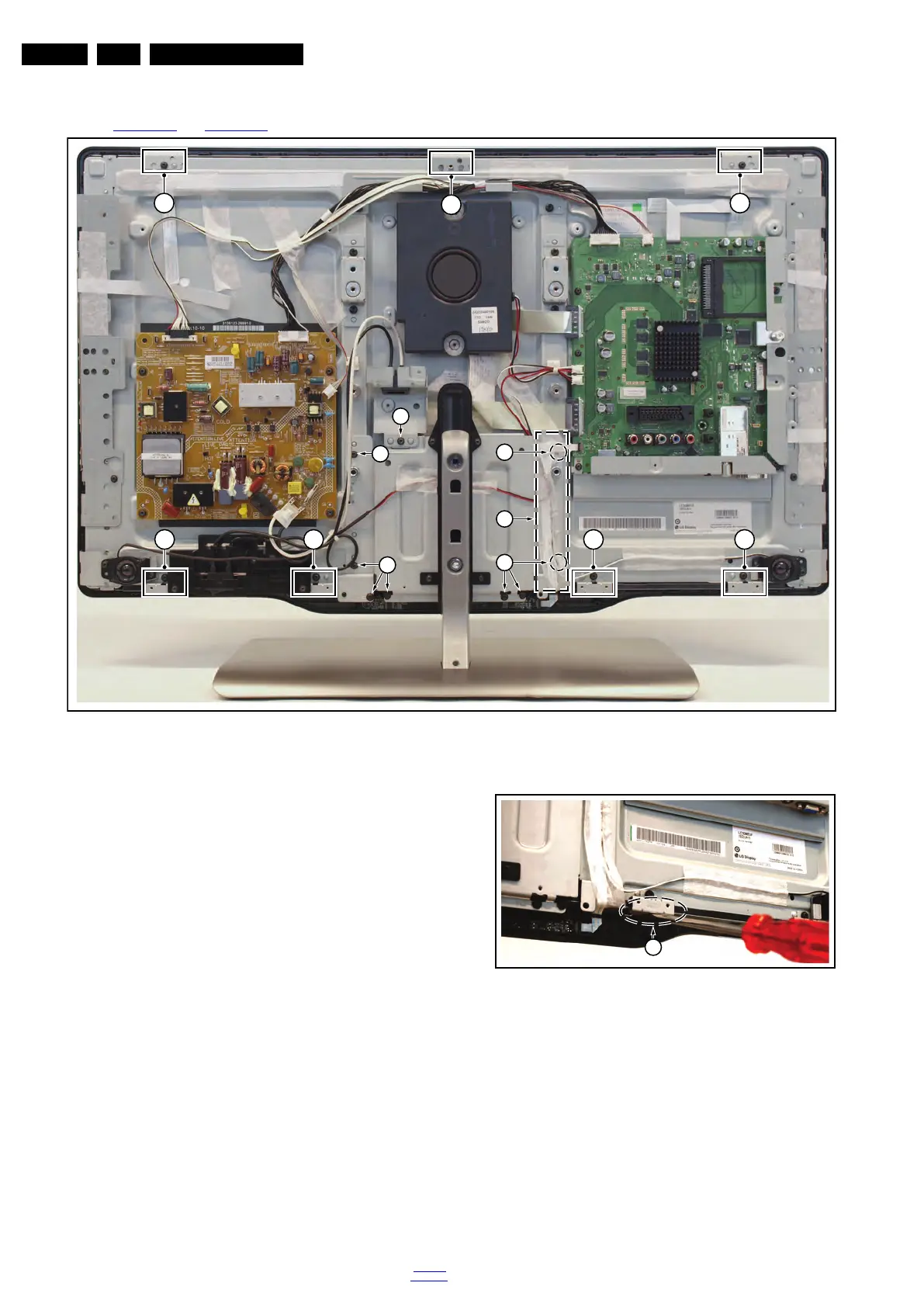

Figure 4-22 LCD panel [1/2]
1. Remove the SSB as described earlier.
2. Remove the PSU as described earlier.
3. Remove the tweeters with their subframes and subwoofer
as described earlier.
4. Remove the stand and -support as described earlier.
5. Remove the cables [1].
6. Remove the stand subframe [2].
7. Remove the mains switch subframe [3].
8. Remove the Ambilight units together with their subframes
as described earlier.
9. Unplug the connector from the keyboard control-, and IR &
LED board as described earlier.
10. Remove all remaining cables and subframes.
11. Use a screwdriver to release the clamps [4] that secure the
panel and take the panel out.
Remove the clamps from the panel before sending the panel in
for Service.
Figure 4-23 LCD panel [2/2]
19100_055_110216.eps
110216
4
4
4 4 4 4
4
2
2
2
2
2
1
19100_056_110217.eps
110217
4
