10.3 Connecting the FL MGUARD SMART2

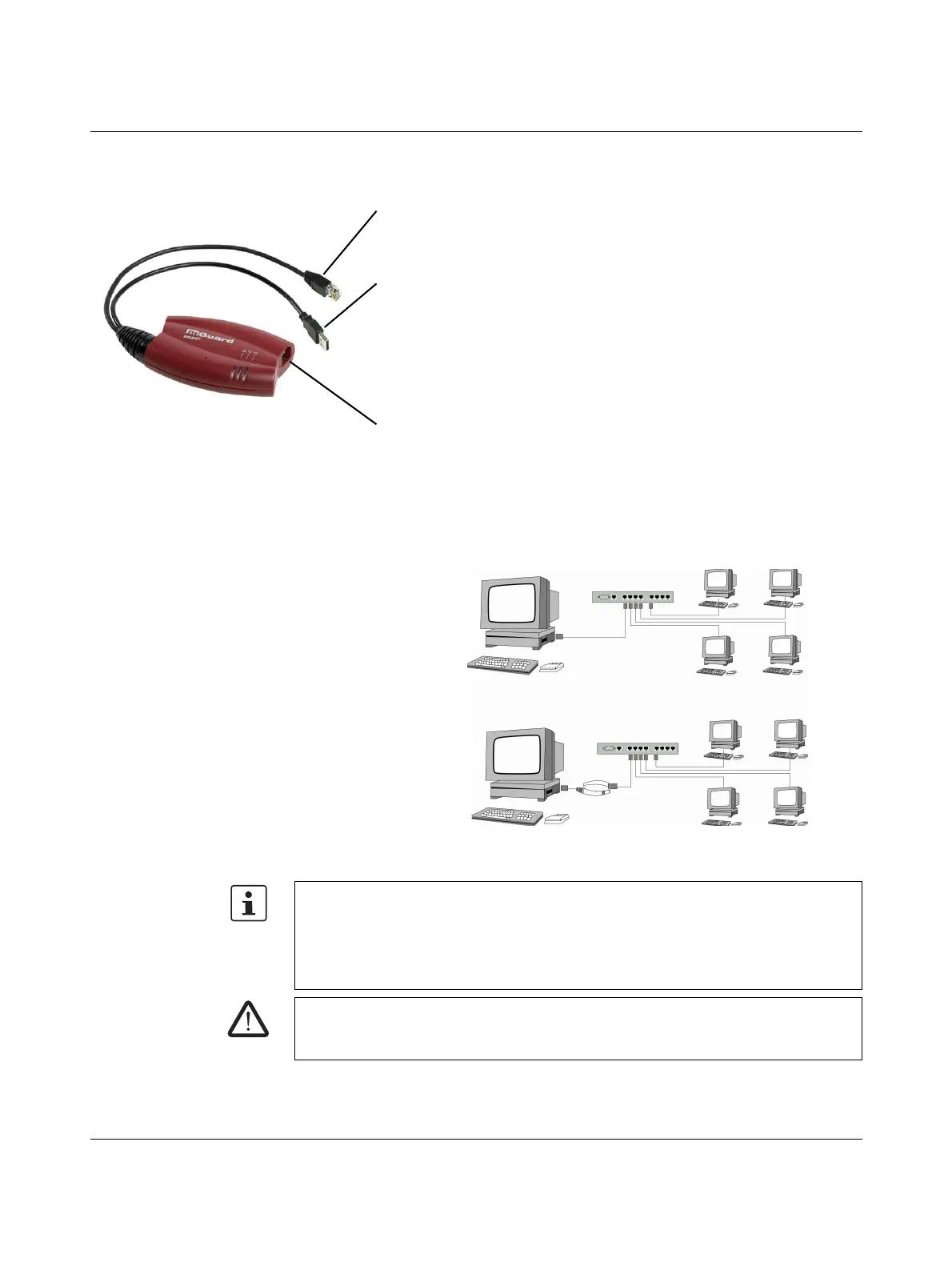

Figure 10-3 FL MGUARD SMART2: Connection in the network
LAN port
Ethernet plug for direct connection to the device or network to be protected
(local device or network).
USB plug
For connection to the USB interface of a computer.
For the power supply (default settings).
The FL MGUARD SMART2 (not the FL MGUARD SMART) can be config-
ured so that a serial console is available via the USB plug.
WAN port
Socket for connection to the external network, e.g., WAN, Internet. (Con-
nections to the remote device or network are established via this network.)
Use a UTP cable (CAT5).
Before:
After:
(A LAN can also be
on the left.)
If your computer is already connected to a network, insert the FL MGUARD SMART2 be-
tween the network interface of the computer (i.e., its network card) and the network.
Driver installation is not required.
For security reasons, we recommend you change the default root and administrator pass-
words during initial configuration.
WARNING: This is a Class A item of equipment. This equipment can cause radio interfer-
ence in residential areas; in this case, the operator may be required to implement appro-
priate measures.
