TC MGUARD RS4000/RS2000 3G
62
PHOENIX CONTACT 105656_en_05
3.3.4 Antennas
To establish a mobile communication connection, a matching antenna must be connected
to the devices.
We recommend combined mobile phone GPS antenna with omnidirectional characteristic,
antenna cable with SMA round plug (GSM/UMTS) and R-SMA round plug
(TC ANT MOBILE/GPS, 2903590 from Phoenix Contact).
In the case of the TC MGUARD RS2000 3G, the WAN is only available via the mobile net-
work, as a WAN interface is not available. The mobile network function is preset. The
TC MGUARD RS2000 3G can only be operated in Router mode.
Connecting antennas

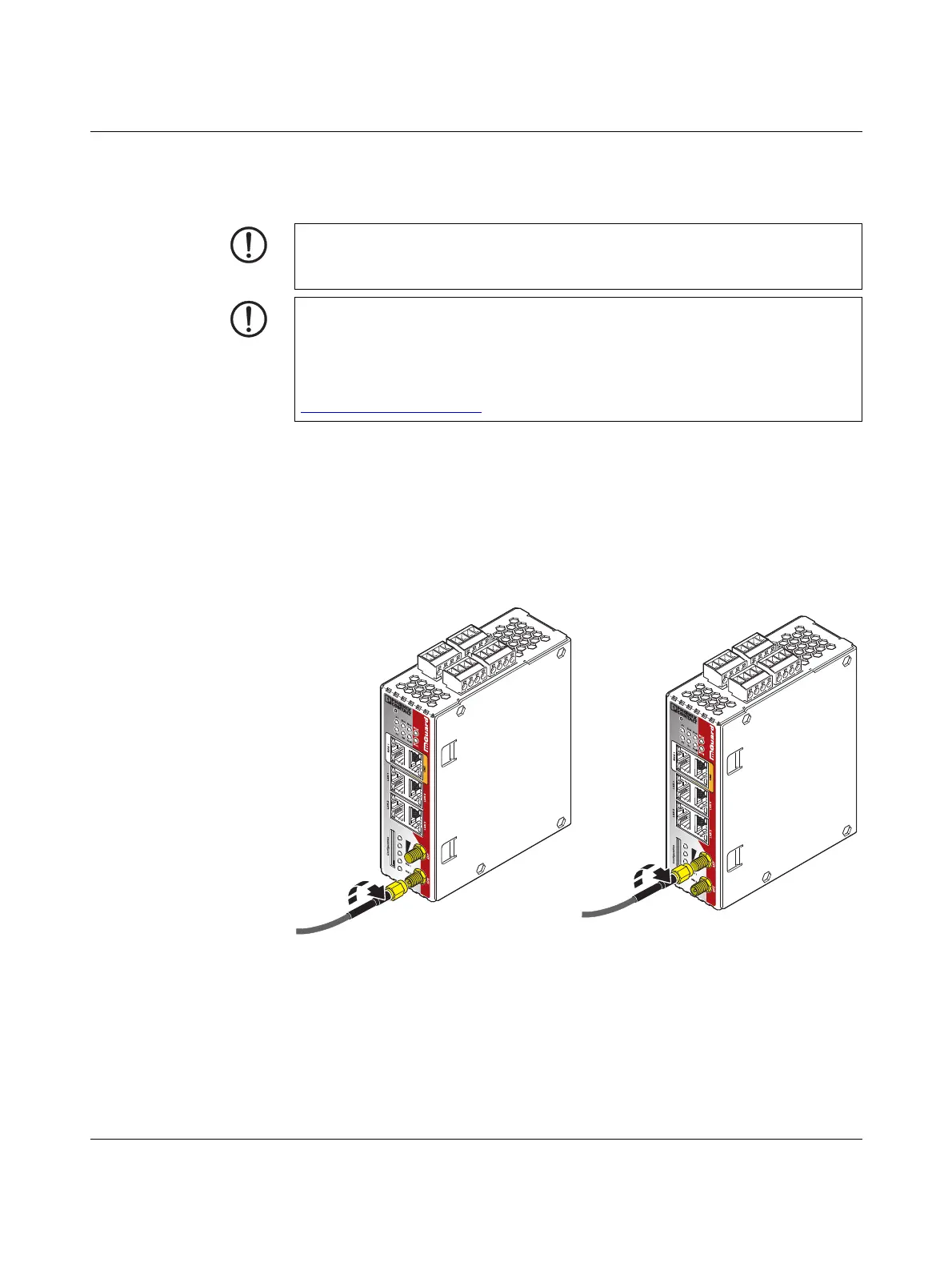

Figure 3-5 Antenna connection
• Connect a suitable antenna to the antenna connection.
Antenna connection
– SMA for mobile communication (ANT)
–RSMA (GPS)
• If the bar graph indicates good or very good reception, affix the antenna (see “Bar
graph” on page 57).
NOTE: Health effects due to RF radiation
A distance of at least 20 cm between persons and the antennas must be maintained
during normal operation.
NOTE: Removing operator permissions
Operation of the wireless system is only permitted with accessories supplied by
Phoenix Contact. The use of other accessory components may invalidate the operating
license.
You can find the approved accessories for this wireless system listed with the product at:
phoenixcontact.net/products.
