1. INTRODUCTION
The NOCTURN XL (see Figure 1) is a rugged low light camera module that features high-definition
resolution, high sensitivity and high dynamic range with low power consumption. Powered by
PHOTONIS’ 1 inch optical format 1280×1024 pixel (SXGA) Lynx CMOS sensor, the NOCTURN
provides real-time imaging capabilities (from daylight to one quarter moon scene illumination) in the
visible and near infrared spectrum. Its small size, weight and power (SWaP) make this camera module
ideal for integration into aerial, mobile and hand-held surveillance systems.
With its 9.7µm×9.7µm pixel pitch and 4e- median read noise, the NOCTURN provides unsurpassed
signal to noise at low light with video rates up to 100 frames per second. Leveraging PHOTONIS
expertise in night vision imaging, the NOCTURN electronics incorporates a multitude of functions to
enhance the low light level performance. This camera features automatic gain control (AGC), automatic
exposure control (AEC), high dynamic range (HDR), non-uniformity correction (NUC) and advanced
image enhancement, allowing the NOCTURN to provide continuous situational awareness without
compromising mobility and SWaP. The “XL” version of the NOCTURN has both a CameraLink®
compatible 10-bit digital video output as well as PAL/NTSC analog video output.

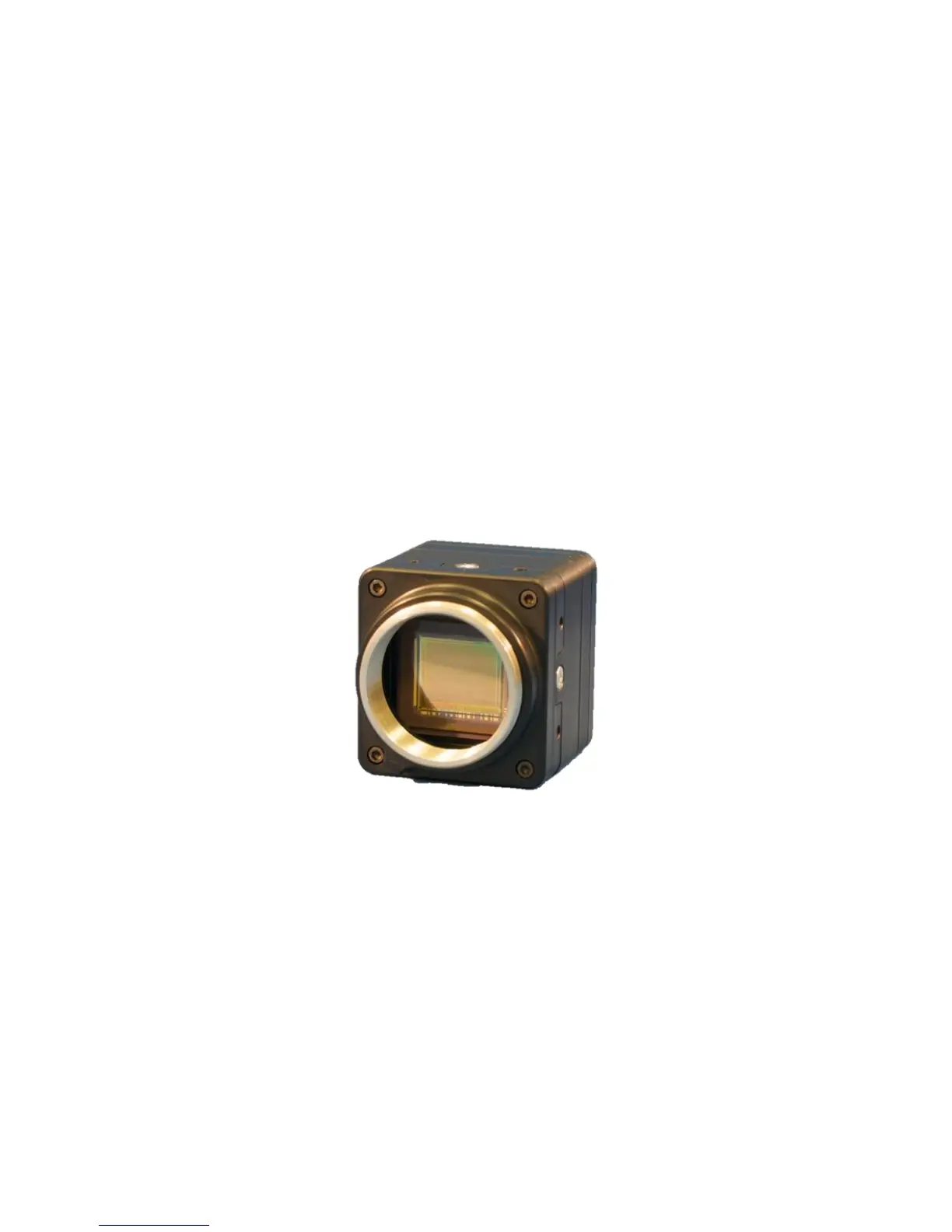

Figure 1 Front View of the NOCTURN XL Camera
This user reference guide provides a detailed overview of the interfaces, functionality and operation of
the NOCTURN camera. Please contact PHOTONIS technical support if you require additional
information or details that are not covered in this guide.
2. CONFIGURATION
The “XL” model indicates that the NOCTURN camera has an integrated interface board that can be
used to output digital video over a Camera Link® compatible interface as well as NTSC/PAL composite
video. The back panel of this NOCTURN configuration is shown in Figure 2.
