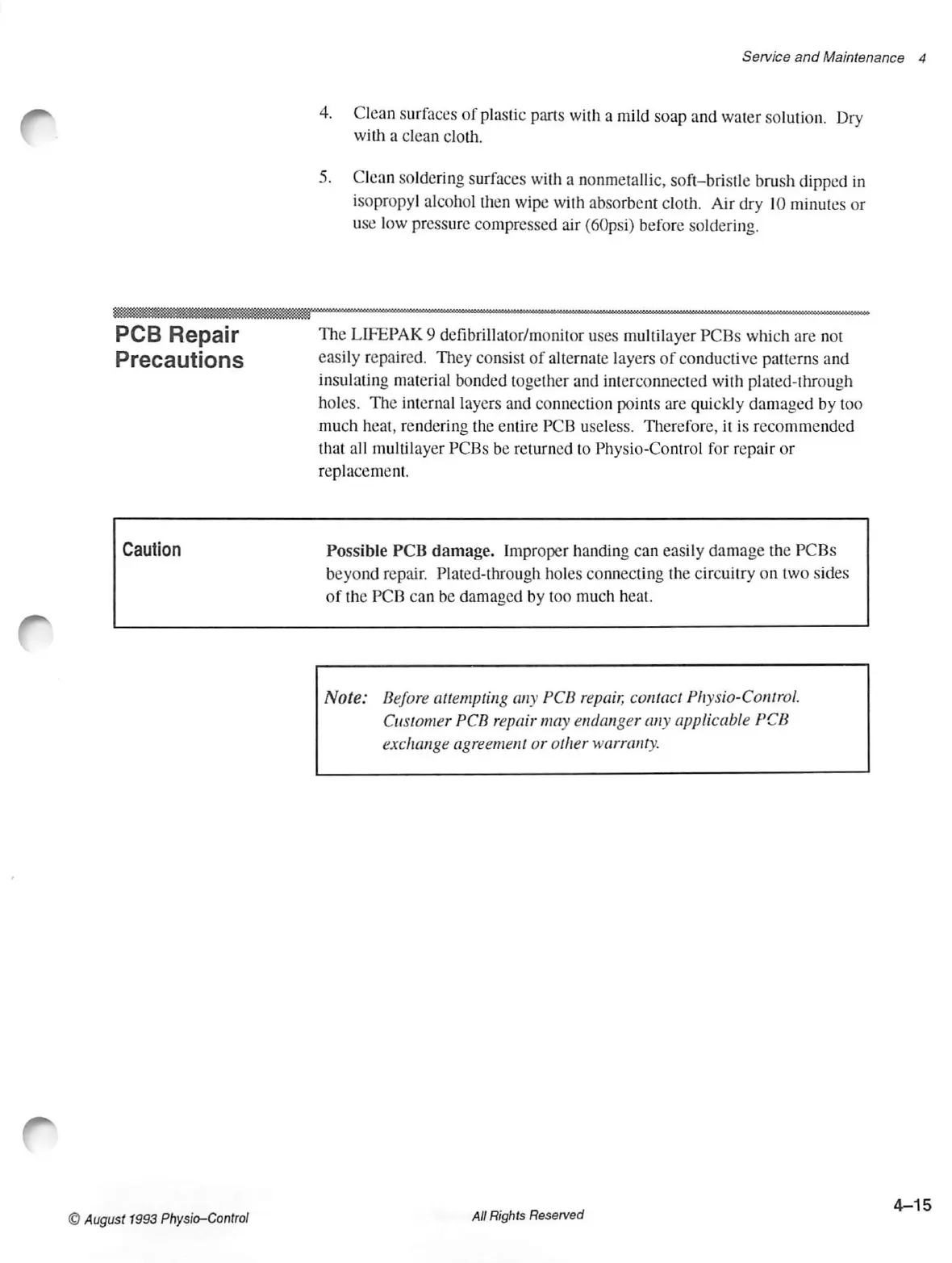

PCB Repair
Precautions
Service and Maintenance 4
4.
Clean
surfaces
of
plastic
parts
with
a
mild
soap
and
water
solution.
Dry
with
a
clean
cloth.
5.
Clean
soldering
surfaces
with
a
nonmetallic,
soft-bristle
brush
dipped
in
isopropyl
alcohol
then
wipe
with
absorbent
cloth.
Air
dry
10
minutes
or
use
low
pressure
compressed
air
(60psi)
before
soldering.
The LIFEPAK 9 defibrillator/monitor uses multilayer PCBs which are not
easily repaired. They consist of alternate layers of conductive patterns and
insulating material bonded together and interconnected with plated-through
holes. The internal layers and connection points are quickly damaged by too
much heat, rendering the entire PCB useless. Therefore, it is recommended
that all multilayer PCBs be returned to Physio-Control for repair or
replacement.
Caution Possible PCB damage. Improper handing can easily damage the PCBs
beyond repair. Plated-through holes connecting the circuitry on two sides
of the PCB can be damaged by too much heat.
© August 1993 Physio-Control
Note: Before attempting any PCB repair, contact Physio-Control.
Customer PCB repair may endanger any applicable PCB
exchange agreement or other warranty.
All Rights Reserved
4-15
