Physio Control LIFEPAK 9 - Configuration Information

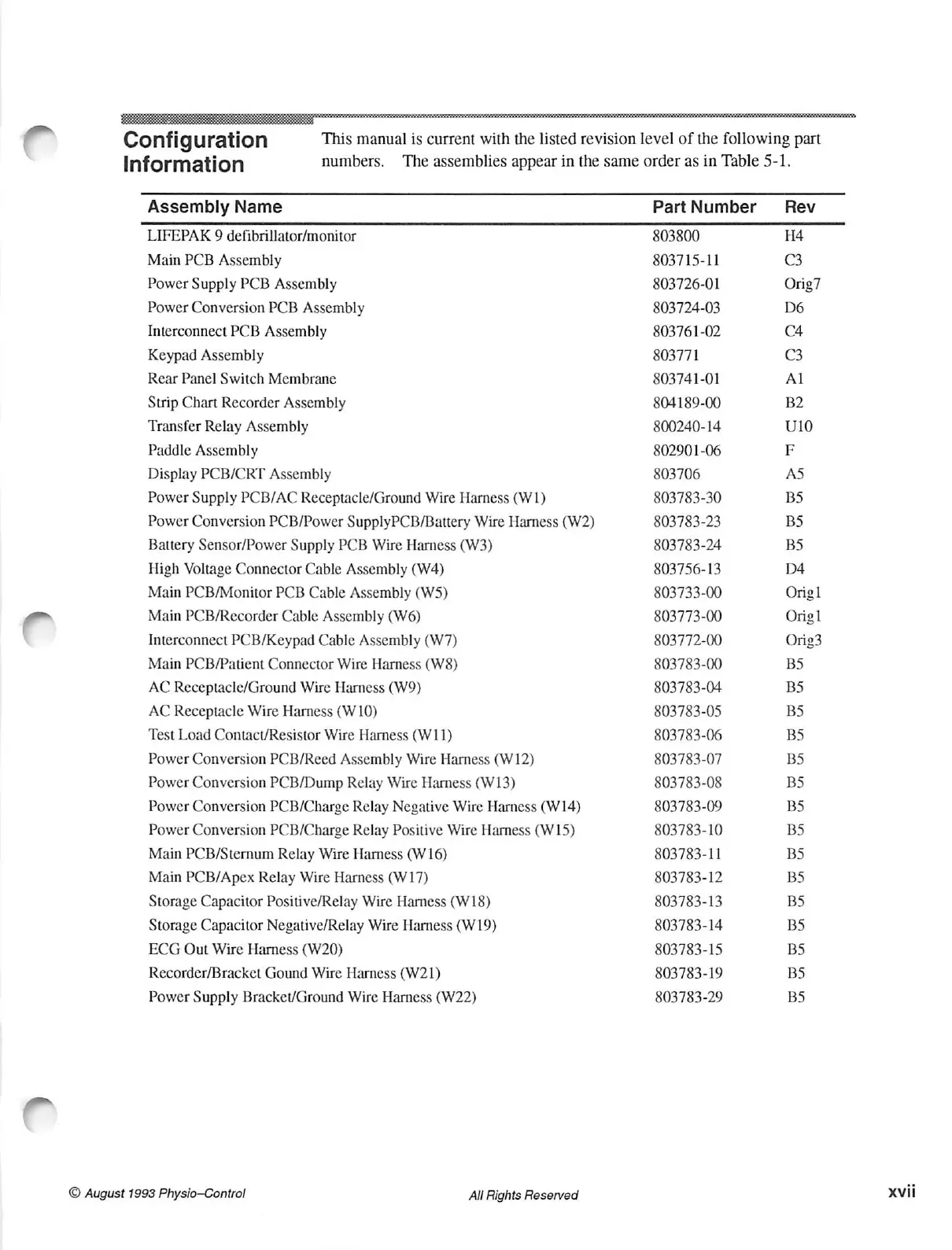

Configuration This manual is current with the listed revision level of the following part
Information numbers. The assemblies appear in the same order as in Table 5-1.
Assembly Name PartNumber Rev
LIFEPAK 9 defibrillator/monitor 803800 H4
Main PCB Assembly 803715-11 C3
Power Supply PCB Assembly 803726-01 Orig7
Power Conversion PCB Assembly 803724-03 D6
Interconnect PCB Assembly 803761-02 C4
Keypad Assembly 803771 C3
Rear Panel Switch Membrane 803741-01 Al
Strip Chart Recorder Assembly 804189-00 B2
Transfer Relay Assembly 800240-14 U10
Paddle Assembly 802901-06 F
Display PCB/CRT Assembly 803706 AS
Power Supply PCB/AC Receptacle/Ground Wire Harness (W1) 803783-30 BS
Power Conversion PCB/Power SupplyPCB/Battery Wire Harness (W2) 803783-23 BS
Battery Sensor/Power Supply PCB Wire Harness (W3) 803783-24 BS
High Voltage Connector Cable Assembly (W4) 803756-13 D4
Main PCB/Monitor PCB Cable Assembly (W5) 803733-00 Orig]
Main PCB/Recorder Cable Assembly (W6) 803773-00 Orig]
Interconnect PCB/Keypad Cable Assembly (W7) 803772-00 Orig3
Main PCB/Patient Connector Wire Harness (W8) 803783-00 BS
AC Receptacle/Ground Wire Harness (W9) 803783-04 BS
AC Receptacle Wire Harness (W 10) 803783-05 BS
Test Load Contact/Resistor Wire Harness (W11) 803783-06 BS
Power Conversion PCB/Reed Assembly Wire Harness (W12) 803783-07 BS
Power Conversion PCB/Dump Relay Wire Harness (W13) 803783-08 BS
Power Conversion PCB/Charge Relay Negative Wire Harness (W14) 803783-09 BS
Power Conversion PCB/Charge Relay Positive Wire Harness (W15) 803783-10 BS
Main PCB/Sternum Relay Wire Harness (W16) 803783-11 BS
Main PCB/Apex Relay Wire Harness (W17) 803783-12 BS
Storage Capacitor Positive/Relay Wire Harness (W18) 803783-13 BS
Storage Capacitor Negative/Relay Wire Harness (W19) 803783-14 BS
ECG Out Wire Harness (W20) 803783-15 BS
Recorder/Bracket Gound Wire Harness (W21) 803783-19 BS
Power Supply Bracket/Ground Wire Harness (W22) 803783-29 BS
©
