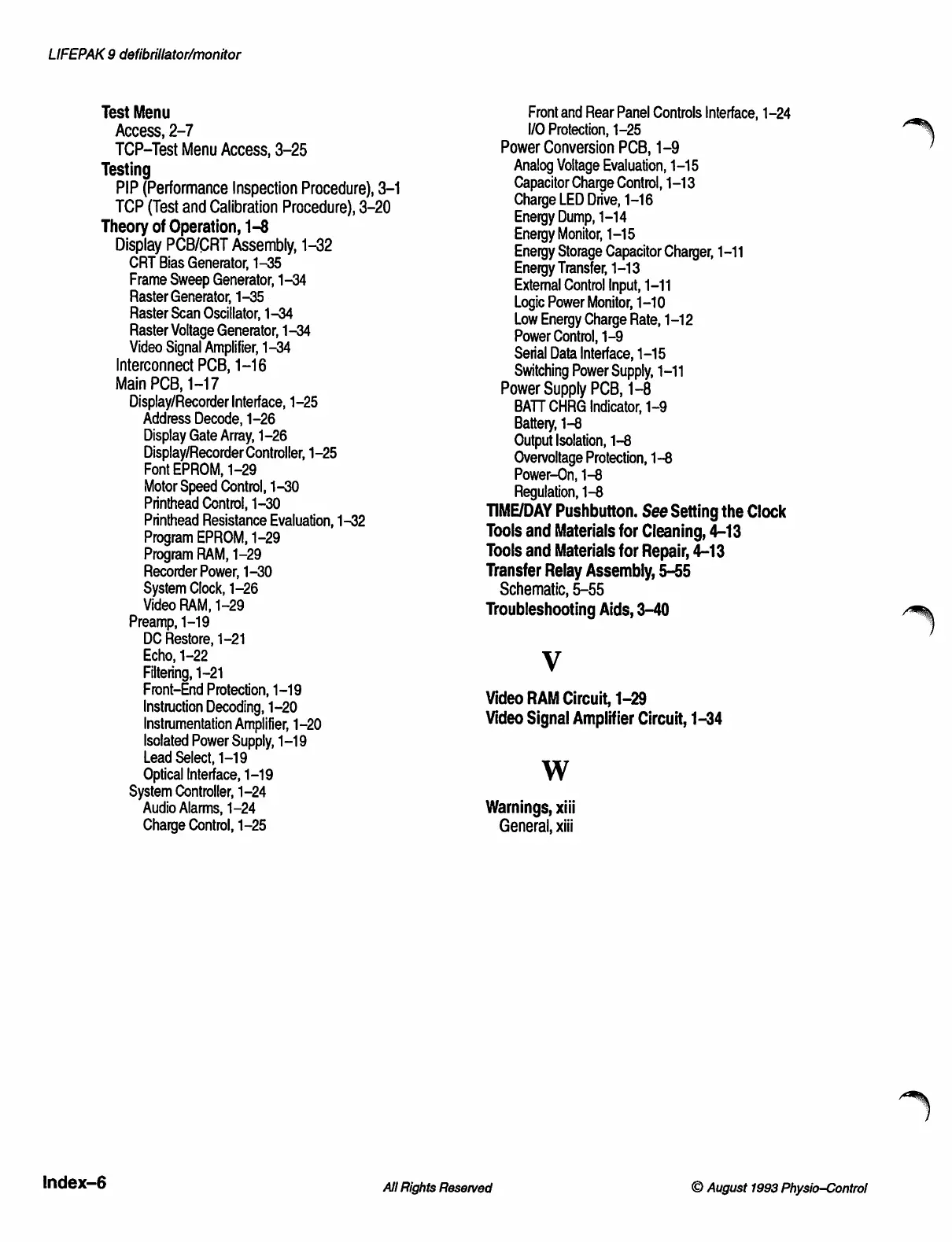

LIFEPAK 9 defibrillator/monitor
Test Menu
Access, 2-7
TCP-Test Menu Access, 3-25
Testing
PIP (Performance Inspection Procedure), 3-1
TCP (Test and Calibration Procedure), 3-20
Theory of Operation, 1-8
Display PCB/CRT Assembly, 1-32
CRT Bias Generator, 1-35
Frame Sweep Generator, 1-34
Raster Generator, 1-35
Raster Scan Oscillator, 1-34
Raster Voltage Generator, 1-34
Video Signal Amplifier, 1-34
Interconnect PCB, 1-16
Main PCB, 1-17
Display/Recorder Interface, 1-25
Address Decode, 1-26
Display Gate Array, 1-26
Display/Recorder Controller, 1-25
Font EPROM, 1-29
Motor Speed Control, 1-30
Printhead Control, 1-30
Printhead Resistance Evaluation, 1-32
Program EPROM, 1-29
Program RAM, 1-29
Recorder Power, 1-30
System Clock, 1-26
Video RAM, 1-29
Preamp, 1-19
DC Restore, 1-21
Echo, 1-22
Filtering, 1-21
Front-End Protection, 1-19
Instruction Decoding, 1-20
Instrumentation Amplifier, 1-20
Isolated Power Supply, 1-19
Lead Select, 1-19
Optical Interface, 1-19
System Controller, 1-24
Audio Alarms, 1-24
Charge Control, 1-25
Index-6
All
Rights
Reserved
Front and Rear Panel Controls Interface, 1-24
I/O Protection, 1-25
Power Conversion PCB, 1-9
Analog Voltage Evaluation, 1-15
Capacitor Charge Control, 1-13
Charge LED Drive, 1-16
Energy Dump, 1-14
Energy Monitor, 1-15
Energy Storage Capacitor Charger, 1-11
Energy Transfer, 1-13
External Control Input, 1-11
Logic Power Monitor, 1-10
Low Energy Charge Rate, 1-12
Power Control, 1-9
Serial Data Interface, 1-15
Switching Power Supply, 1-11
Power Supply PCB, 1-8
BATT CHRHG Indicator, 1-9
Battery, 1-8
Output Isolation, 1-8
Overvoltage Protection, 1-8
Power-On, 1-8
Regulation, 1-8
TIME/DAY Pushbutton. See Setting the Clock
Tools and Materials for Cleaning, 4-13
Tools and Materials for Repair, 4-13
Transfer Relay Assembly, 5-55
Schematic, 5-55
Troubleshooting Aids, 3-40
V
Video RAM Circuit, 1-29
Video Signal Amplifier Circuit, 1-34
W
Warnings, xiii
General, xiii
