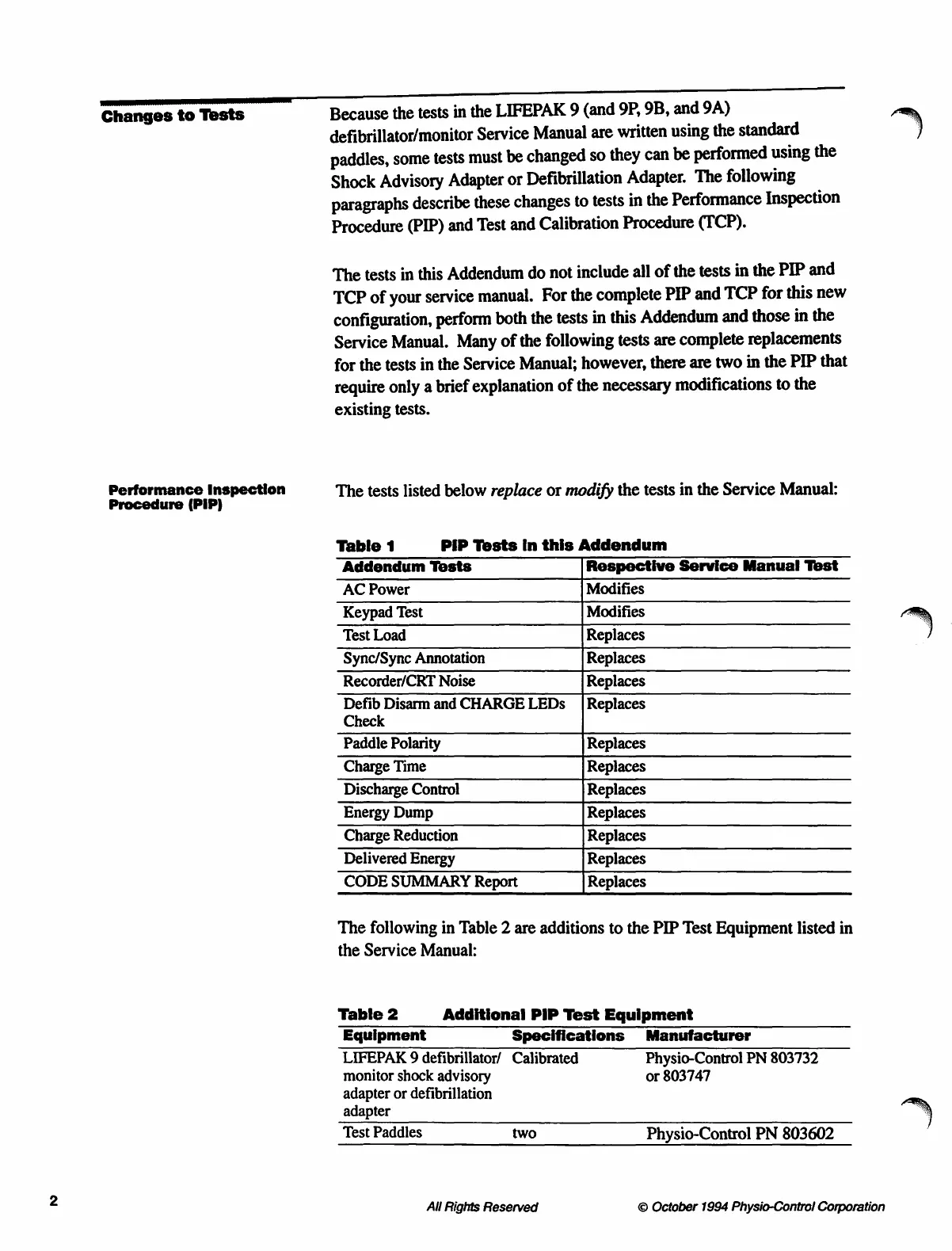

Changes
to
Tests
Because
the
tests
in
the
LIFEPAK
9
(and
9P,
9B,
and
9A)
defibrillator/monitor
Service
Manual
are
written
using
the
standard
paddles,
some
tests
must
be
changed
so
they
can
be
performed
using
the
Shock
Advisory
Adapter
or
Defibrillation
Adapter.
The
following
paragraphs
describe
these
changes
to
tests
in
the
Performance
Inspection
Procedure
(PIP)
and
Test
and
Calibration
Procedure
(TCP).
The
tests
in
this
Addendum
do
not
include
all
of
the
tests
in
the
PIP
and
TCP
of
your
service
manual.
For
the
complete
PIP
and
TCP
for
this
new
configuration,
perform
both
the
tests
in
this
Addendum
and
those
in
the
Service
Manual.
Many
of
the
following
tests
are
complete
replacements
for
the
tests
in
the
Service
Manual;
however,
there
are
two
in
the
PIP
that
require
only
a brief
explanation
of the
necessary
modifications
to
the
existing
tests.
Performance Inspection The tests listed below replace or modify the tests in the Service Manual:
Procedure (PiP)
Table 1 PIP Tests in this Addendum
Addendum Tests Respective Service Manual Test
AC Power Modifies
Keypad Test Modifies
Test Load Replaces
Sync/Sync Annotation Replaces
Recorder/CRT Noise Replaces
Defib Disarm and CHARGE LEDs |Replaces
Check
Paddle Polarity Replaces
Charge Time Replaces
Discharge Control Replaces
Energy Dump Replaces
Charge Reduction Replaces
Delivered Energy Replaces
CODE SUMMARY Report Replaces
The following in Table 2 are additions to the PIP Test Equipment listed in
the Service Manual:
Table 2 Additional PIP Test Equipment
Equipment Specifications Manufacturer
LIFEPAK 9 defibrillator/ Calibrated Physio-Control PN 803732
monitor shock advisory or 803747
adapter or defibrillation
adapter
Test Paddles two Physio-Control PN 803602
