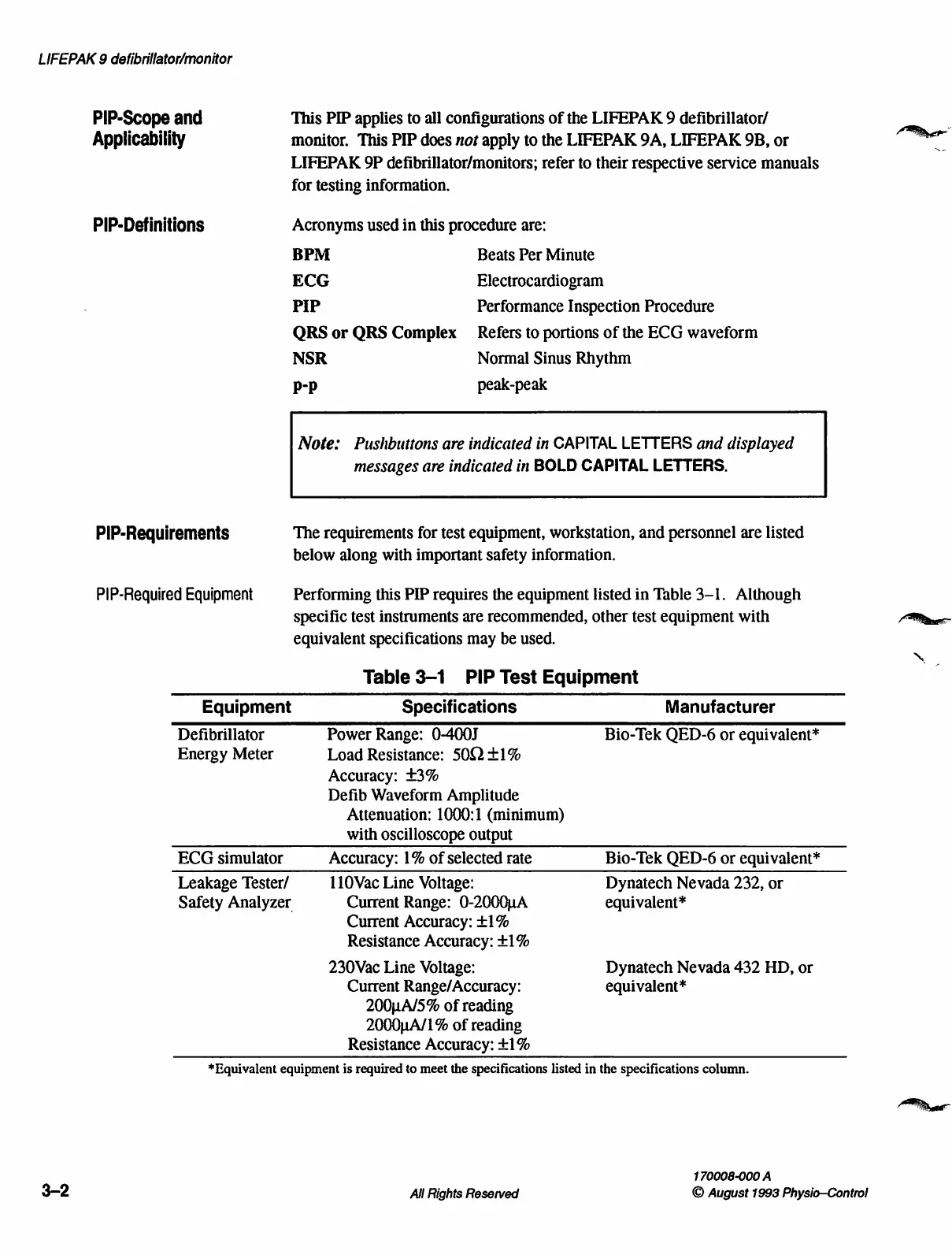

LIFEPAK 9 defibrillator/monitor
3-2
PIP-Scope and
Applicability
PIP-Definitions
This PIP applies to all configurations of the LIFEPAK 9 defibrillator/
monitor. This PIP does not apply to the LIFEPAK 9A, LIFEPAK 9B, or
LIFEPAK 9P defibrillator/monitors; refer to their respective service manuals
for testing information.
Acronyms used in this procedure are:
BPM Beats Per Minute
ECG Electrocardiogram
PIP Performance Inspection Procedure
QRS or QRS Complex Refers to portions of the ECG waveform
NSR Normal Sinus Rhythm
p-p peak-peak
Note: Pushbuttons are indicated in CAPITAL LETTERS and displayed
messages are indicated in BOLD CAPITAL LETTERS.
PIP-Requirements
PIP-Required Equipment
The requirements for test equipment, workstation, and personnel are listed
below along with important safety information,
Performing this PIP requires the equipment listed in Table 3-1. Although
specific test instruments are recommended, other test equipment with
equivalent specifications may be used.
Table 3-1 PIP Test Equipment
Equipment
Defibrillator
Energy Meter
ECG simulator
Leakage Tester/
Safety Analyzer
Specifications Manufacturer
Power Range: 0-400J Bio-Tek QED-6 or equivalent*
Load Resistance: 500 +1%
Accuracy: +3%
Defib Waveform Amplitude
Attenuation: 1000:1 (minimum)
with oscilloscope output
Accuracy: 1% of selected rate Bio-Tek QED-6 or equivalent*
110Vac Line Voltage: Dynatech Nevada 232, or
Current Range: 0-2000uA equivalent*
Current Accuracy: +1%
Resistance Accuracy: +1%
230Vac Line Voltage: Dynatech Nevada 432 HD, or
Current Range/Accuracy: equivalent*
2001A/5% of reading
2000uA/1% of reading
Resistance Accuracy: +1%
*Equivalent equipment is required to meet the specifications listed in the specifications column.
170008-000 A
All Rights Reserved © August 1993 Physio—Control
