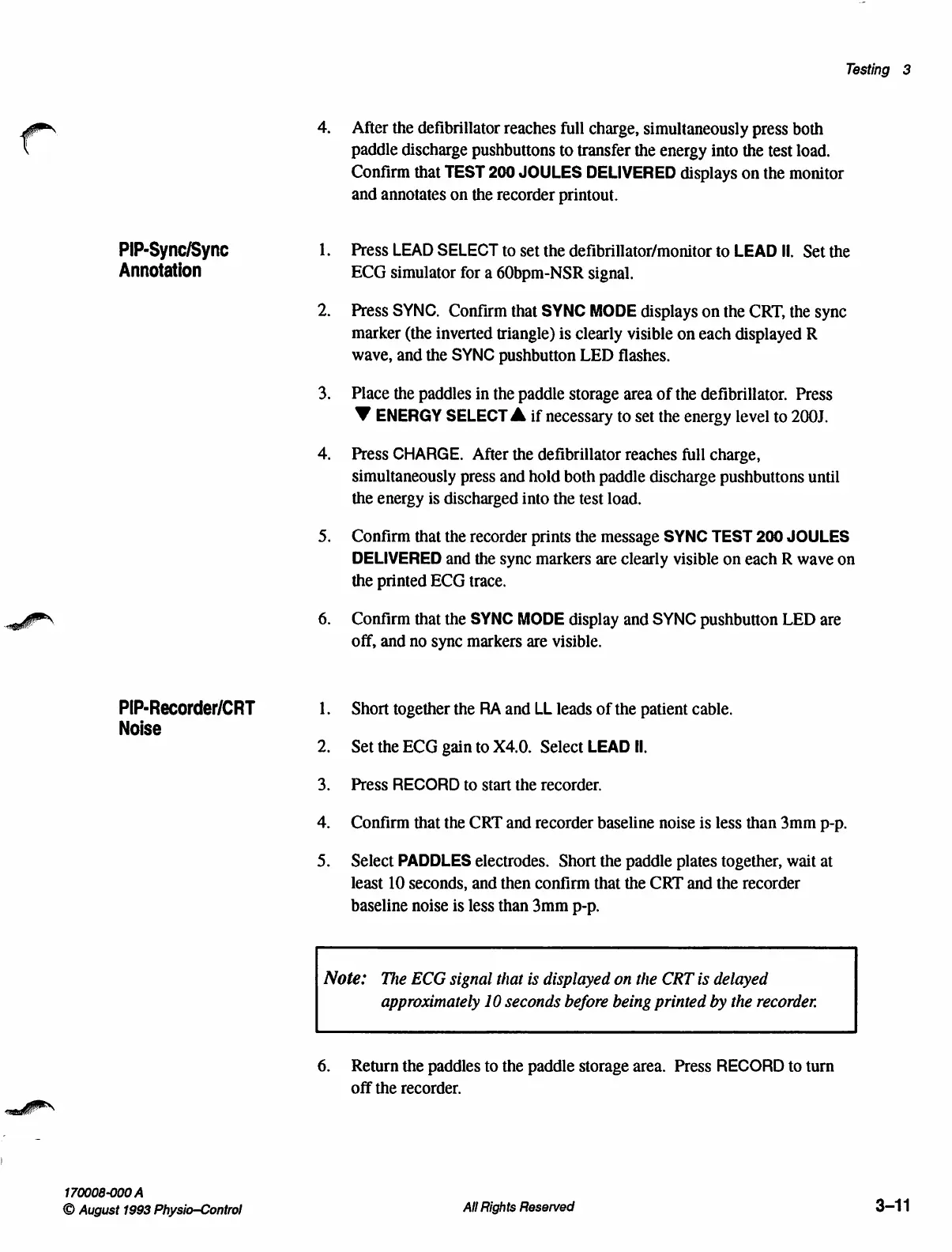

Testing 3
X 4. After the defibrillator reaches full charge, simultaneously press both
(© paddle discharge pushbuttons to transfer the energy into the test load.
Confirm that TEST 200 JOULES DELIVERED displays on the monitor
and annotates on the recorder printout.
PIP-Sync/Sync 1. Press LEAD SELECT to set the defibrillator/monitor to LEAD Il. Set the
Annotation ECG simulator for a 60bpm-NSR signal.
2. Press SYNC. Confirm that SYNC MODE displays on the CRT, the sync
marker (the inverted triangle) is clearly visible on each displayed R
wave, and the SYNC pushbutton LED flashes.
3. Place the paddles in the paddle storage area of the defibrillator. Press
V ENERGY SELECT A if necessary to set the energy level to 200J.
4, Press CHARGE. After the defibrillator reaches full charge,
Simultaneously press and hold both paddle discharge pushbuttons until
the
energy is discharged into the test load.
5. Confirm that the recorder prints the message SYNC TEST 200 JOULES
DELIVERED and the sync markers are clearly visible on each R wave on
the printed ECG trace.
6. Confirm that the SYNC MODE display and SYNC pushbutton LED are
off, and no sync markers are visible.
PIP-Recorder/CRT 1. Short together the RA and LL leads of the patient cable.
Noise
2. Set the ECG gain to X4.0. Select LEAD II.
3. Press RECORD to start the recorder.
4. Confirm that the CRT and recorder baseline noise is less than 3mm p-p.
5. Select PADDLES electrodes. Short the paddle plates together, wait at
least 10 seconds, and then confirm that the CRT and the recorder
baseline noise is less than 3mm p-p.
Note: The ECG signal that is displayed on the CRT is delayed
approximately 10 seconds before being printed by the recorder.
6. Return the paddles to the paddle storage area. Press RECORD to turn
off the recorder.
