LIFEPAK 9 defibrillator/monitor
PIP-Leakage Current Check leakage current in accordance with the following standards:
AAMI/ANSI (Association for the Advancement of Medical Instrumentation/ Br
American National Standards Institute) ES1-1985, AAMI/ANSI DF2-1989,
CSA (Canadian Standards Association) C22.2, IEC (International
Electrotechnical Commission) 601-1, IEC 601-2-4, and UL (Underwriters
Laboratories) 544.
Because of the wide variety of Safety Analyzers that may be used for these
tests, specific instructions are not provided in this PIP. Refer to your Safety
Analyzer operator’s manual for instructions about configuring and
performing these tests. The maximum allowable leakage current is
summarized in Table 3-3 for 120Vac, 60Hz, and in Table 3-4 for 230Vac,
50Hz. When measuring ground resistance for the leakage current tests,
connect the ohmmeter between the rear panel ground stud and the ground pin
on the ac power connector as shown in Figure 3-7.
( N
GROUND STUD
) € ) reer OHMMETER
CD CD ーー
o
©) еж.
GROUND PIN
DEFIBRILLATOR/MONITOR REAR PANEL

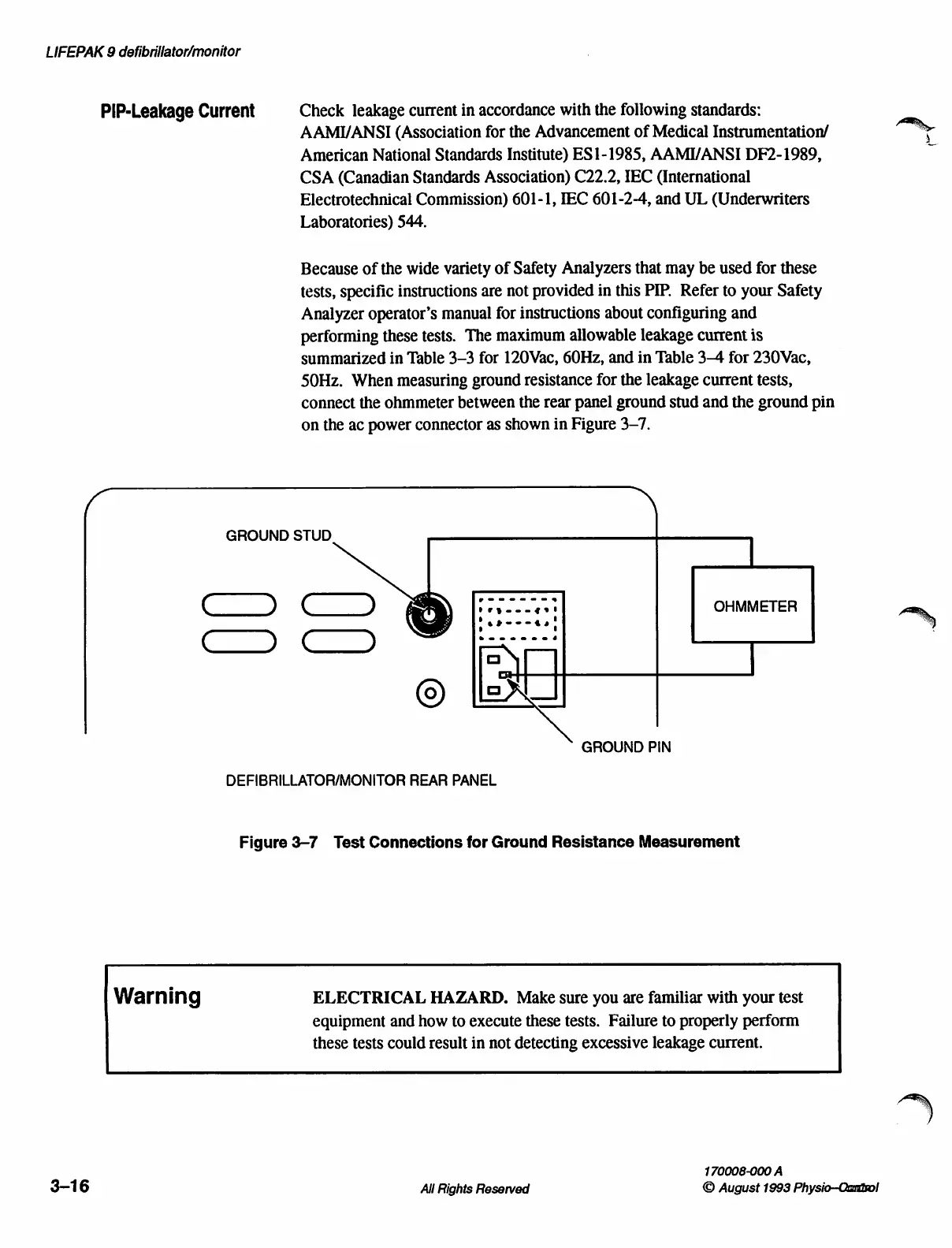

Figure 3-7 Test Connections for Ground Resistance Measurement
Warning ELECTRICAL HAZARD. Make sure you are familiar with your test
equipment and how to execute these tests. Failure to properly perform
these tests could result in not detecting excessive leakage current.
