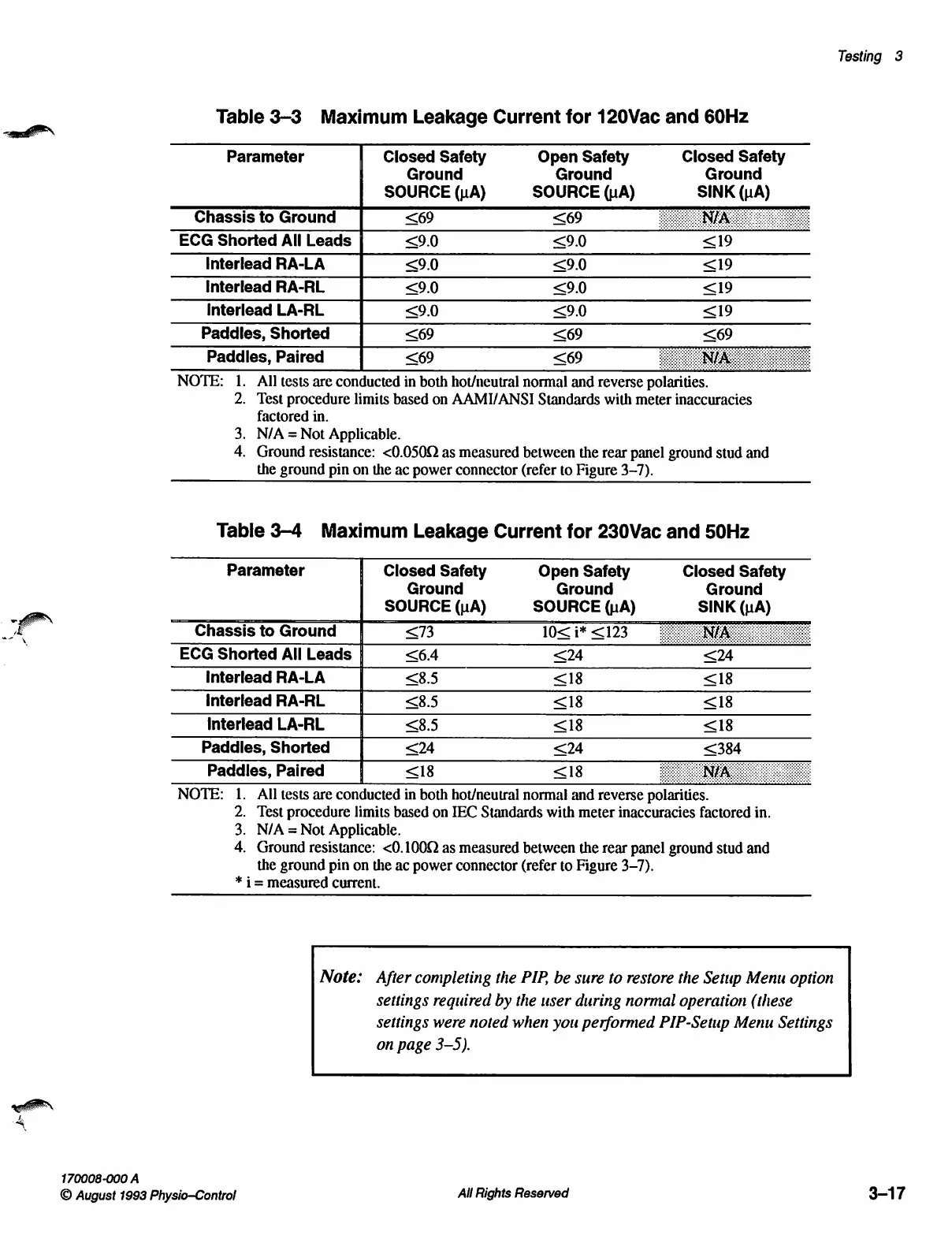

Physio Control LIFEPAK 9 - Page 74

Testing 3
Table 3-3 Maximum Leakage Current for 120Vac and 60Hz
Parameter Closed Safety Open Safety Closed Safety
Ground Ground Ground
SOURCE (1A) SOURCE (uA) SINK (uA)
Chassis to Ground <69 <69 : NE
ECG Shorted All Leads <9.0 <9.0 <19
Interlead RA-LA <9.0 <9.0 <19
Interlead RA-RL <9.0 <9.0 <19
Interlead LA-RL <9.0 <9.0 <19
Paddles, Shorted <69 <69 <69
Paddles, Paired <69 <69 ONE
NOTE: 1. All tests are conducted in both hot/neutral normal and reverse polarities.
2. Test procedure limits based on AAMI/ANSI Standards with meter inaccuracies
factored in.
3. N/A=Not Applicable.
4. Ground resistance: <0.050Q as measured between the rear panel ground stud and
the ground pin on the ac power connector (refer to Figure 3-7).
Table 3-4 Maximum Leakage Current for 230Vac and 50Hz
Parameter Closed Safety Open Safety Closed Safety
Ground Ground Ground
SOURCE (uA) SOURCE (uA) SINK (uA)
Chassis to Ground <73 10< i* <123
ECG Shorted All Leads <6.4 <24
interlead RA-LA <8.5 <18
interlead RA-RL <8.5 <18
Interlead LA-RL <8.5 <18
Paddles, Shorted <24 <24
Paddles, Paired <18 <18
NOTE: 1. All tests are conducted in both hot/neutral normal and reverse polarities.
2. Test procedure limits based on IEC Standards with meter inaccuracies factored in.
3. N/A=Not Applicable.
4. Ground resistance: <0.100Q as measured between the rear panel ground stud and
the ground pin on the ac power connector (refer to Figure 3-7).
* i= measured current.
Note: After completing the PIP, be sure to restore the Setup Menu option
settings required by the user during normal operation (these
settings were noted when you performed PIP-Setup Menu Settings
on page 3-5).
