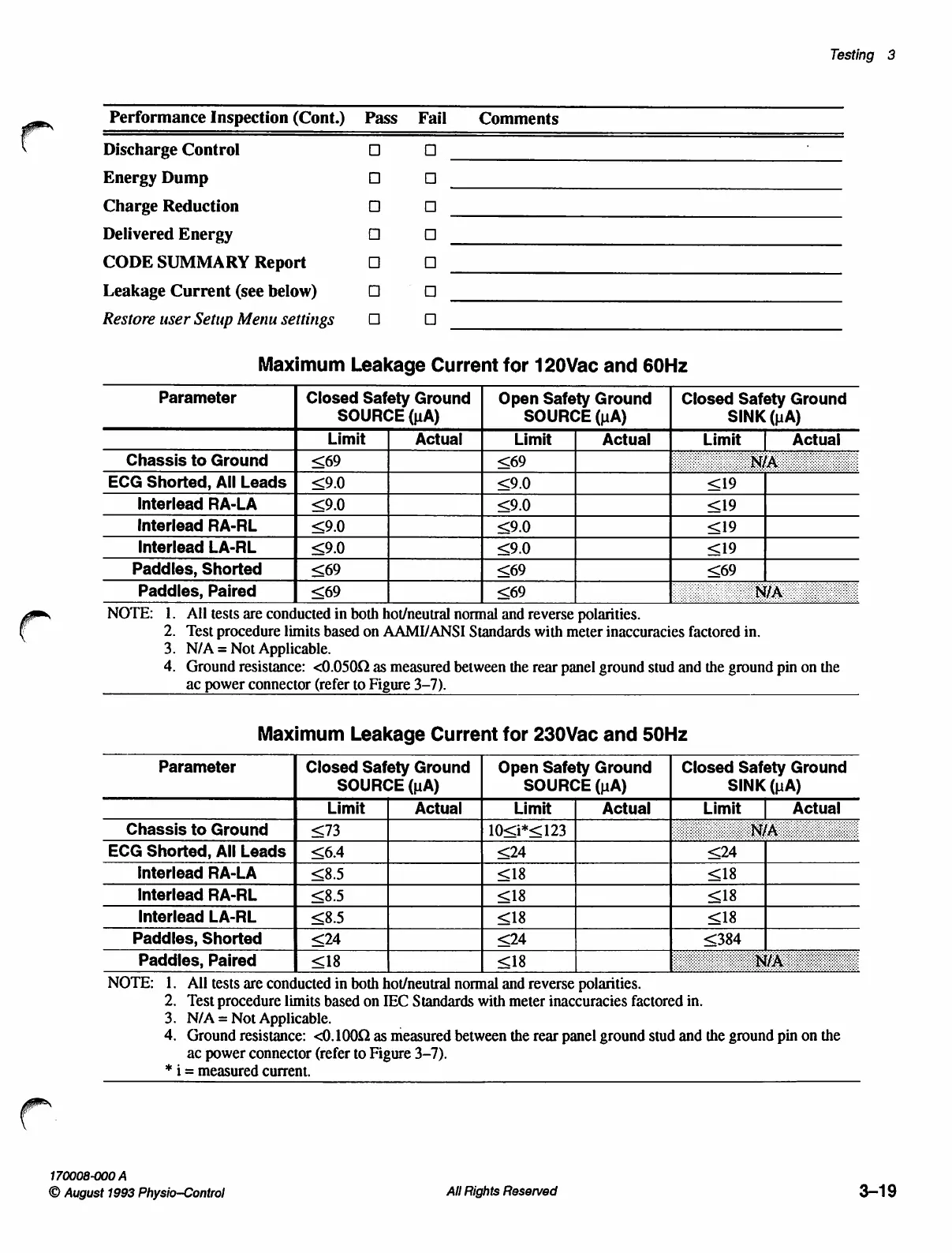

Physio Control LIFEPAK 9 - Page 76

Testing 3
Fail
口
Performance Inspection (Cont.) Pass
Discharge Control
Comments
Energy Dump
Charge Reduction
Delivered Energy
CODE SUMMARY Report
Leakage Current (see below)
0000005065
口
ロ
ロロ
ロロ
Restore user Setup Menu settings
Maximum Leakage Current for 120Vac and 60Hz
Parameter Closed Safety Ground | Open Safety Ground | Closed Safety Ground
SOURCE (uA) SOURCE (uA) SINK (uA)
Limit Actual Limit Actual Limit | Actual
Chassis to Ground <69 <69
ECG Shorted, All Leads | <9.0 <9.0
Interlead RA-LA <9.0 <9.0
Interlead RA-RL <9.0 <9.0
Interlead LA-RL <9.0 <9.0
Paddles, Shorted <69 <69
Paddles,
Paired <69 <69
NOTE: 1.
All tests are conducted in both hot/neutral normal and reverse polarities.
2. Test procedure limits based on AAMI/ANSI Standards with meter inaccuracies factored in.
3. N/A=Not Applicable.
4. Ground resistance: <0.050Q as measured between the rear panel ground stud and the ground pin on the
ac power connector (refer to Figure 3-7).
Maximum Leakage Current for 230Vac and 50Hz
Parameter Closed Safety Ground | Open Safety Ground | Closed Safety Ground
SOURCE (uA) SOURCE (uA) SINK (uA)
Limit Actual Limit Actual Limit | Actual
Chassis to Ground <73 10<i*<123
ECG Shorted, All Leads | <64 <24 <24
Interlead RA-LA <8.5 <18 <18
Interlead RA-RL <8.5 <18 <18
Interlead LA-RL <8.5 <18 <18
Paddles, Shorted <24 <24 <384
Paddles, Paired <18 <18
NOTE: 1. All tests are conducted in both hot/neutral normal and reverse polarities.
2. Test procedure limits based on IEC Standards with meter inaccuracies factored in.
3. N/A = Not Applicable.
4. Ground resistance: <0.100 as measured between the rear panel ground stud and the ground pin on the
ac power connector (refer to Figure 3-7).
* 1 = measured current.
170008-000 A
O August 1993 Physio-Control
All Rights Reserved
3-19
