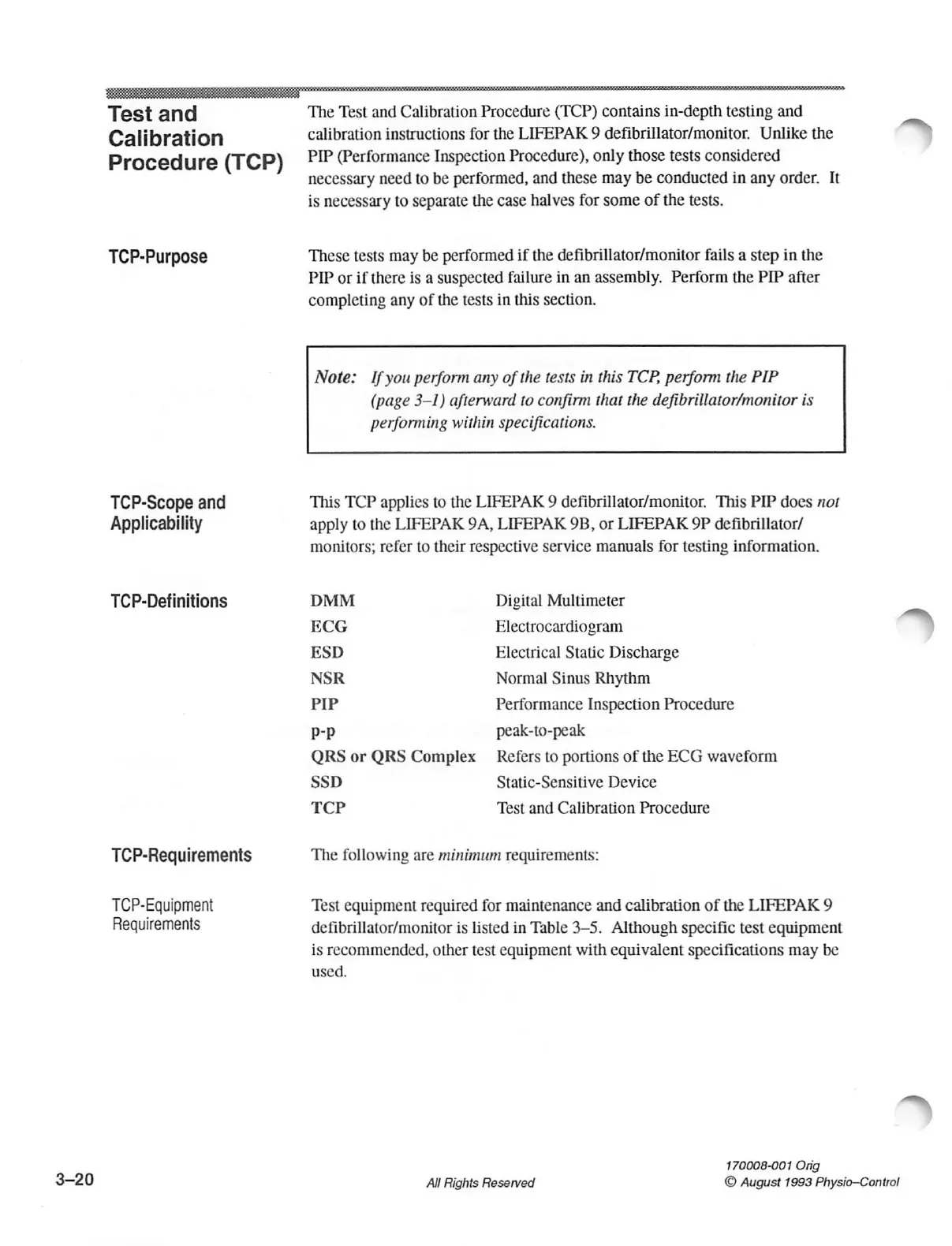

Physio Control LIFEPAK 9 - Functional Test and Calibration Procedures

Test and The Test and Calibration Procedure (TCP) contains in-depth testing and
Calibration calibration instructions for the LIFEPAK 9 defibrillator/monitor. Unlike the
Procedure (TCP) PIP (Performance Inspection Procedure), only those tests considered
necessary need to be performed, and these may be conducted in any order. It
is necessary to separate the case halves for some of the tests.
TCP-Purpose
These
tests
may
be
performed
if
the
defibrillator/monitor
fails
a
step
in
the
PIP
or
if
there
is
a
suspected
failure
in
an
assembly.
Perform
the
PIP
after
completing
any
of
the
tests
in
this
section.
Note: If you perform any of the tests in this TCP, perform the PIP
(page 3-1) afterward to confirm that the defibrillator/monitor is
performing within specifications.
TCP-Scope and This TCP applies to the LIFEPAK 9 defibrillator/monitor. This PIP does not
Applicability apply to the LIFEPAK 9A, LIFEPAK 9B, or LIFEPAK 9P defibrillator/
monitors; refer to their respective service manuals for testing information.
TCP-Definitions DMM Digital Multimeter
ECG Electrocardiogram
ESD Electrical Static Discharge
NSR Normal Sinus Rhythm
PIP Performance Inspection Procedure
p-p peak-to-peak
QRS or QRS Complex _ Refers to portions of the ECG waveform
SSD Static-Sensitive Device
TCP Test and Calibration Procedure
TCP-Requirements The following are minimum requirements:
TCP-Equipment Test equipment required for maintenance and calibration of the LIFEPAK 9
Requirements defibrillator/monitor is listed in Table 3-5. Although specific test equipment
is recommended, other test equipment with equivalent specifications may be
used.
170008-001 Orig
3-20 All Rights Reserved © August 1993 Physio-Control
