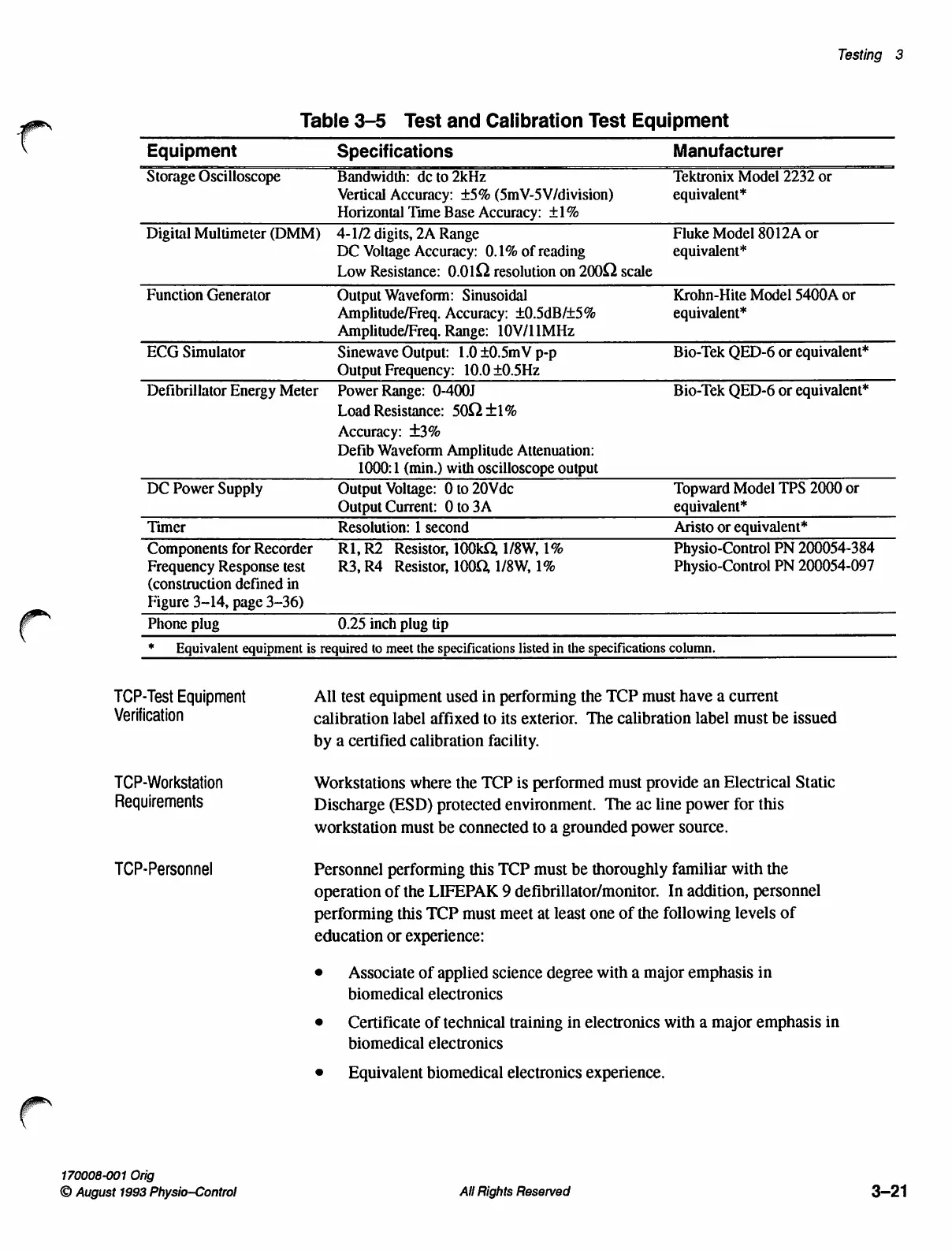

Physio Control LIFEPAK 9 - Page 78

Testing 3
Table 3-5 Test and Calibration Test Equipment
Equipment Specifications Manufacturer
Storage Oscilloscope Bandwidth: dc to 2kHz Tektronix Model 2232 or
Vertical Accuracy: +5% (SmV-5V/division) equivalent*
Horizontal Time Base Accuracy: +1%
Digital Multimeter (DMM) 4-1/2 digits, 2A Range Fluke Model 8012A or
DC Voltage Accuracy: 0.1% of reading equivalent*
Low Resistance: 0.01Q2 resolution on 200Q scale
Function Generator Output Waveform: Sinusoidal Krohn-Hite Model 5400A or
Amplitude/Freq. Accuracy: +0.5dB/+5% equivalent*
Amplitude/Freq. Range: 10V/11MHz
ECG Simulator Sinewave Output: 1.0 +0.5mV p-p Bio-Tek QED-6 or equivalent*
Defibrillator Energy Mete
r
Output Frequency: 10.0 +0.5Hz
Power Range: 0-400J
Load Resistance: 5002 +1%
Accuracy: +3%
Defib Waveform Amplitude Attenuation:
1000:1 (min.) with oscilloscope output
Bio-Tek QED-6 or equivalent*
DC Power Supply Output Voltage: 0 to 20Vdc Topward Model TPS 2000 or
Output Current: 0 to 3A equivalent*
Timer Resolution: 1 second Aristo or equivalent*
Components for Recorder R1,R2 Resistor, 100kQ, 1/8W, 1% Physio-Control PN 200054-384
Freguency Response test R3,R4 Resistor, 100Q, 1/8W, 1% Physio-Control PN 200054-097
(construction defined in
Figure 3-14, page 3-36)
Phone plug 0.25 inch plug tip
* Equivalent equipment is required to meet the specifications listed in the specifications column.
TCP-Test Equipment
Verification
TCP-Workstation
Requirements
TCP-Personnel
170008-001 Orig
© August 1993 Physio-Control
All test equipment used in performing the TCP must have a current
calibration label affixed to its exterior. The calibration label must be issued
by a certified calibration facility.
Workstations where the TCP is performed must provide an Electrical Static
Discharge (ESD) protected environment. The ac line power for this
workstation must be connected to a grounded power source.
Personnel performing this TCP must be thoroughly familiar with the
operation of the LIFEPAK 9 defibrillator/monitor. In addition, personnel
performing this TCP must meet at least one of the following levels of
education or experience:
Associate of applied science degree with a major emphasis in
biomedical electronics
Certificate of technical training in electronics with a major emphasis in
biomedical electronics
Equivalent biomedical electronics experience.
All Rights Reserved
3-21
