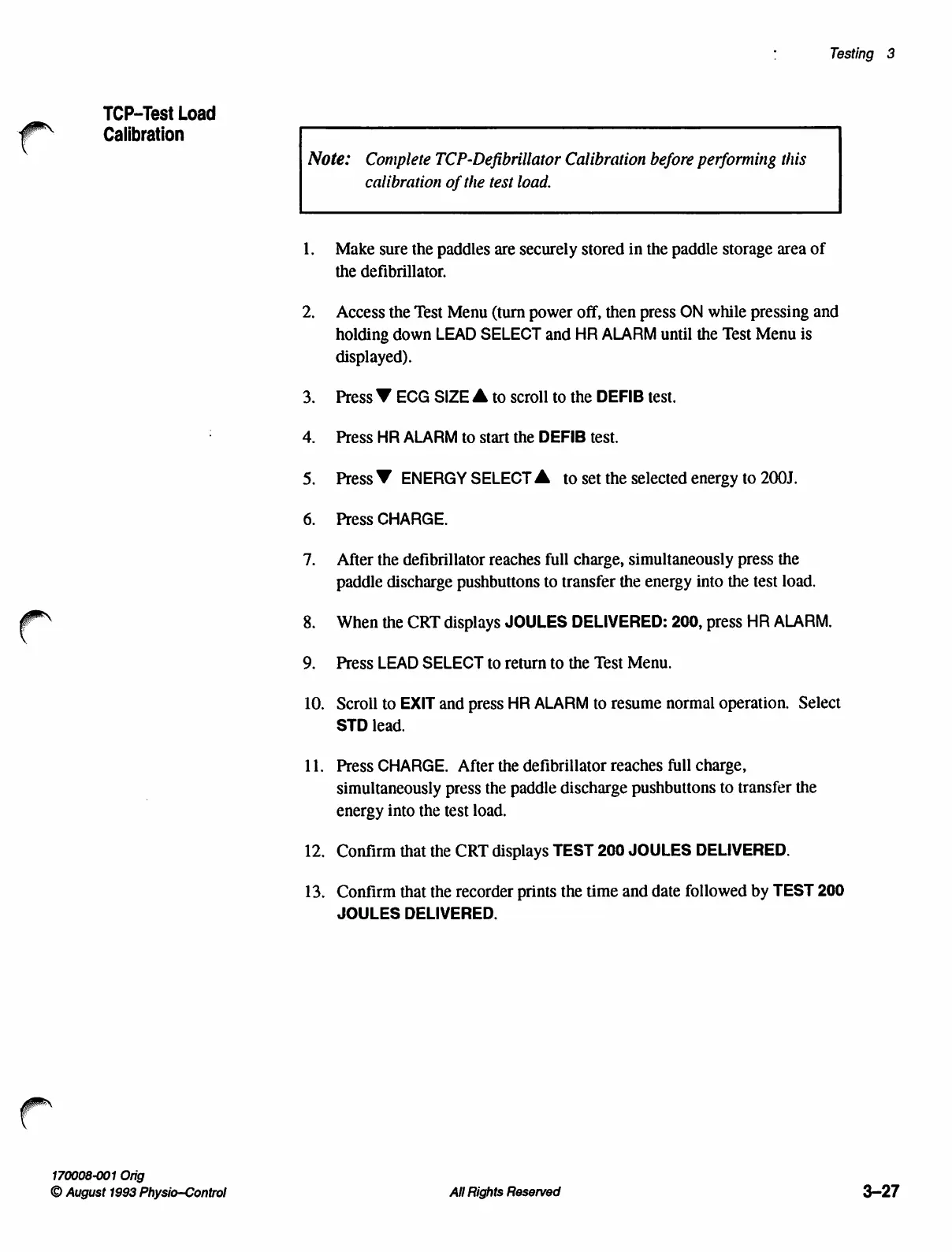

TCP-Test Load
Testing 3
Calibration
Note: Complete TCP-Defibrillator Calibration before performing this
calibration of the test load.
10.
11.
12.
13.
170008-001 Orig
© August 1993 Physio—Control
Make sure the paddles are securely stored in the paddle storage area of
the defibrillator.
Access the Test Menu (turn power off, then press ON while pressing and
holding down LEAD SELECT and HR ALARM until the Test Menu is
displayed).
Press Y ECG SIZE À to scroll to the DEFIB test.
Press HR ALARM to start the DEFIB test.
Press W ENERGY SELECT A to set the selected energy to 200].
Press CHARGE.
After the defibrillator reaches full charge, simultaneously press the
paddle discharge pushbuttons to transfer the energy into the test load.
When the CRT displays JOULES DELIVERED: 200, press HR ALARM.
Press LEAD SELECT to return to the Test Menu.
Scroll to EXIT and press HR ALARM to resume normal operation. Select
STD lead.
Press CHARGE. After the defibrillator reaches full charge,
simultaneously press the paddle discharge pushbuttons to transfer the
energy into the test load.
Confirm that the CRT displays TEST 200 JOULES DELIVERED.
Confirm that the recorder prints the time and date followed by TEST 200
JOULES DELIVERED.
All Rights Reserved 3-27
