10.
11.
12.
13.
14.
E 15
16.
17.
18.
19.
170008-001 Orig
O August 1993 Physio—Control

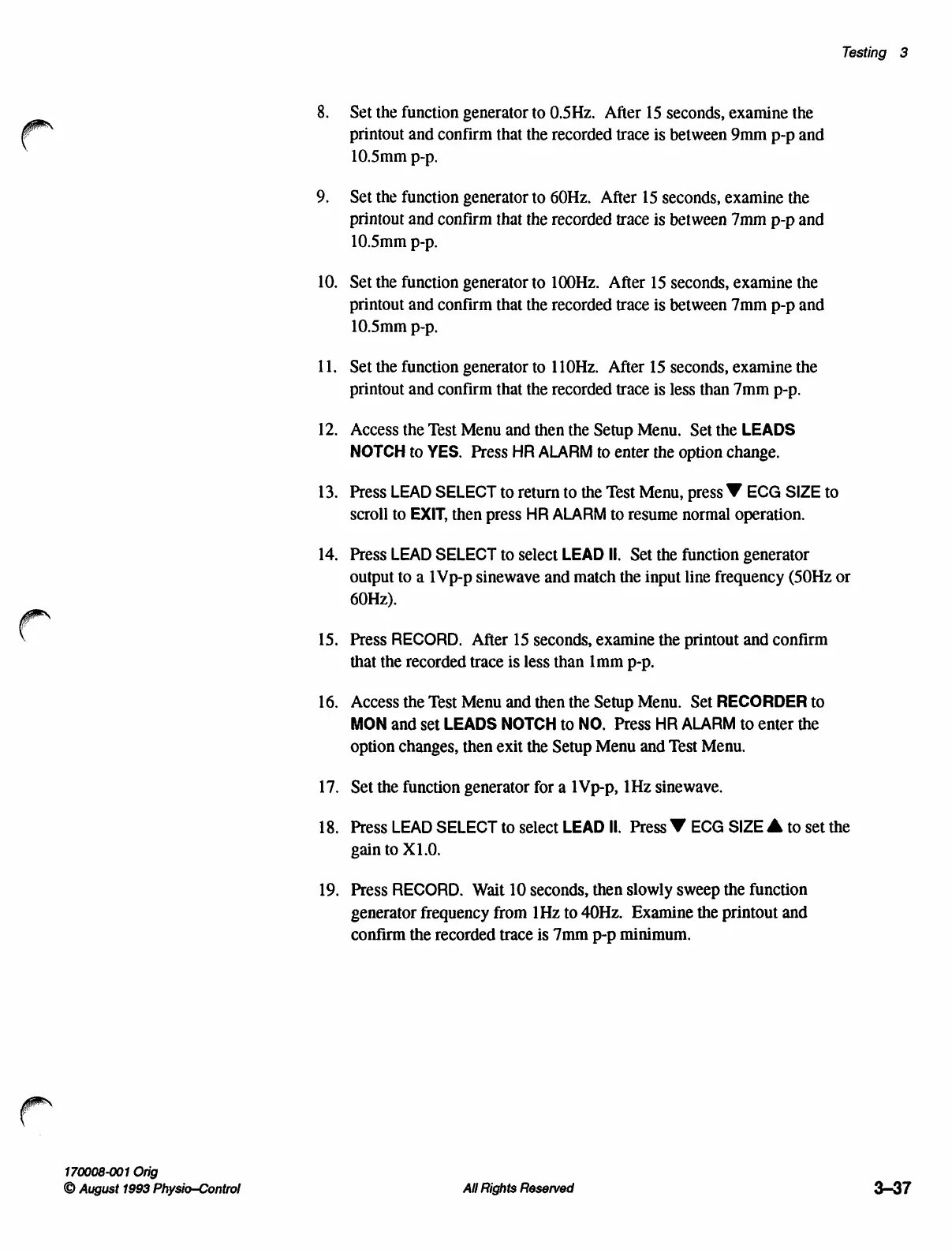

Testing 3
Set the function generator to 0.5Hz. After 15 seconds, examine the
printout and confirm that the recorded trace is between 9mm p-p and
10.5mm p-p.
Set the function generator to 60Hz. After 15 seconds, examine the
printout and confirm that the recorded trace is between 7mm p-p and
10.5mm p-p.
Set the function generator to 100Hz. After 15 seconds, examine the
printout and confirm that the recorded trace is between 7mm p-p and
10.Smm p-p.
Set the function generator to 110Hz. After 15 seconds, examine the
printout and confirm that the recorded trace is less than 7mm p-p.
Access the Test Menu and then the Setup Menu. Set the LEADS
NOTCH to YES. Press HR ALARM to enter the option change.
Press LEAD SELECT to return to the Test Menu, press W ECG SIZE to
scroli to EXIT, then press HR ALARM to resume normal operation.
Press LEAD SELECT to select LEAD Il. Set the function generator
output to a 1Vp-p sinewave and match the input line frequency (50Hz or
60Hz).
. Press RECORD. After 15 seconds, examine the printout and confirm
that the recorded trace is less than Imm p-p.
Access the Test Menu and then the Setup Menu. Set RECORDER to
MON and set LEADS NOTCH to NO. Press HR ALARM to enter the
option changes, then exit the Setup Menu and Test Menu.
Set the function generator for a 1Vp-p, 1Hz sinewave.
Press LEAD SELECT to select LEAD Il. Press W ECG SIZE A to set the
gain to X1.0.
Press RECORD. Wait 10 seconds, then slowly sweep the function
generator frequency from 1Hz to 40Hz. Examine the printout and
confirm the recorded trace is 7mm p-p minimum.
All Rights Reserved 3-37
