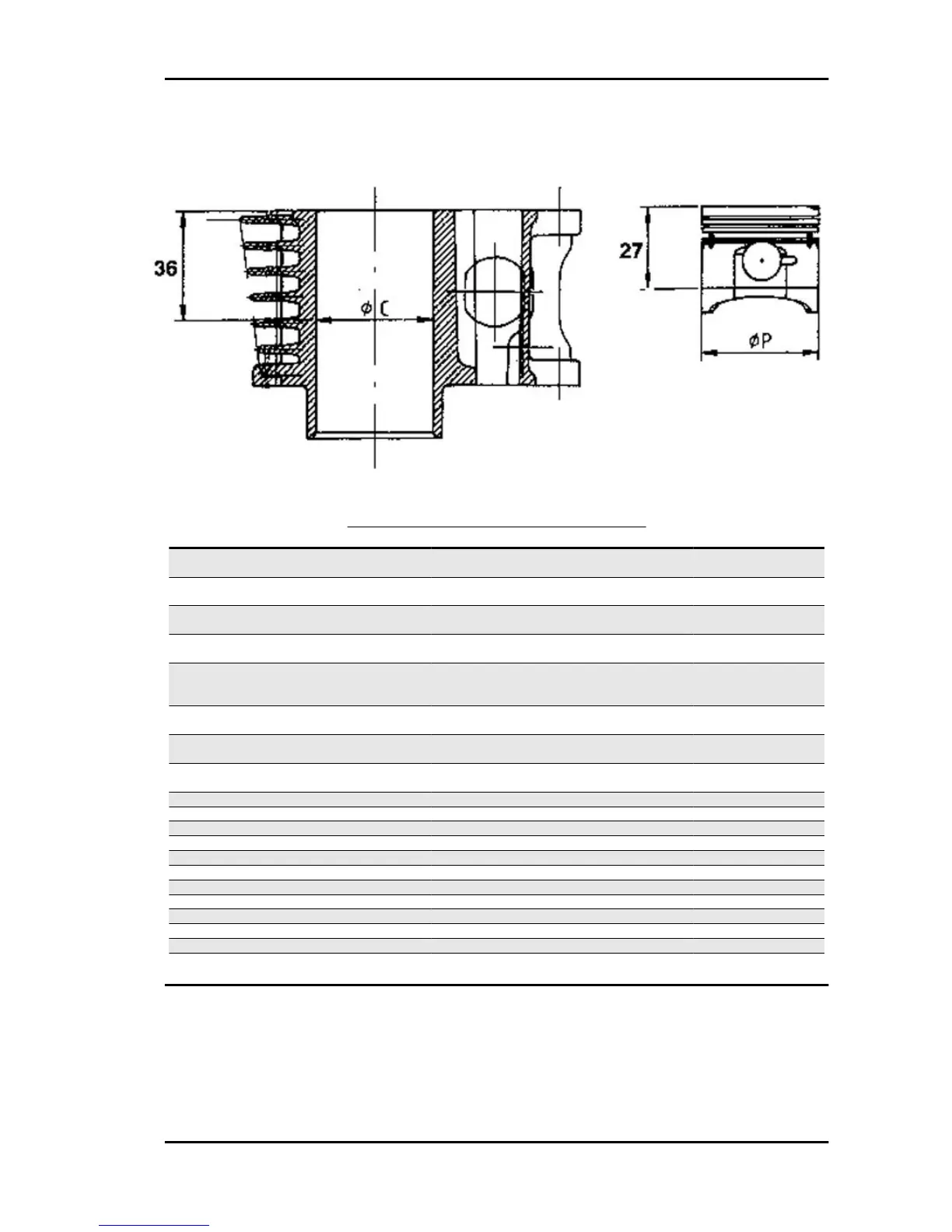

Cylinder - piston assy.
CONNECTION PISTON AND CYLINDER
Name
Initials Cylinder Piston Play on fitting
Cylinder (with asso pis-
ton/right way)
A 38,993 ÷ 39,000 38,954 ÷ 38,961 0.032 ÷ 0.046
Cylinder (with shiram
piston)
A 38,993 ÷ 39,000 38,949 ÷ 38,956 0.037 ÷ 0.051
Cylinder (with asso pis-
ton/right way)
B 39,000 ÷ 39,007 38,961 ÷ 38,968 0.032 ÷ 0.046
Cylinder (with shiram
piston)
B 39,000 ÷ 39,007 38,956 ÷ 38,966 0.037 ÷ 0.051
Asso piston/right way
(with asso cylinder/right
way)
C 39,007 ÷ 39,014 38,968 ÷ 38,975 0,032 ÷ 0,046
Asso piston/right way
(with shiram cylinder)
C 39,007 ÷ 39,014 38,963 ÷ 38,970 0,037 ÷ 0,051
Shiram piston (with as-
so cylinder/right way)
D 39,014 ÷ 39,021 38,975 ÷ 38,982 0,032 ÷ 0,046
Shiram piston (with shir-
am cylinder)
D 39,014 ÷ 39,021 38,970 ÷ 38,977 0,037 ÷ 0,051
Cylinder 1st oversize A1 39.193 ÷ 39.200 39.154 ÷ 39.161 0.032 ÷ 0.046
Cylinder 1st oversize B1 39.200 ÷ 39.207 39.161 ÷ 39.168 0.032 ÷ 0.046
Piston 1st oversize C1 39.207 ÷ 39.214 39.168 ÷ 39.175 0.032 ÷ 0.046
Piston 1st oversize D1 39.214 ÷ 39.221 39.175 ÷ 39.182 0.032 ÷ 0.046
Cylinder 2nd oversize A2 39.393 ÷ 39.400 39.354 ÷ 39.361 0.032 ÷ 0.046
Cylinder 2nd oversize B2 39.400 ÷ 39.407 39.361 ÷ 39.368 0.032 ÷ 0.046
Piston 2nd oversize C2 39.407 ÷ 39.414 39.368 ÷ 39.375 0.032 ÷ 0.046
Piston 2nd oversize D2 39.414 ÷ 39.421 39.375 ÷ 39.382 0.032 ÷ 0.046
Cylinder 3rd oversize A3 39.593 ÷ 39.600 39.554 ÷ 39.561 0.032 ÷ 0.046
Cylinder 3rd oversize B3 39.600 ÷ 39.607 39.561 ÷ 39.568 0.032 ÷ 0.046
Piston 3rd oversize C3 39.607 ÷ 39.614 39.568 ÷ 39.575 0.032 ÷ 0.046
Piston 3rd oversize D3 39.614 ÷ 39.621 39.575 ÷ 39.582 0.032 ÷ 0.046
MSS Fly 50 4T Characteristics
CHAR - 13
