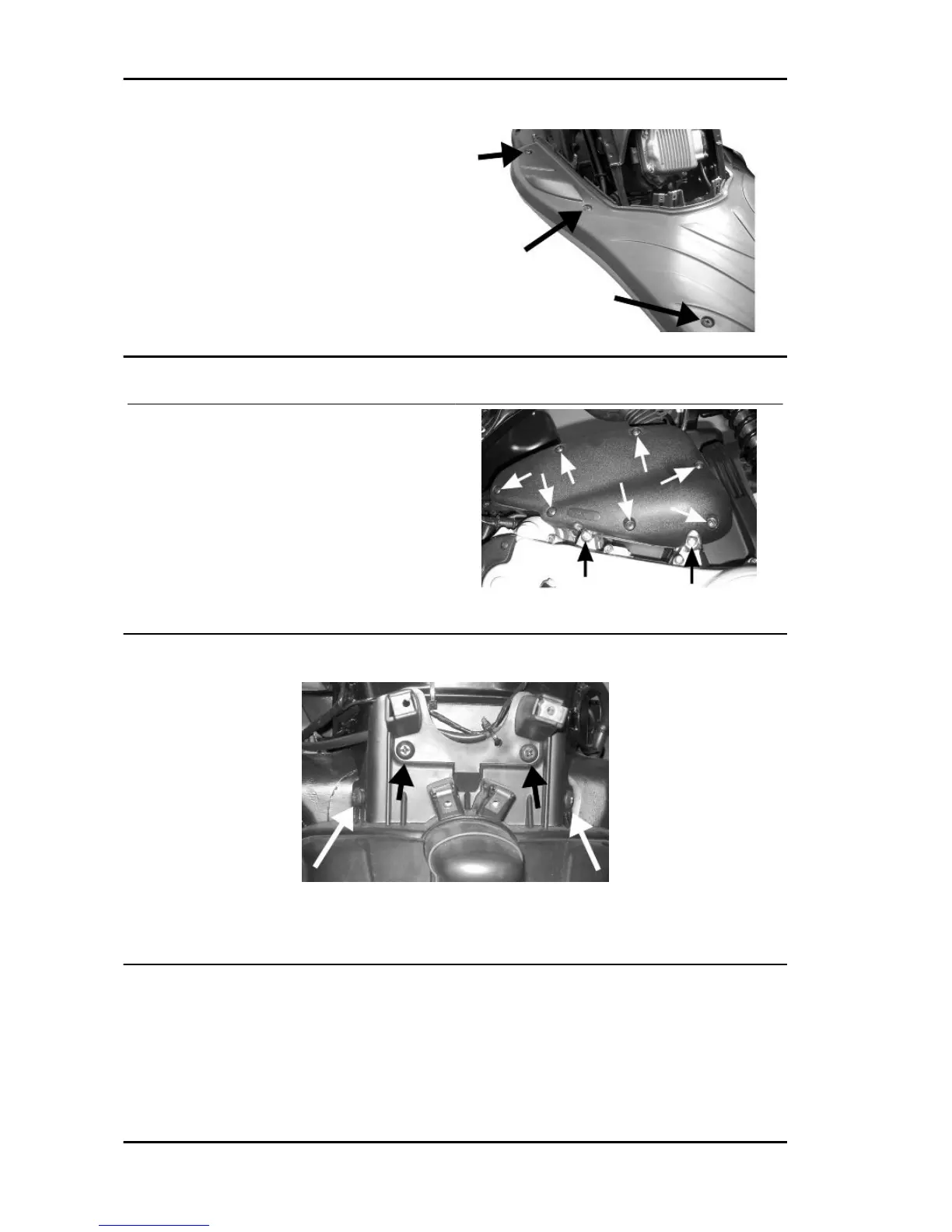

Air filter
• Unscrew the 7 cover screws and remove the
cover to reach the filter sponge.
• To disassemble the filter housing, unscrew the 2
bottom screws and disconnect the manifold con-
nections, the carburettor and the external air in-
take.
Rear mudguard
- Remove the side fairings
- Remove the 4 screws shown in the photograph
Chassis
MSS Fly 50 4T
CHAS - 144
143
145
