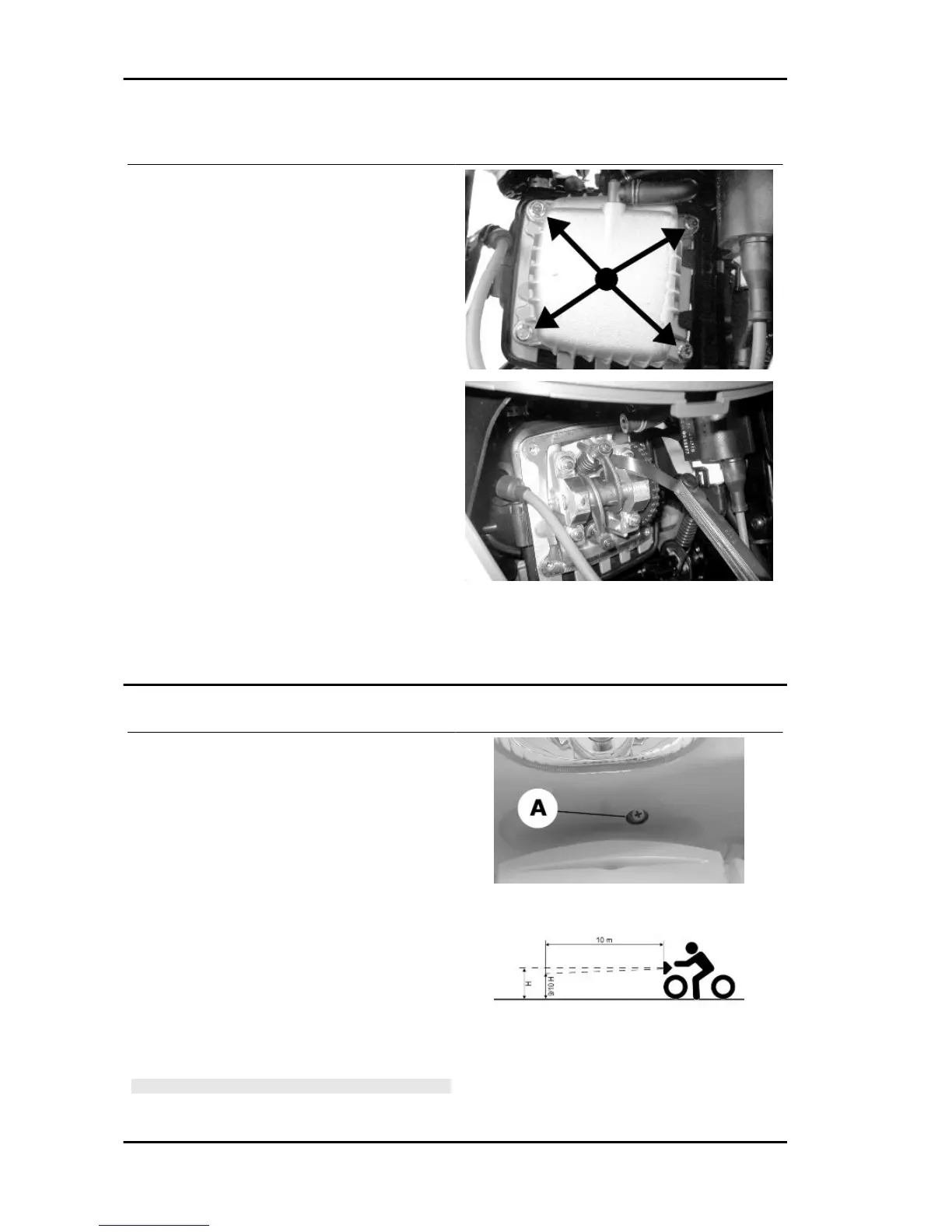

Checking the valve clearance
- Remove the spark plug access cover, undo the
4 fixing screws indicated in the figure and remove
the tappet cover.
- To check valve clearance, centre the reference
marks of the timing system point as described
above.
- Use an adequate thickness gauge to check that
the clearance between the valve and the register
corresponds with the indicated values.
Should the valve clearance values, intake and
drainage respectively, be different from the ones
indicated below, adjust them by loosening the lock
nut and operate on the register with a screwdriver
as shown in the figure.
Characteristic
Inlet (with cold engine)
0.10 mm
Outlet (with cold engine)
0.15 mm
Headlight adjustment
Proceed as follows:
1. Place the vehicle, in running order and with the
tyres inflated to the prescribed pressure, on a flat
surface 10-m away from a white screen situated in
a shaded area, making sure that the longitudinal
axis of the scooter is perpendicular to the screen;
2. Turn on the headlight and check that the bor-
derline of the projected light beam on the screen
is not lower than 9/10 of the distance from the
ground to the centre of vehicle headlamp and high-
er than 7/10;
3. If otherwise, adjust the right headlight with screw
«A».
N.B.
THE ABOVE PROCEDURE COMPLIES WITH THE EURO-
PEAN STANDARDS REGARDING MAXIMUM AND MINI-
Maintenance MSS Fly 50 4T
MAIN - 36
