Specification Desc./Quantity
17 Front brake stop button
18 Starter button
19 Key switch
20 front right turn indicator
21 Fuel level transmitter
22 Automatic starter
23 Starter remote control
24 rear right turn indicator
25 Rear light assembly
26 Stop and tail light bulb Type: Spherical
Power: 12V 21/5W
Quantity: 1
27 Battery 12V - 9Ah
28 Electronic ignition device
29 Magneto flywheel
30 Starter motor
31 Fuse carrier (N° 1 fuse to 10 A)
32 rear left turn indicator
33 Rear turn indicator bulbs Two, 12V-10W, spherical
34 Voltage regulator
35 Claxon in c.c.
36 Resistance 6,8 Ohm - 10W
Colours of the electrical cables:
B = White, Bl = Blue, G = Yellow, Mr = Brown, N = Black, Gr = Grey,
Rs = Pink, R = Red, Vi = Purple, V = Green

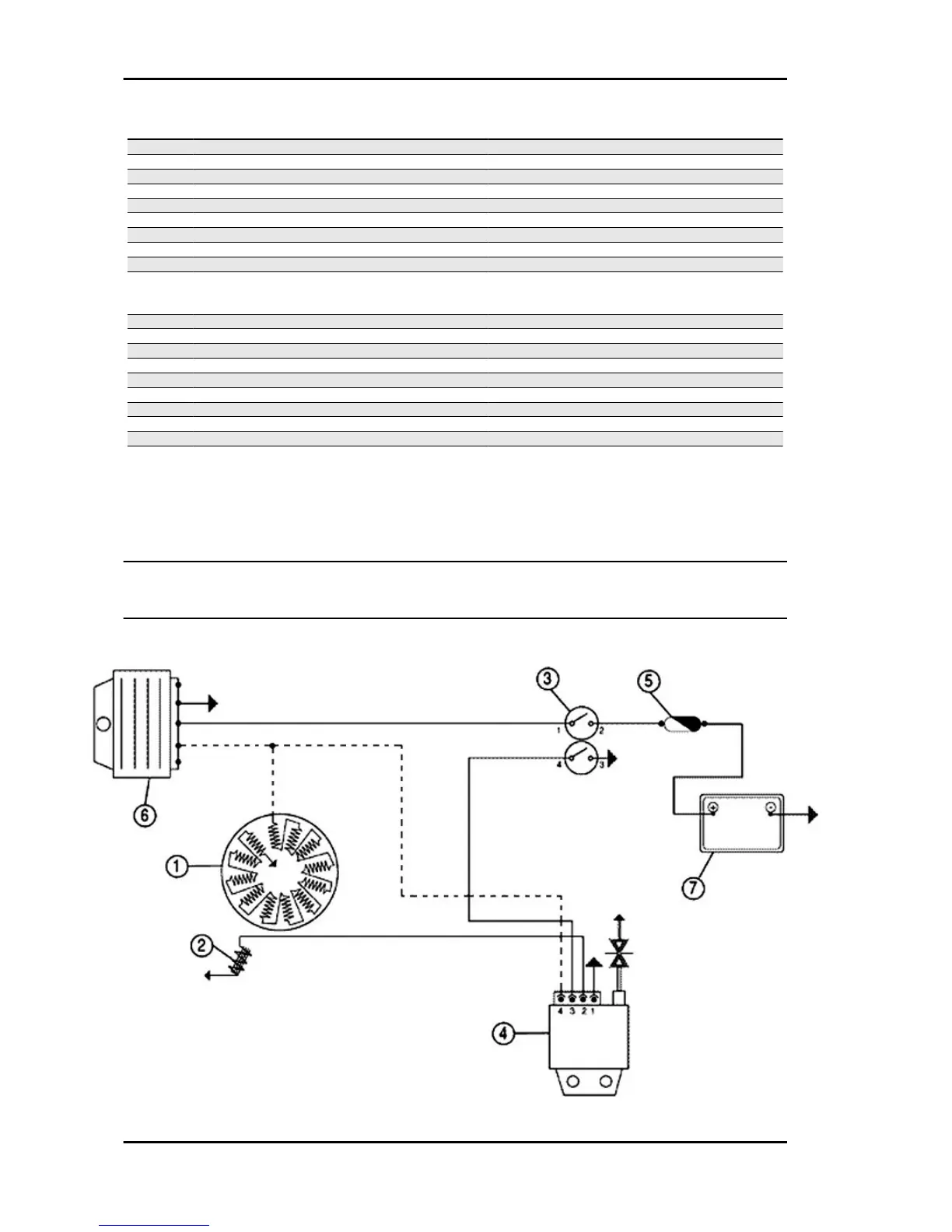

Conceptual diagrams
Ignition
Electrical system MSS Fly 50 4T
ELE SYS - 48
