1-2. Vehicle Identification

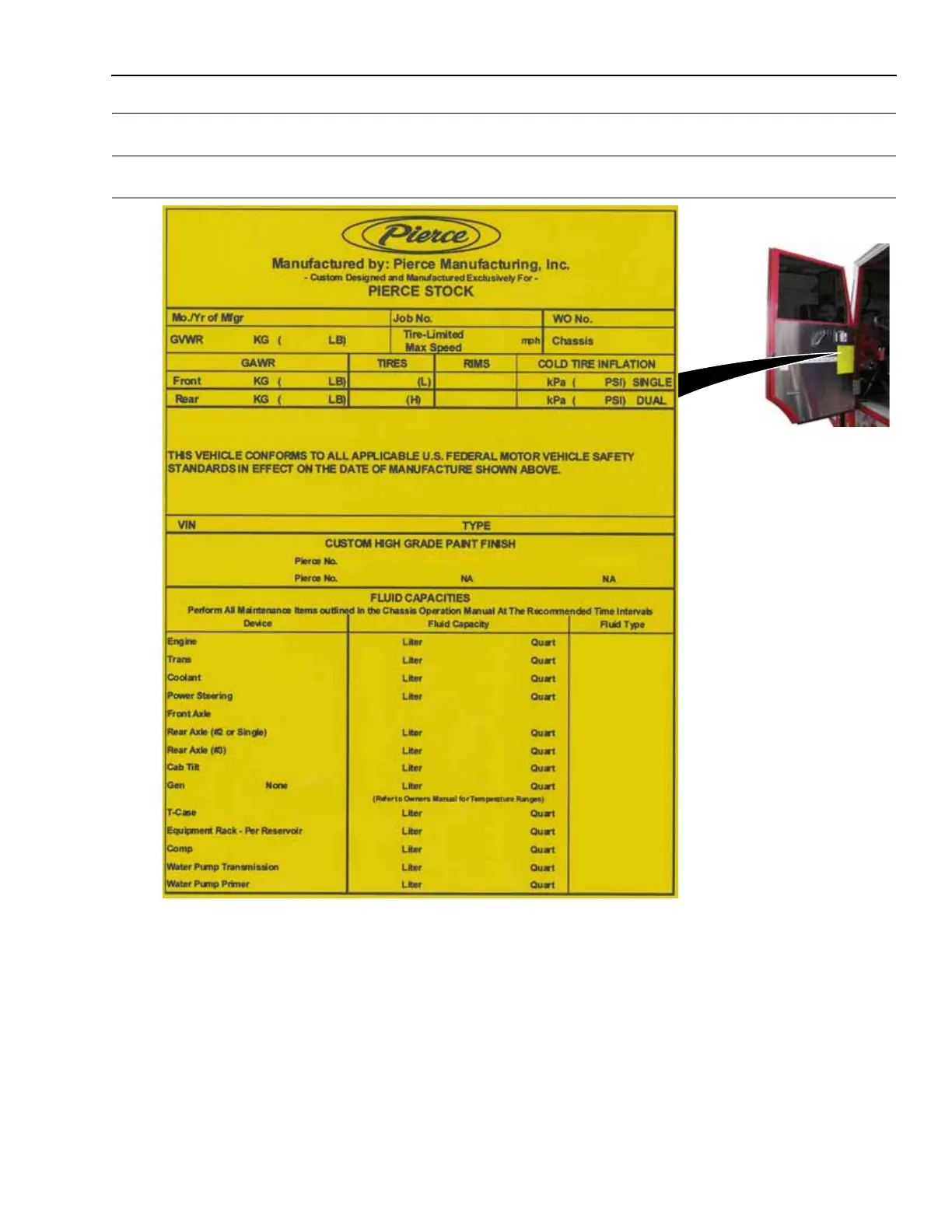

Figure 1-1: FMVSS Information Decal

1099, POM0809

The Vehicle Identification Number (VIN) can be found in the upper right hand corner of the yellow Federal Motor

Vehicle Safety Standard (FMVSS) information decal found in the driver’s side of the cab.
