GENERAL
4-7.1 Typical Saber® 2014/Enforcer™ Instrument Panel

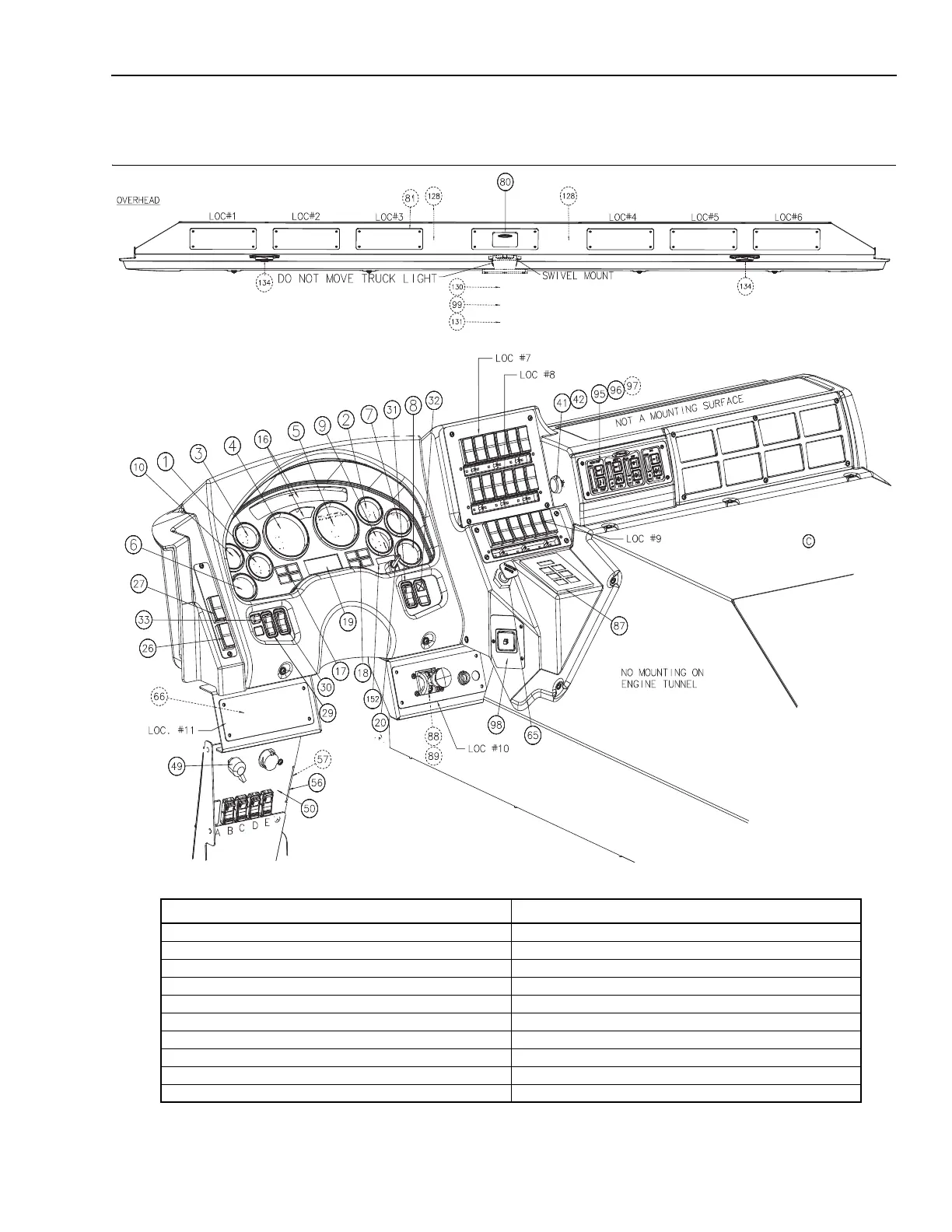

Figure 4-7: Saber® 2014 / Enforcer™ Controls and Indicators
66-0240SH1A
Item # Description Item # Description
1. Engine Oil Pressure Gauge B. Frontal Air Bag Fault
A. Low Engine Oil PSI Ind C. Battery System On
2. Volt Meter D. SRS Fault
A. Low/High Voltage Ind 18. Right Hardwired Indicator Bank
3. Engine Coolant Temperature Gauge A. DPF Regeneration (Cummins)
A. High Engine Coolant Temp Ind B. Low Diesel Exhaust Fluid Level
4. Tachometer with Engine Hourmeter C. Grid Heater - Wait to Start (Cummins)
5. Speedometer D. Emission System Malfunction
6. Trans Oil Temp Gauge 19. LCD Display on Gauge Assembly
A. High Trans Oil Temp Ind A. Odometer
To Next Page
