Overview

Operating Manual PNOZ m1p (ETH)

20878-EN-16

PNOZ m1p ETH

CHIP-Card

TRF

LNK

TRF

LNK

MAC ADD_00-02-47-MAC-VAR

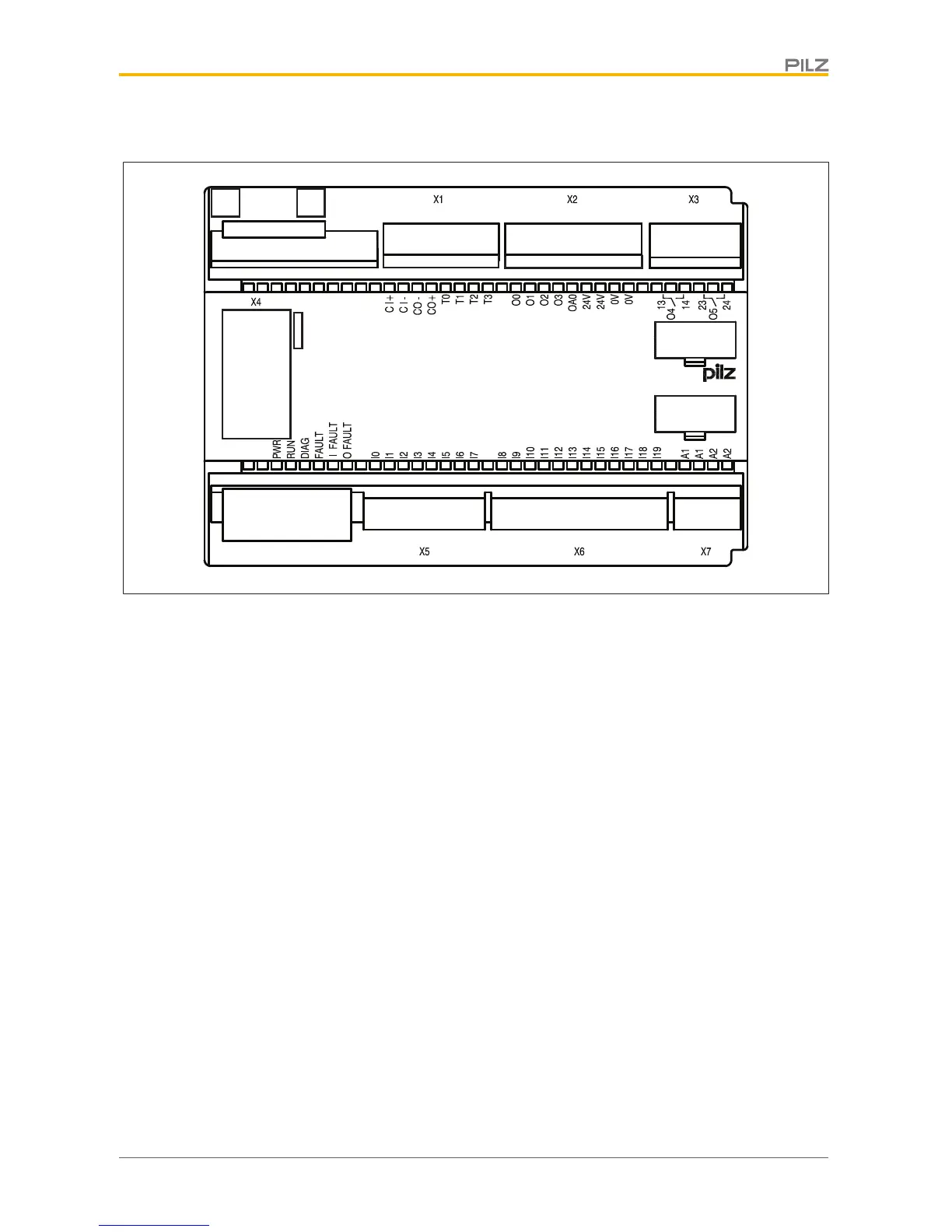

Legend:

CHIP card Chipkarte interface

X1 Cascading inputs and outputs CI and CO,

Test pulse outputs T0 ... T3

X2 Semiconductor outputs O0 ... O3,

Auxiliary output OA0,

Supply connections

X3 Relay outputs O4 and O5

X4 RS232 interface / Ethernet interface

X5, X6 Inputs I0 ... I19

X7 Power supply

LEDs: PWR

RUN

DIAG

FAULT

I FAULT

O FAULT

Other manuals for Pilz PNOZ m1p

Questions and Answers:

Need help?

Do you have a question about the Pilz PNOZ m1p and is the answer not in the manual?

General

Supply Voltage	24 V DC
Number of Safe Inputs	20
Number of Safe Outputs	8
Number of Standard Outputs	4
Protection Type	IP20
Expansion Modules	Yes
Safety Category	EN ISO 13849-1: PL e
Communication Interface	Ethernet
Operating Temperature Range	-20°C to +60°C
Dimensions (W x H x D)	45 mm x 121 mm
Standards	EN ISO 13849-1, EN 62061, EN 61508
