External error on the inputs, which does not lead
to a safe condition, e.g. partially operated; feed-
back input defective
The fieldbus module has not been recognised.
Or
The base unit has been identified via the
PNOZmulti Configurator.
Error on cascading input; unit remains in a RUN
condition
Error on cascading output; unit remains in a
RUN condition

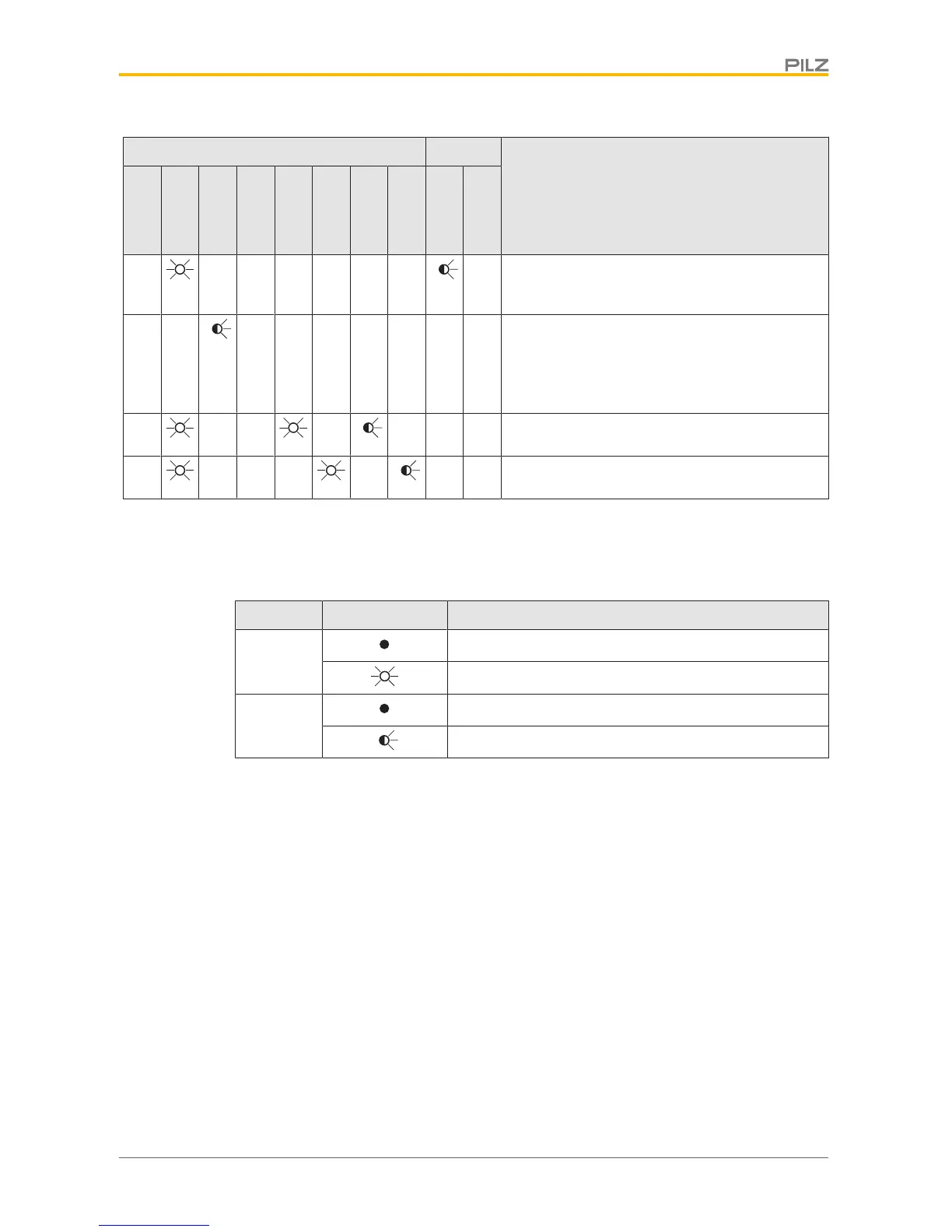

7.1.1 Indicators for the Ethernet connection (ETH version only)
The operating and fault states of the Ethernet connection are displayed via the LNK (Link)
and TRF (Traffic) LEDs on the Ethernet interfaces.
LED Signal Meaning
LNK
(green)
No network connection
Network connection present
TRF (yel-
low)
No data traffic
Data traffic present
7.2 Function test of the relay outputs
When the relay outputs are switched on, the mechanical contact on the relay cannot be
tested automatically. Depending on the operational environment, measures to detect the
non-opening of switching elements may be required under some circumstances.
When the product is used in accordance with the European Machinery Directive, a check
must be carried out to ensure that the safety contacts on the relay outputs open correctly.
Start the device again or open the safety contacts (switch off output), so that the internal
diagnostics can check the correct opening of the safety contacts
} for SIL CL 3/PL e at least 1x per month
} for SIL CL 2/PL d at least 1x per year
