Installation

Operating Manual PNOZ m1p (ETH)

20878-EN-16

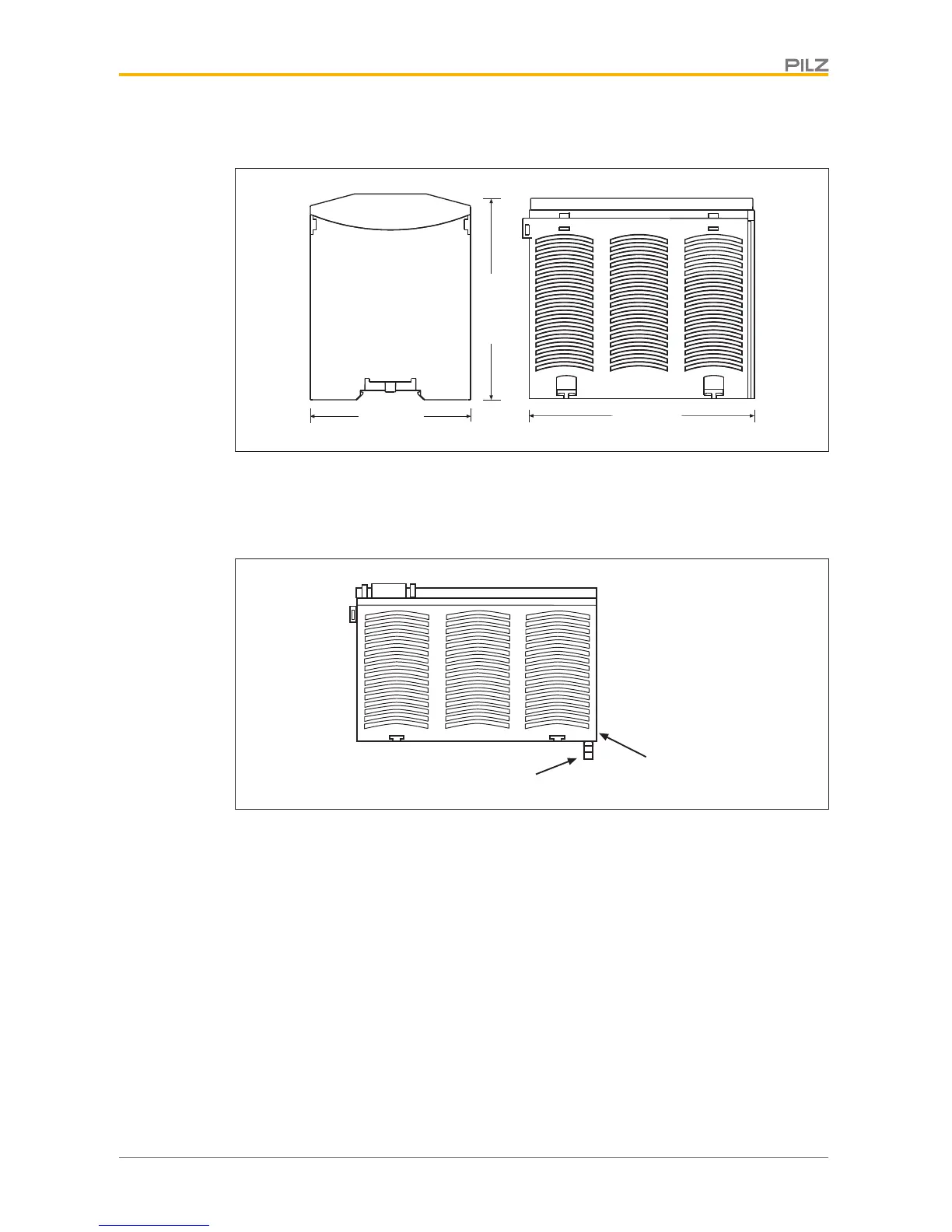

5.2 Dimensions

94 (3.70")

121 (4.76")

135 (5.31")

5.3 Install base unit without expansion module

} The terminator must be fitted to the side of the base unit marked “Termination/Link”.

} Do not fit a terminator on the left hand side of the base unit.

Terminator

Termination/Link

Other manuals for Pilz PNOZ m1p

Questions and Answers:

Need help?

Do you have a question about the Pilz PNOZ m1p and is the answer not in the manual?

General

Supply Voltage	24 V DC
Number of Safe Inputs	20
Number of Safe Outputs	8
Number of Standard Outputs	4
Protection Type	IP20
Expansion Modules	Yes
Safety Category	EN ISO 13849-1: PL e
Communication Interface	Ethernet
Operating Temperature Range	-20°C to +60°C
Dimensions (W x H x D)	45 mm x 121 mm
Standards	EN ISO 13849-1, EN 62061, EN 61508
