Commissioning
Operating Manual PNOZ m1p (ETH)
20878-EN-16
20

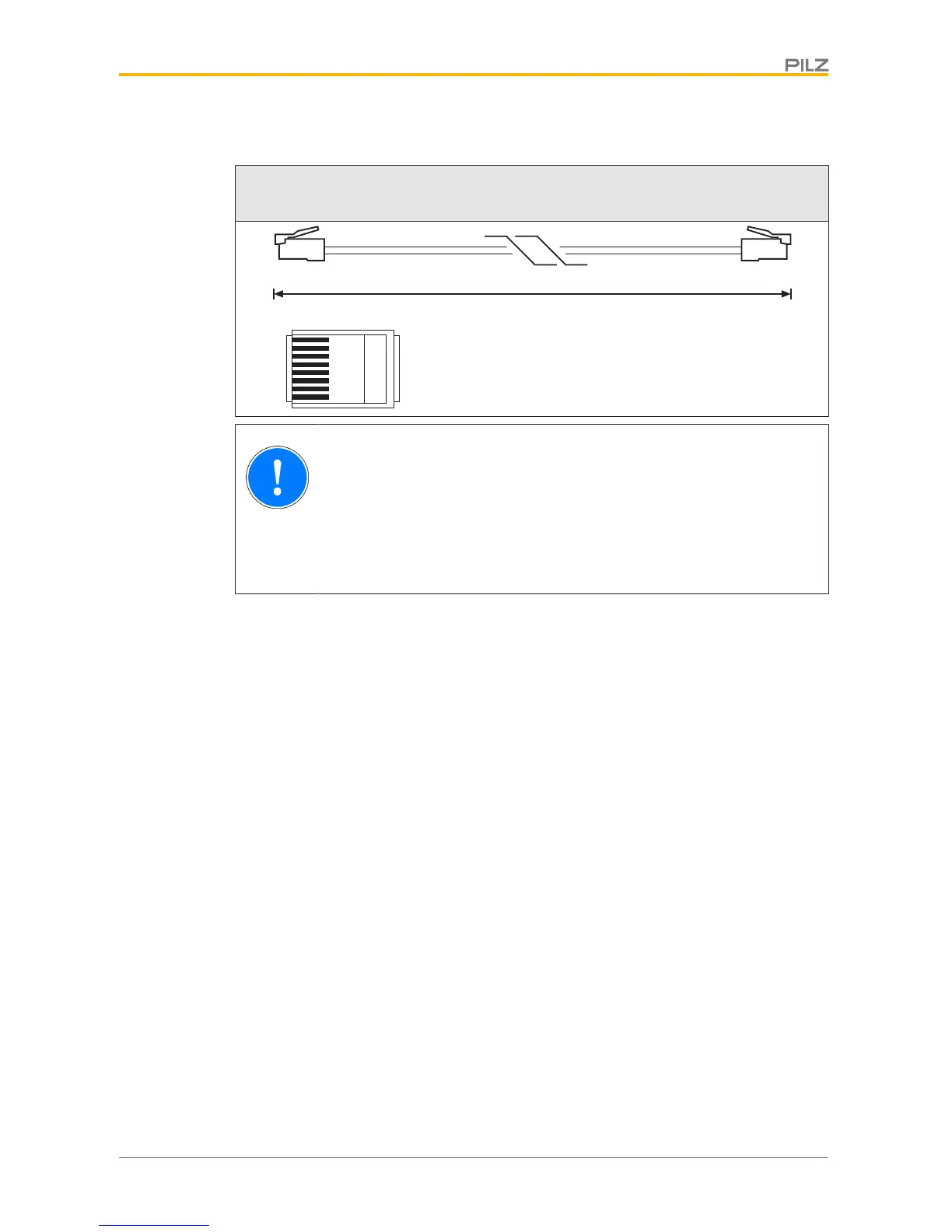

6.2.4 RJ45 connection cable
RJ45 connector
8-pin
8
1
10BaseT cable or 100BaseTX cable
max. 100 m
NOTICE
With the plug-in connection please note that the data cable and connector
have a limited mechanical load capacity. Appropriate design measures
should be used to ensure that the plug-in connection is insensitive to in-
creased mechanical stress (e.g. through shock, vibration). Such measures
include fixed routing with strain relief, for example.

Pilz PNOZ m1p Specifications

General

Supply Voltage	24 V DC
Number of Safe Inputs	20
Number of Safe Outputs	8
Number of Standard Outputs	4
Protection Type	IP20
Expansion Modules	Yes
Safety Category	EN ISO 13849-1: PL e
Communication Interface	Ethernet
Operating Temperature Range	-20°C to +60°C
Dimensions (W x H x D)	45 mm x 121 mm
Standards	EN ISO 13849-1, EN 62061, EN 61508
