Pilz PNOZ m1p User Manual

Commissioning
Operating Manual PNOZ m1p (ETH)
20878-EN-16
26

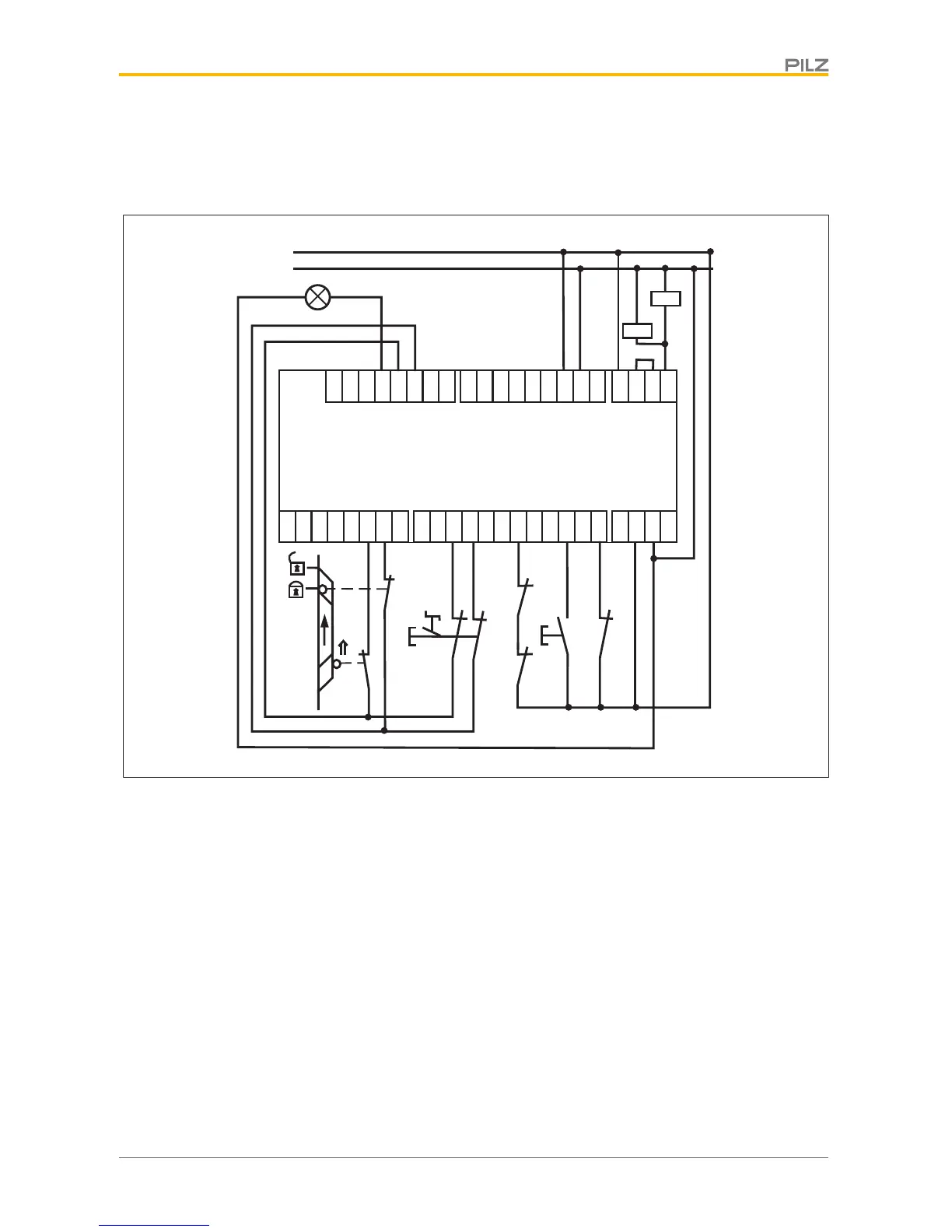

6.7 Connection example
Dual-channel E-STOP and safety gate wiring, monitored start (I17), feedback loop (I14),
cascading output as auxiliary output (CO+/A2)
I0 I1 I2 I3 I4 I5 I6 I7 I8 I9 I10 I11 I12 I13 I14 I15 I16 I17 I18 I19 A1 A1 A2 A2
CI+ CI- CO- CO+ T0 T1 T2 T3 O0 O1 O2 O3 OA0 24V 24V 0V 0V 13 14 23 24
K1
K2
S1
K2
K1
S2
S3
L+
L-

Pilz PNOZ m1p Specifications

General

Supply Voltage	24 V DC
Number of Safe Inputs	20
Number of Safe Outputs	8
Number of Standard Outputs	4
Protection Type	IP20
Expansion Modules	Yes
Safety Category	EN ISO 13849-1: PL e
Communication Interface	Ethernet
Operating Temperature Range	-20°C to +60°C
Dimensions (W x H x D)	45 mm x 121 mm
Standards	EN ISO 13849-1, EN 62061, EN 61508
