Commissioning
Operating Manual PNOZ m1p (ETH)
20878-EN-16
25
Redundant output
O5
K1
L1
N
K2
14
13
23
24
O4
Single output
O5
K1
L1
N
K2
14
13
23
24
O4

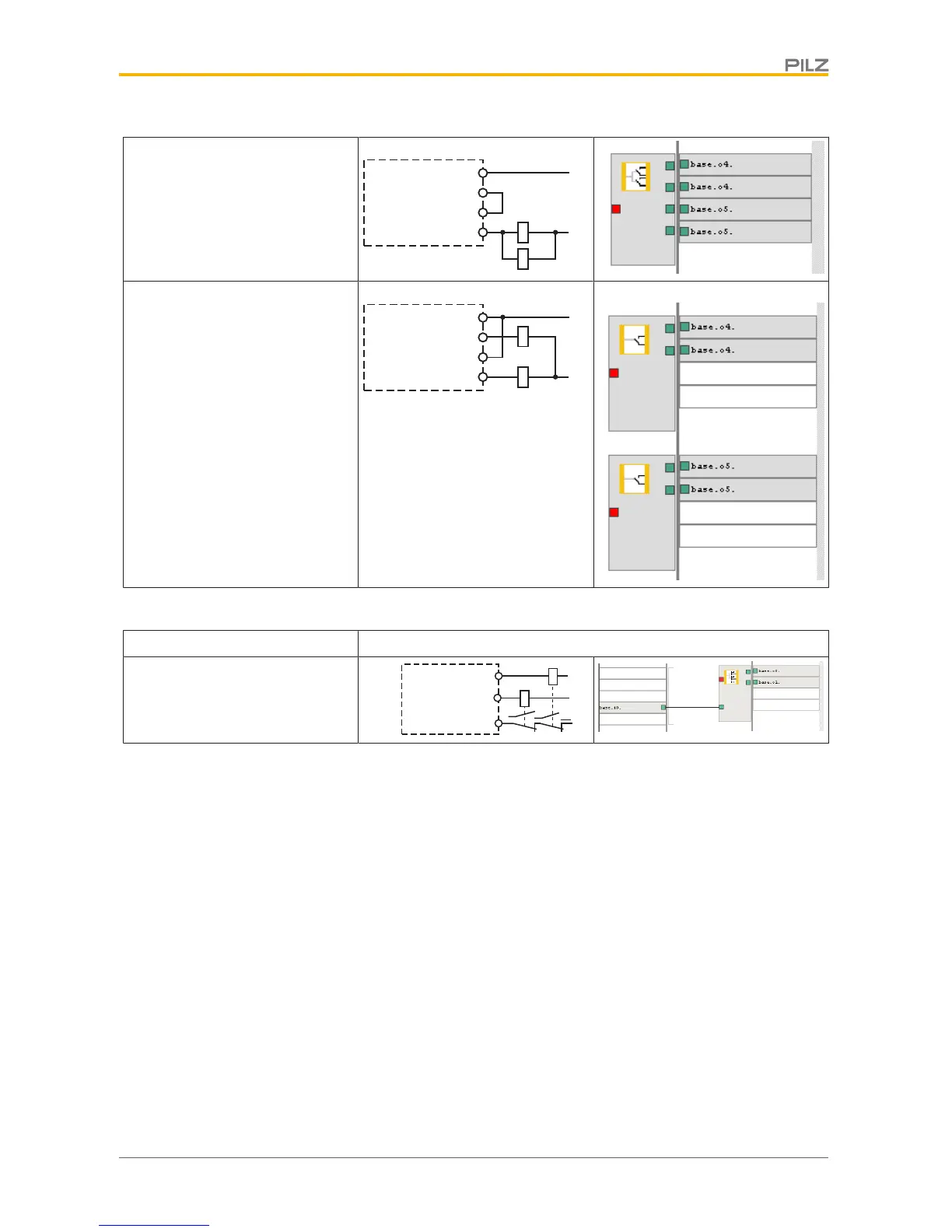

Connection examples for relay outputs
Feedback loop Redundant output
Contacts from external contactors
K1
L+
L-
K2
O0 (O2, O4)
O1 (O3, O5)
I0
L-
Connection examples for feedback loop
