Commissioning
Operating Manual PNOZ m1p (ETH)
20878-EN-16
21
6.2.5 Process data exchange
The RJ45 interfaces on the internal autosensing switch enable process data to be ex-
changed with other Ethernet subscribers within a network.
The product PNOZ m1p can also be connected to Ethernet via a hub (hub or switch).
Ethernet
Hub/Switch Hub/Switch
Ethernet subscriber
Ethernet subscriber
PNOZmulti base unit
with Ethernet interface
PNOZmulti base unit
with Ethernet interface
PC with PNOZmulti
Configurator

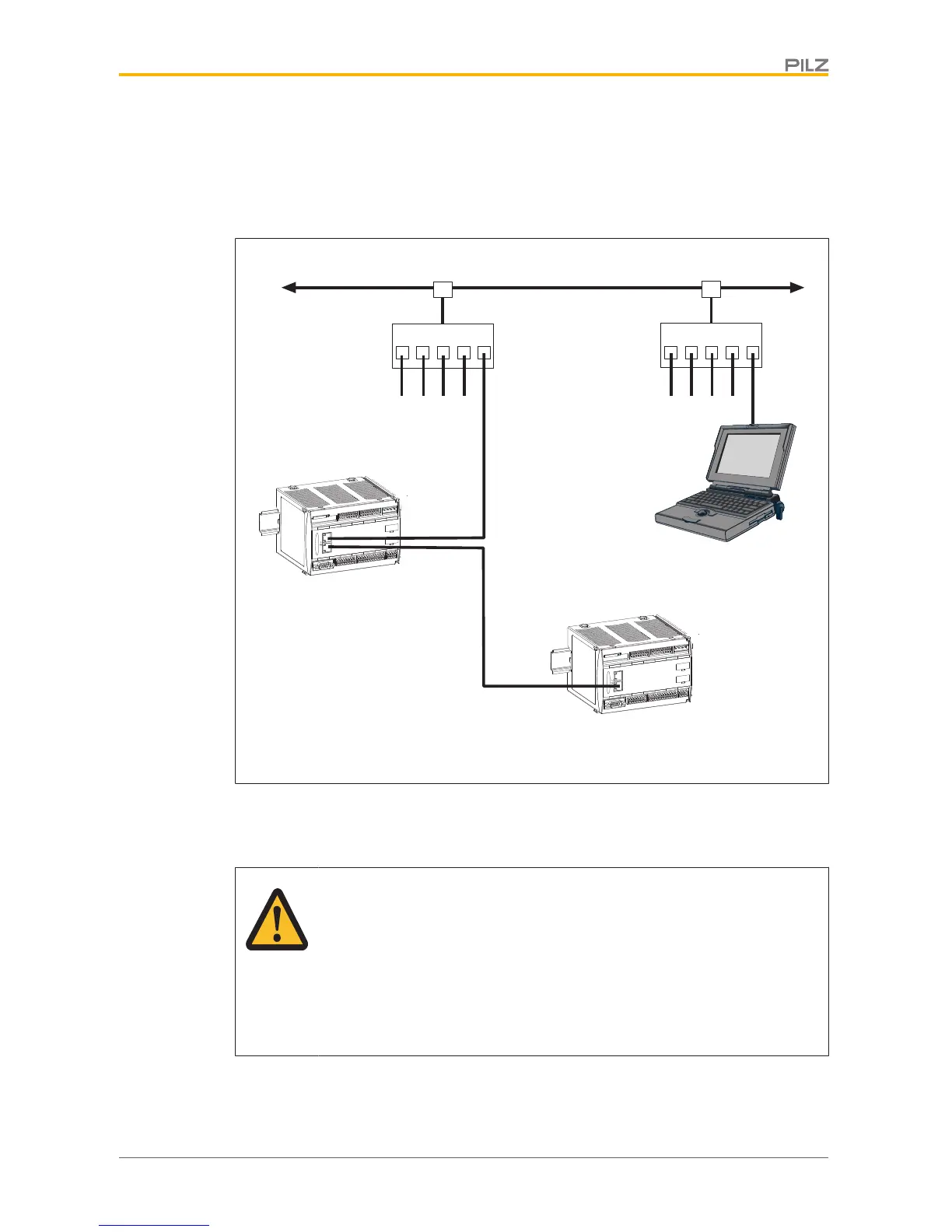

Fig.: PNOZmulti as Ethernet subscriber - possible topologies
6.3 Function test during commissioning
CAUTION!
It is essential to check that the safety devices operate correctly
– after the chip card has been exchanged
– after a project has been downloaded
– when the project has been deleted from the base unit's memory ("Re-
set Project" menu)

Pilz PNOZ m1p Specifications

General

Supply Voltage	24 V DC
Number of Safe Inputs	20
Number of Safe Outputs	8
Number of Standard Outputs	4
Protection Type	IP20
Expansion Modules	Yes
Safety Category	EN ISO 13849-1: PL e
Communication Interface	Ethernet
Operating Temperature Range	-20°C to +60°C
Dimensions (W x H x D)	45 mm x 121 mm
Standards	EN ISO 13849-1, EN 62061, EN 61508
