Installation of the unit
Installation using the optional PIONEER stand or
installation bracket
• Please be sure to request inata/ation or mounting of this unK
or the installation bracket by an installation specialist or the
dealor where purchased
• When insta/ing, be sure to use the bolts provided with the
stand or insta/ation bracket
• For details concerning instaladon, please refer to the
instruction manua] provided with the stand or installation
bracket
Installation using accessories other than the
PIONEER stand or installation bracket (sold
separately)
• When possible, plea,,e install using partsand accessories
manufactured by PIONEER PIONEERwill not he held
responsible for accident or damage causedby the use of parts
and accessories manufactured by other companies
• For custom installation, please consult the dealer where the
unit was purchased, or a qualified installer

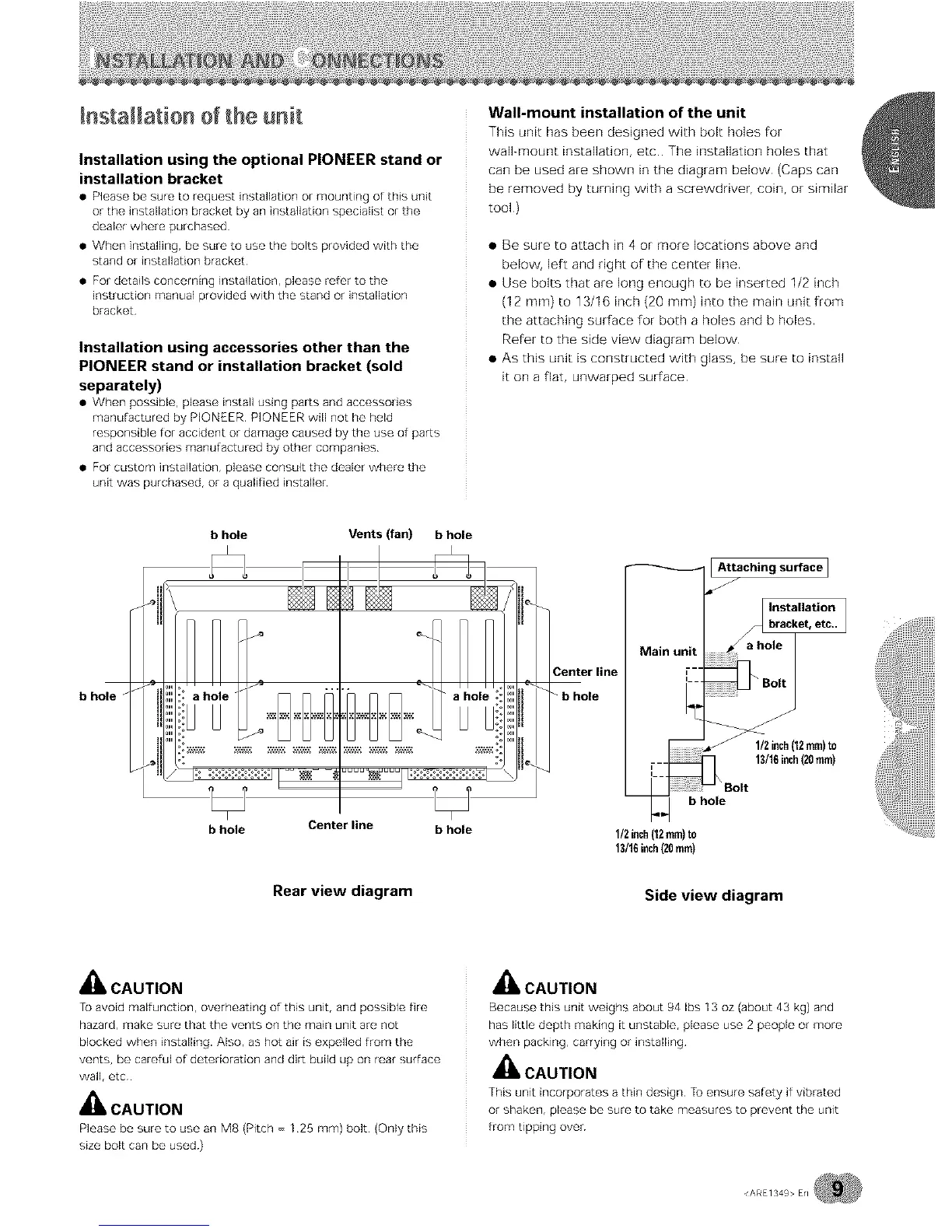

Wall-mount installation of the unit
This urfit has been designed with bolt holes fo_
wal-mount installation, etc.. The installation holes that
can be used are shown in the diagram below (Gaps can
be removed by turning with a screwdriver, coin, or similar
tool)
• Be sure to attach in 4 or more locations above and
below, left and right of the center line
• Use belts that are long enough to be inserted 1/2 inch
(12 mm) to 13/16 inch (20 mm) into the main unit from
the attaching surface for both a holes and b holes
Refer to the side view diagram below
• As this unit is constructed with glass, be sure to install
it on a flat, unwarped surface
b hole _
b hole Vents (fan) b hole
b hole
Center line b hole
Center line
- b hole
Attaching surface ]
Installation
bracket, etc.,
_h(12 mm)to
13/16inch(20ram)
b hole
1/3inch(12ram)to
13116inch(20ram)
r:
Rear view diagram
Side view diagram
_lb CAUTION
To avoid malfunction, overheating of this unit, and possible fire
hazard, make sure that the vents on the main unit are not
blocked when installing. Also, as hot air is expelled from the
vents, be careful of deterioration and dirt buld up on rear surface
wall, etc
_, CAUTION
Please be sure to use an M8 (Pitch = 125 ram) bolt (Only this
size bolt can be used)
_k CAUTION
Because this unit weighs about 94 Ibs ] 3 oz (about 43 kg) and
has little depth making it unstable, please use 2 people or more
when packing, carrying or installing
_k CAUTION
This unit incorporates a thin design To ensure safety if vibrated
or shaken, please be sure to take measures to prevent the unit
from tipping over
