Pioneer PDP-507XD Service Manual

PDP-507XD
110
1234
1234
C
D
F
A
B
E
×3

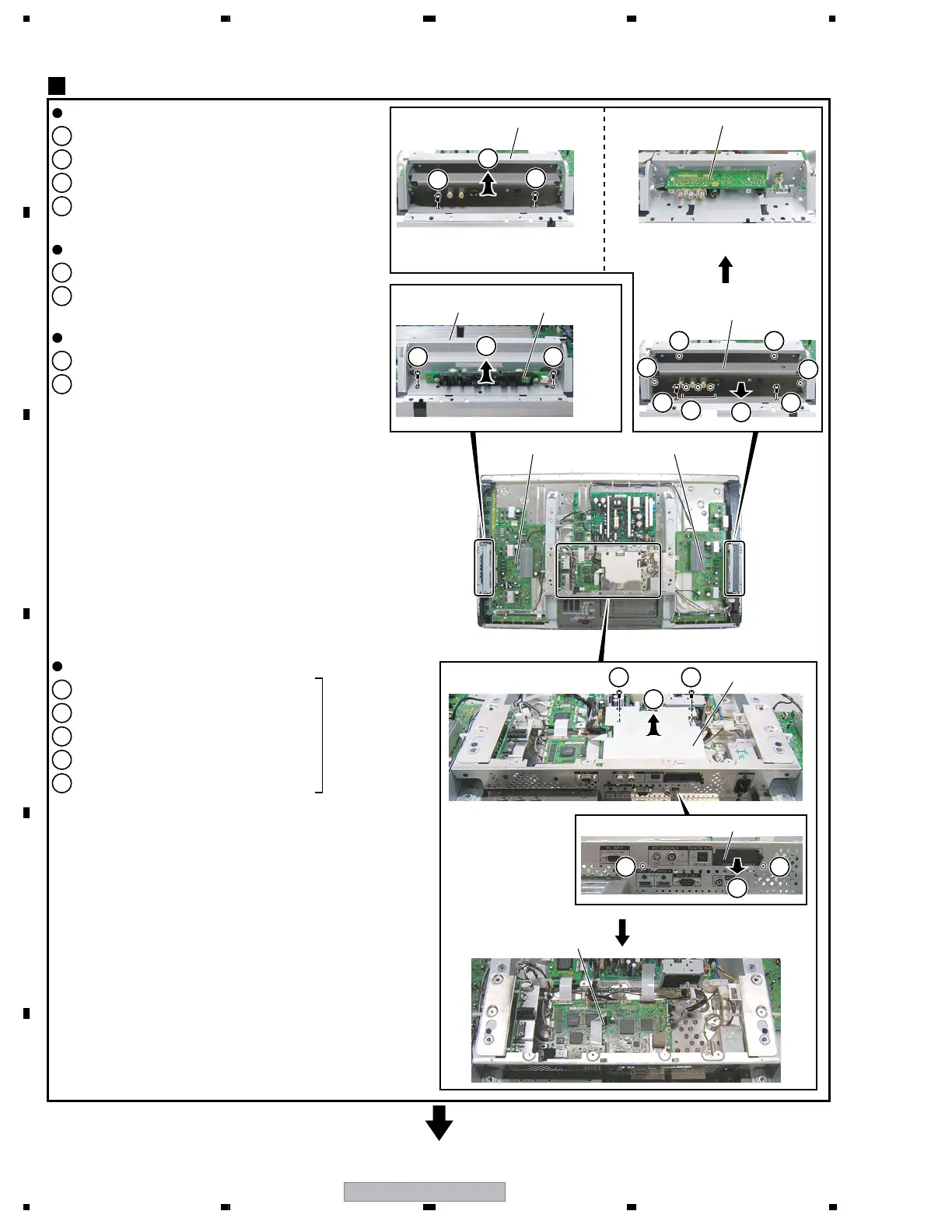

Access to PCB Assys
2
1
Remove the four screws.
2
Remove the two screws.
3
Remove the three screws.
4
Remove the side input panel (E).
SIDE Assy
1
Remove the two screws.
2
Remove the side input shield with PCB.
50 X MAIN DRIVE Assy
1
Remove the two screws.
2
Remove the function button shield with PCB.
50 Y MAIN DRIVE Assy
1
Disconnect cables, connectors, as required.
2
Remove the POD cover.
3
Remove the two screws.
4
Remove the two screws.
5
Remove the R07 DT Assy.
PDP-507XD
only
MAIN Assy
2 2
1
1
3
1
1
11
4
2
33
2
Side input panel (E)
Side input shield
Function button shield
SIDE KEY Assy
MAIN Assy
50 X MAIN DRIVE
Assy
50 Y MAIN DRIVE
Assy
R07 DT Assy
POD cover
SIDE Assy
44
11
5
2

Pioneer PDP-507XD Specifications

General

Comb filter	3D
Aspect ratio	16:9
Product color	Black
Noise reduction	Yes
Display diagonal	50 \
Display brightness	1100 cd/m²
Display resolution	1365 x 768 pixels
Display technology	Plasma
Viewable size diagonal	1270 mm
Contrast ratio (typical)	4000:1
