LANCE
II SERVICE
MANUAL
MATERIAL:
.125 X 3.531 X 1.0 ALUM. PLATE
3.531
.062R.
.062R.
2.781
.0621
.125 .625
t
.250
.250
.750

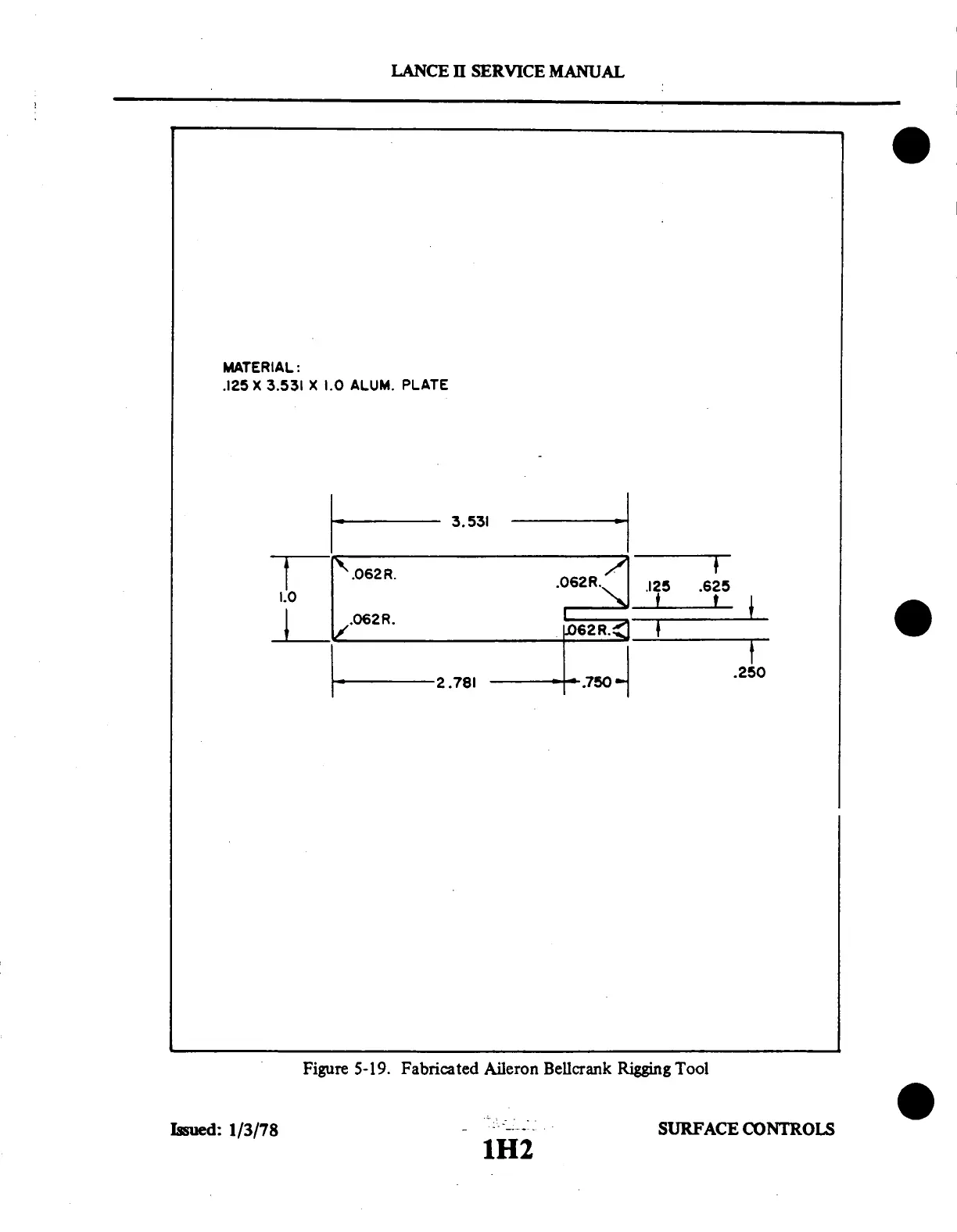

Figure 5-19. Fabricated
Aileron Bellcrank
Rigging Tool
Issued: 1/3/78
1H2
SURFACE CONTROLS
