LANCE
II SERVICE
MANUAL
1740
1. SCREW,
SPINNER
ATTACHMENT
11.
PROPELLER
BLADE
2.
SPINNER
ASSEMBLY
12.
SPINNER
BACK
PLATE
3. BOLT,
BULKHEAD
ATTACHMENT
13. STARTER
RING
4.
WASHER
14.
"O" RING
SEAL
5.
PLATE
15.
NUT,
FLYWHEEL
6.
BULKHEAD,
FORWARD
SPINNER
16.
STUD
7. CUFF,
SPINNER
17.
WASHER
8.
LOW
PITCH
STOP
18.
NUT
9. JAM
NUT
19. SAFETY
WIRE
10. PROPELLER
HUB
20.
GREASE
FITTING

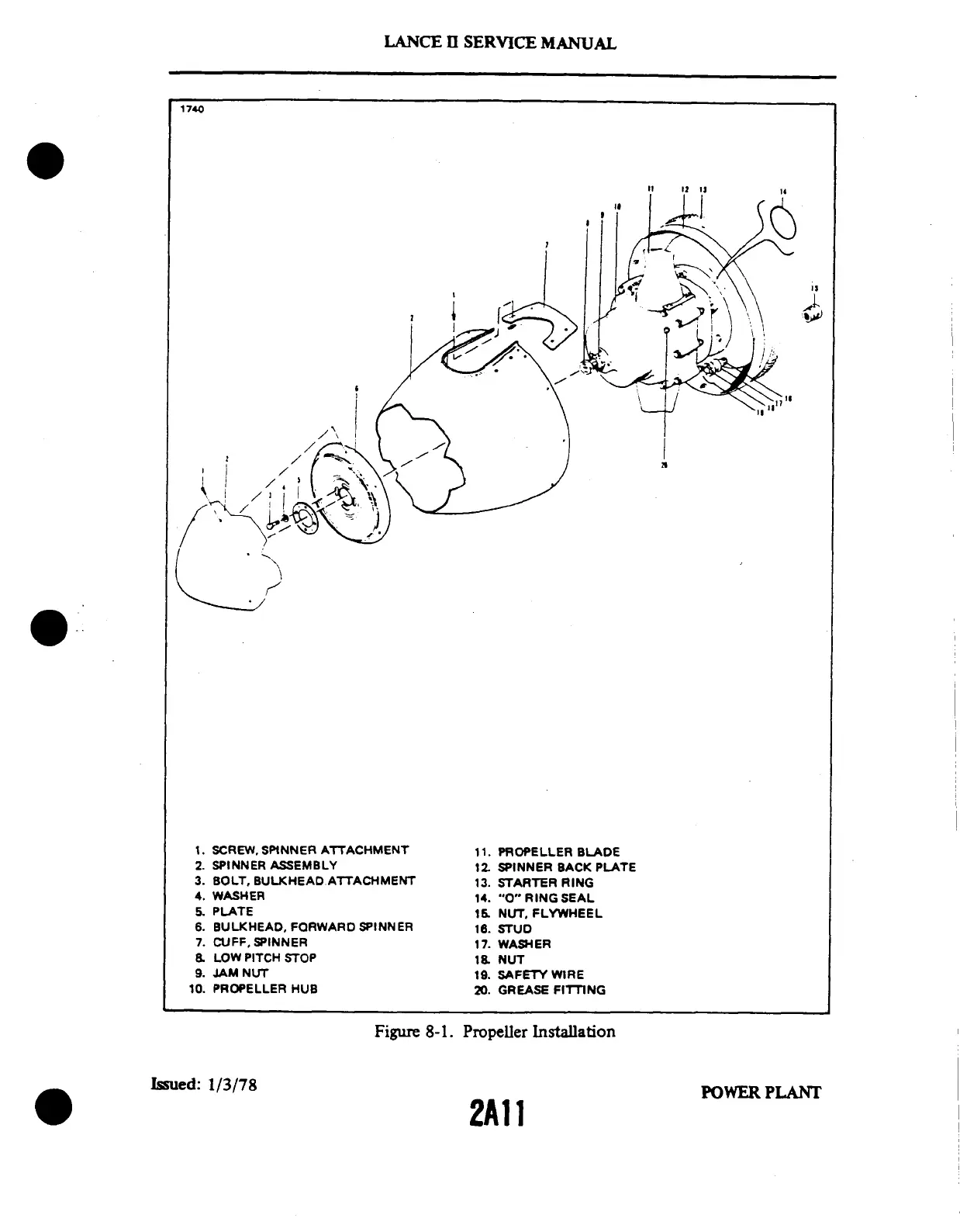

Figure 8-1. Propeller
Installation
Issued:
1/3/78
POWER
PLANT
2A11
