LANCE II SERVICE MANUAL
AFT DOORS ON
32RT-300T ONLY
1. DOOR, GEAR
FORWARD
2.
SPRING
3. ARM
4. LINK ASSEMBLY
5. STRIKER
6. CHANNEL ASSEMBLY
7. SUPPORT ASSEMBLY -
8. PIN, HINGE
9.
ADJUSTMENT
BOLT
10. JAM NUT
11. DOOR,
GEAR
AFT

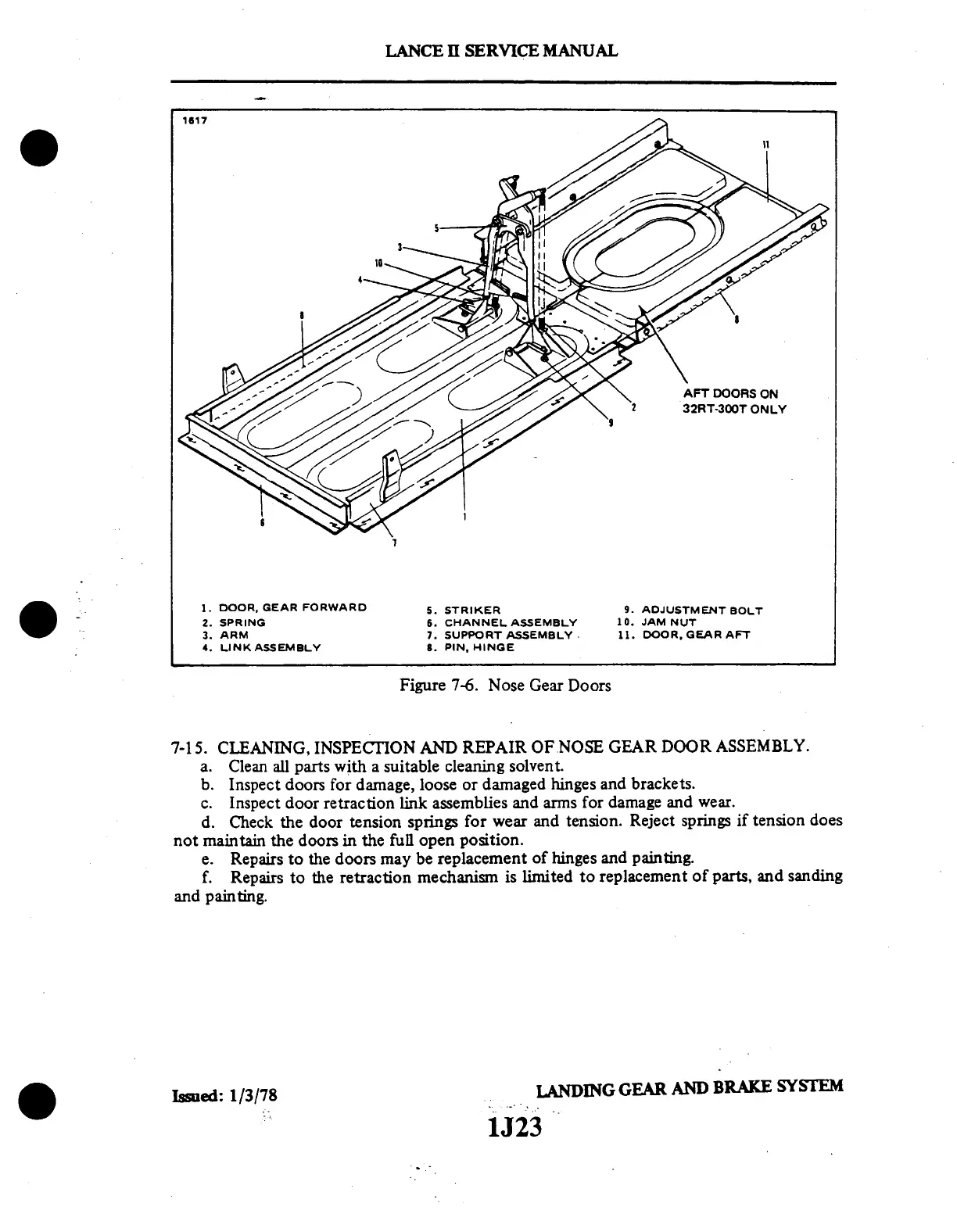

Figure 7-6. Nose Gear Doors
7-15. CLEANING,
INSPECTION
AND REPAIR
OF NOSE
GEAR DOOR
ASSEMBLY.
a.
Clean all parts
with a
suitable cleaning
solvent.
b. Inspect
doors for
damage, loose
or damaged hinges
and brackets.
c.
Inspect door
retraction link assemblies
and arms
for damage
and wear.
d. Check
the door
tension
springs
for wear
and tension.
Reject
springs
if tension
does
not
maintain
the
doors in
the full
open
position.
e.
Repairs
to the doors
may
be replacement
of
hinges and
painting.
f. Repairs
to the
retraction
mechanism
is
limited to
replacement
of parts,
and
sanding
and
painting.
ISSued:
1/3/78
LANDING
GEAR
AND
BRAKE
SYSTEM
1J23
