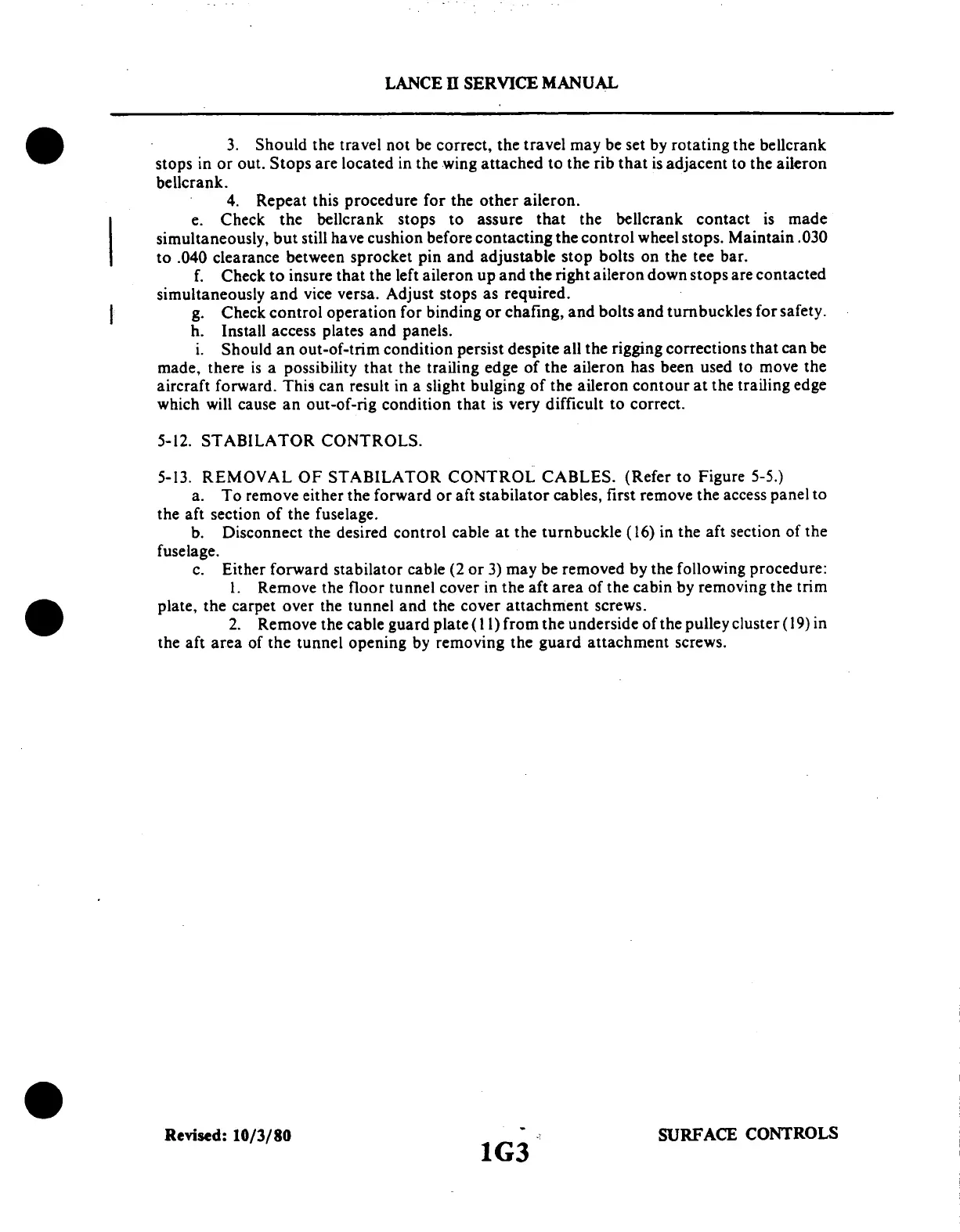

LANCE II SERVICE MANUAL
3. Should the travel not be correct, the travel may be set by rotating the bellcrank
stops in or out. Stops
are located in the
wing attached to
the rib that is adjacent
to the aileron
bellcrank.
4.
Repeat
this procedure
for the
other aileron.
e. Check
the bellcrank
stops
to assure
that the
bellcrank
contact is
made
simultaneously,
but
still have cushion
before contacting
the
control wheel
stops. Maintain
.030
to .040
clearance
between sprocket
pin
and adjustable
stop bolts
on the
tee bar.
f. Check
to insure
that the left
aileron up and
the right
aileron down
stops are contacted
simultaneously
and
vice versa. Adjust
stops
as required.
g.
Check
control
operation
for
binding
or
chafing,
and
bolts
and
turnbuckles
for
safety.
h. Install
access
plates
and panels.
i. Should
an out-of-trim
condition
persist
despite all the
rigging corrections
that
can be
made,
there is
a possibility
that the trailing
edge of
the aileron has
been used
to move the
aircraft
forward.
This
can result
in a slight
bulging
of the aileron
contour
at the
trailing edge
which will cause
an out-of-rig condition that
is very difficult to correct.
5-12. STABILATOR CONTROLS.
5-13.
REMOVAL
OF STABILATOR
CONTROL
CABLES.
(Refer
to Figure
5-5.)
a. To remove
either
the forward
or aft stabilator
cables,
first remove
the access panel
to
the aft section of the fuselage.
b.
Disconnect
the desired control
cable
at the turnbuckle
(16)
in the aft section
of the
fuselage.
c. Either
forward
stabilator cable
(2 or 3)
may be removed
by the
following procedure:
1. Remove
the floor
tunnel cover
in the aft
area of the
cabin by removing
the
trim
plate,
the carpet
over
the tunnel
and the
cover attachment
screws.
2. Remove
the cable
guard plate
( I I) from
the underside
of the
pulley cluster
(19) in
the
aft area of the
tunnel opening
by removing the
guard attachment
screws.
Revised:
10/3/80
1G3
SURFACE
CONTROLS
