LANCE
II SERVICE
MANUAL
2050
1. TEE
BAR,
CONTROL
COLUMN
2.
CABLE,
RIGHT
FORWARD
3.
CABLE,
LEFT
FORWARD
4.
CABLE,
LEFT-LOWER
AFT
5.
CABLE,
RIGHT-UPPER
AFT
6. PULLEY,
FORWARD
CLUSTER
7. PULLEY,
AFT
8.
BOLT,
WASHER,
NUT
& COTTER
PIN
9. BOLT,
WASHER
&
NUT
10.
BLOCK,
CABLE
RUB
11.
GUARD,
CABLE
12.
BOLT,
WASHERS
&
NUT
13.
BOLT,
WASHERS
& NUT
14.
PULLEY,
FORWARD
15.
BOLT,
WASHER,
NUT
&
COTTER
PIN
16.
TURNBUCKLE
17.
WEIGHT,
BALANCE
ARM
18.
BALANCE
ARM,
STABILATOR
19.
PULLEY,
AFT
CLUSTER
20.
BELLCRANK
21.
BOLT,
WASHER
& NUT
22.
BOLT,
WASHERS,
NUT
&
COTTER
PIN
23.
PUSH
ROD

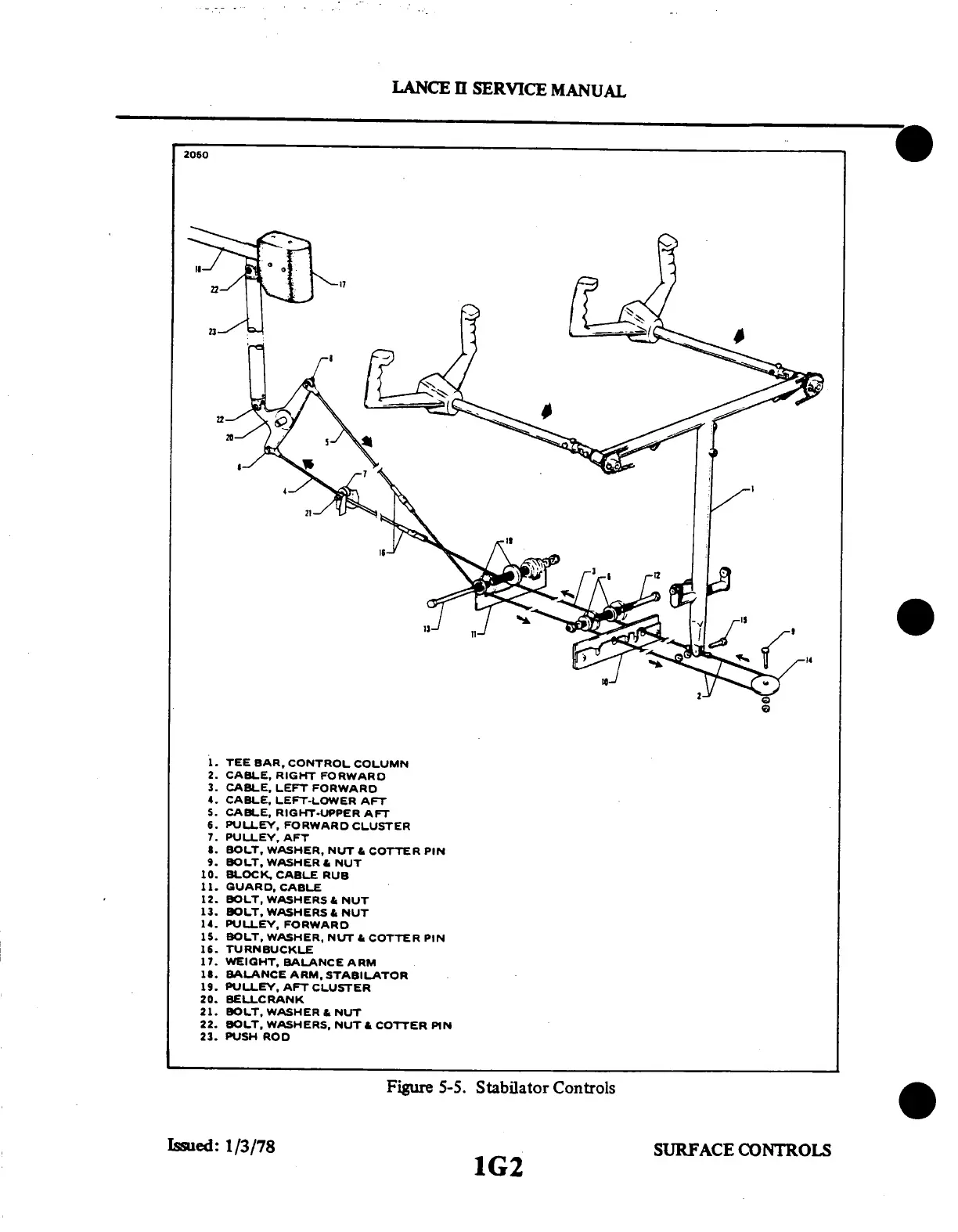

Figure
5-5.
Stabilator
Controls
Issued:
1/3/78
1G2
SURFACE
CONTROLS
