LANCE
II
SERVICE
MANUAL
1
1.
HOUSING
5.
O-RING
9.
O-RING
13.
SPRING
2.
RETAINING
RING
6.
PISTON
10.
O-RING
14.
WASHER
3.
SLEEVE
7.
O-RING
11.
WASHER
WIPER
15.
ROLL
PIN
4.
SPRING
8.
GLAND
12.
ROD

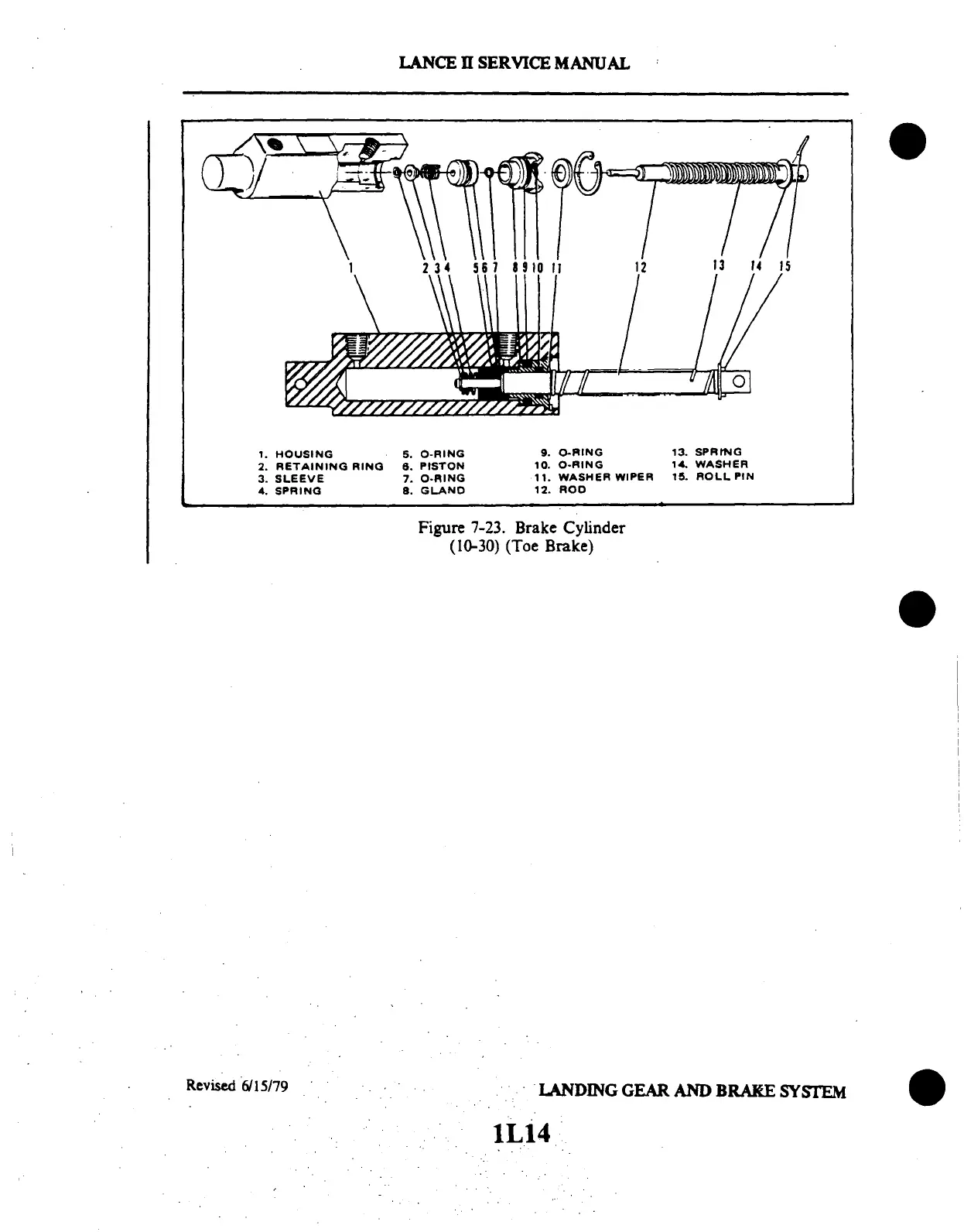

Figure
7-23.
Brake
Cylinder
(10-30)
(Toe
Brake)
Revised
6/15/79
LANDING
GEAR
AND
BRAKE
SYSTEM
1L14
