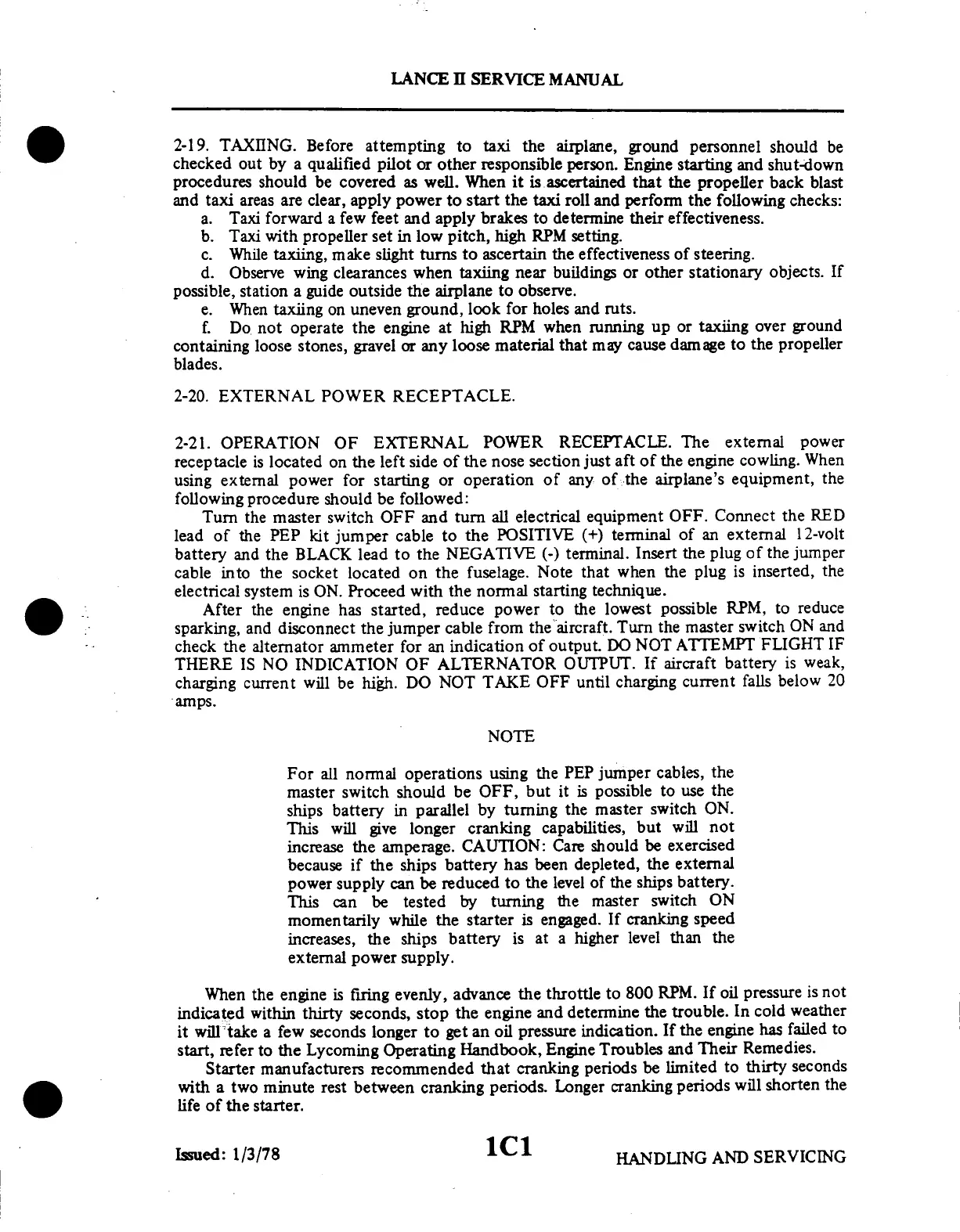

LANCE
II
SERVICE
MANUAL
2-19.
TAXIING.
Before
attempting
to
taxi
the
airplane,
ground
personnel
should
be
checked
out
by
a
qualified
pilot
or
other
responsible
person.
Engine
starting
and
shut-down
procedures
should
be
covered
as
well.
When
it
is
ascertained
that
the
propeller
back
blast
and
taxi
areas
are
clear,
apply
power
to
start
the
taxi
roll
and
perform
the
following
checks:
a.
Taxi
forward
a
few
feet
and
apply
brakes
to
determine
their
effectiveness.
b.
Taxi
with
propeller
set
in
low
pitch,
high
RPM
setting.
c.
While
taxiing,
make
slight
turns
to
ascertain
the
effectiveness
of
steering.
d.
Observe
wing
clearances
when
taxiing
near
buildings
or
other
stationary
objects.
If
possible,
station
a
guide
outside
the
airplane
to
observe.
e.
When
taxiing
on
uneven
ground,
look
for
holes
and
ruts.
f.
Do
not
operate
the
engine
at
high
RPM
when
running
up
or
taxiing
over
ground
containing
loose
stones,
gravel
or
any
loose
material
that
may
cause
damage
to
the
propeller
blades.
2-20.
EXTERNAL
POWER
RECEPTACLE.
2-21.
OPERATION
OF
EXTERNAL
POWER
RECEPTACLE.
The
external
power
receptacle
is
located
on
the
left
side
of
the
nose
section
just
aft
of
the
engine
cowling.
When
using
external
power
for
starting
or
operation
of
any
of
the
airplane's
equipment,
the
following
procedure
should
be
followed:
Turn
the
master
switch
OFF
and
turn
all
electrical
equipment
OFF.
Connect
the
RED
lead
of
the
PEP
kit
jumper
cable
to
the
POSITIVE
(+)
terminal
of
an
external
12-volt
battery
and
the
BLACK
lead
to
the
NEGATIVE
(-)
terminal.
Insert
the
plug
of
the
jumper
cable
into
the
socket
located
on
the
fuselage.
Note
that
when
the
plug
is
inserted,
the
electrical
system
is
ON.
Proceed
with
the
normal
starting
technique.
After
the
engine
has
started,
reduce
power
to
the
lowest
possible
RPM,
to
reduce
sparking,
and
disconnect
the
jumper
cable
from
the
aircraft.
Turn
the
master
switch
ON
and
check
the
alternator
ammeter
for
an
indication
of
output.
DO
NOT
ATTEMPT
FLIGHT
IF
THERE
IS
NO
INDICATION
OF
ALTERNATOR
OUTPUT.
If
aircraft
battery
is
weak,
charging
current
will
be
high.
DO
NOT
TAKE
OFF
until
charging
current
falls
below
20
amps.
NOTE
For
all
normal
operations
using
the
PEP
jumper
cables,
the
master
switch
should
be
OFF,
but
it
is
possible
to
use
the
ships
battery
in
parallel
by
turning
the
master
switch
ON.
This
will
give
longer
cranking
capabilities,
but
will
not
increase
the
amperage.
CAUTION:
Care
should
be
exercised
because
if
the
ships
battery
has
been
depleted,
the
external
power
supply
can
be
reduced
to
the
level
of
the
ships
battery.
This
can
be
tested
by
turning
the
master
switch
ON
momentarily
while
the
starter
is
engaged.
If
cranking
speed
increases,
the
ships
battery
is
at
a
higher
level
than
the
external
power
supply.
When
the
engine
is
firing
evenly,
advance
the
throttle
to
800
RPM.
If
oil
pressure
is
not
indicated
within
thirty
seconds,
stop
the
engine
and
determine
the
trouble.
In
cold
weather
it
will
take
a
few
seconds
longer
to
get
an
oil
pressure
indication.
If
the
engine
has
failed
to
start,
refer
to
the
Lycoming
Operating
Handbook,
Engine
Troubles
and
Their
Remedies.
Starter
manufacturers
recommended
that
cranking
periods
be
limited
to
thirty
seconds
with
a
two
minute
rest
between
cranking
periods.
Longer
cranking
periods
will
shorten
the
life
of
the
starter.
Issued:
1/3/78
1C1
HANDLING
AND
SERVICING
48
