Piper Lance II - Points of Coupling Body Wear; Acceptable and Deformed Coupling Springs

LANCE
II SERVICE
MANUAL
823

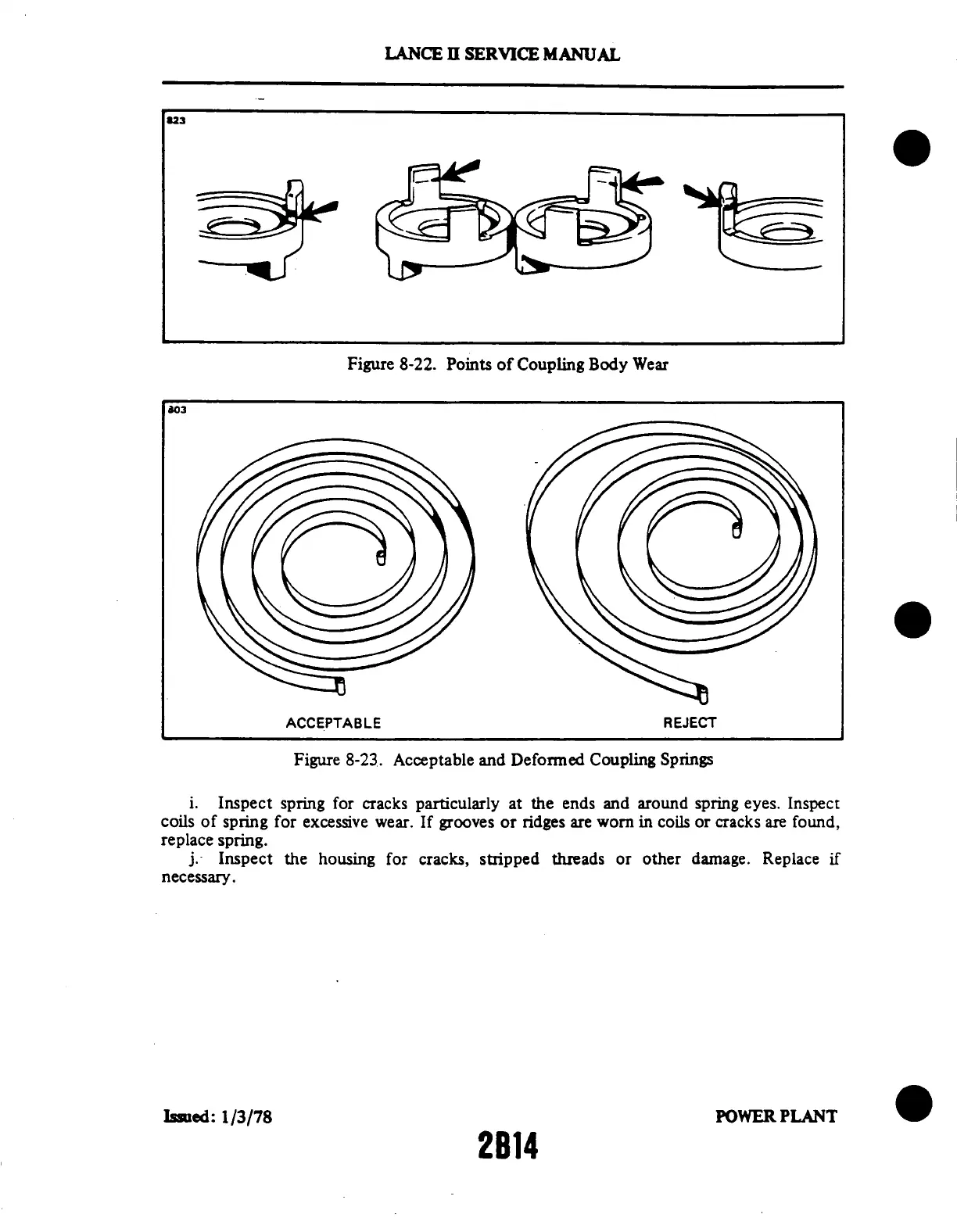

Figure
8-22.
Points
of Coupling
Body
Wear
803
ACCEPTABLE
REJECT
Figure 8-23. Acceptable and Deformed Coupling Springs
i. Inspect
spring for cracks
particularly at
the ends and around
spring eyes. Inspect
coils of spring for
excessive wear. If
grooves or ridges are
worn in coils or
cracks are found,
replace
spring.
j. Inspect
the housing for cracks, stripped
threads or other damage. Replace
if
necessary.
Issued:
1/3/78
POWER PLANT
2B14
