Piper Lance II User Manual

14
1 15 2
34 5 6 7 8910
11 12 13
14
1. HOUSING
6. O-RING
11. SPRING
2. SPRING
7. PACKING
GLAND
12. PISTON
ROD
3. PISTON 8. O-RING 13. WASHER
4. O-RING . WIPER WASHER 14. ROLL PIN
5. SEAL
WASHER 10. RETAINING
RING 15. ROLL PIN
LANCE II SERVICE MANUAL
1. HOUSING
5. O-RING
9.
O-RING
13
WASHER
2. RETAINING
RING
6.
PISTON
10. O-RING
14 ROLL
PIN
3.
SLEEVE
7.
SEAL
11. SPRING
4. SPRING
8.
FITTING
12.
PISTON ROD

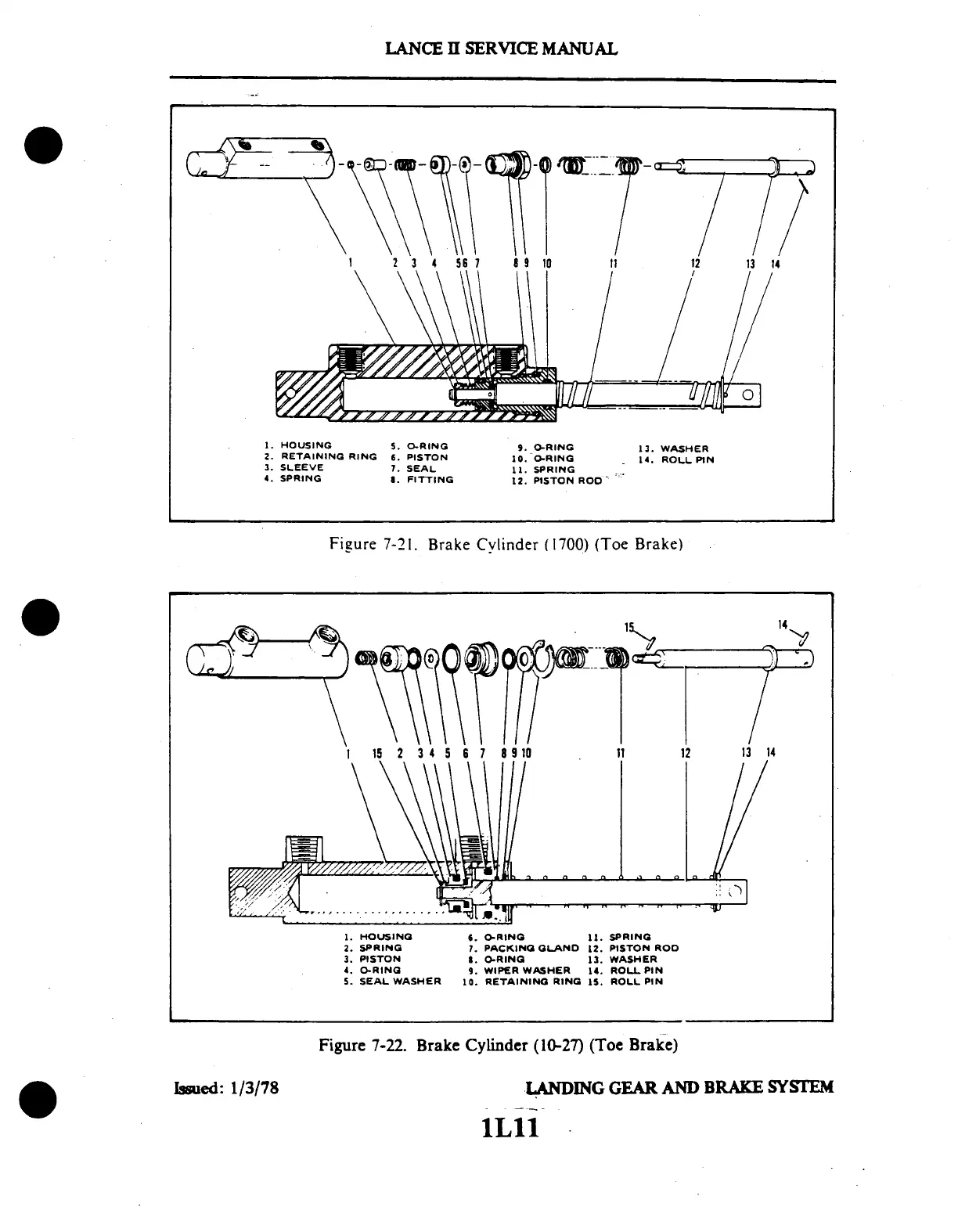

Figure 7-21. Brake Cylinder (1700) (Toe Brake)
Figure 7-22. Brake
Cylinder (10-27) (Toe
Brake)
Issued:
1/3/78
LANDING GEAR AND BRAKE SYSTEM
1L11

Piper Lance II Specifications

General

Manufacturer	Piper Aircraft
Max Takeoff Weight	3, 600 lb (1, 633 kg)
Crew	1
Horsepower	300 hp
Seats	6
Length	27 ft 7 in (8.41 m)
Capacity	5 passengers
