LANCE II SERVICE MANUAL

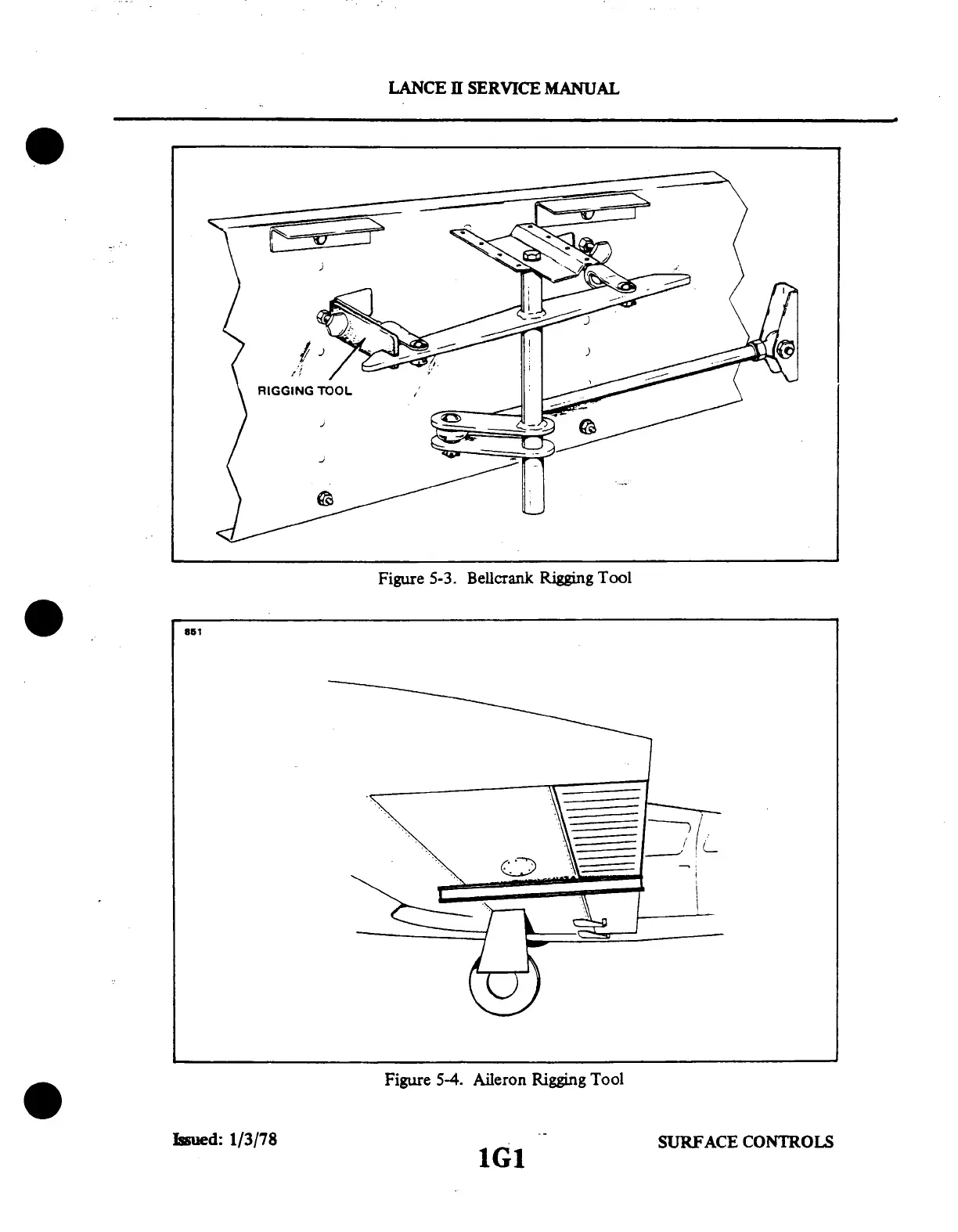

Figure
5-3.
Bellcrank
Rigging
Tool
851
Figure 5-4.
Aileron Rigging
Tool
Issued: 1/3/78
SURFACE CONTROLS
1G1
