16.65
LANCE II SERVICE
MANUAL
24.55
FOR
6.65
TRAVEL
MAKE
FROM
.12 ALUM.

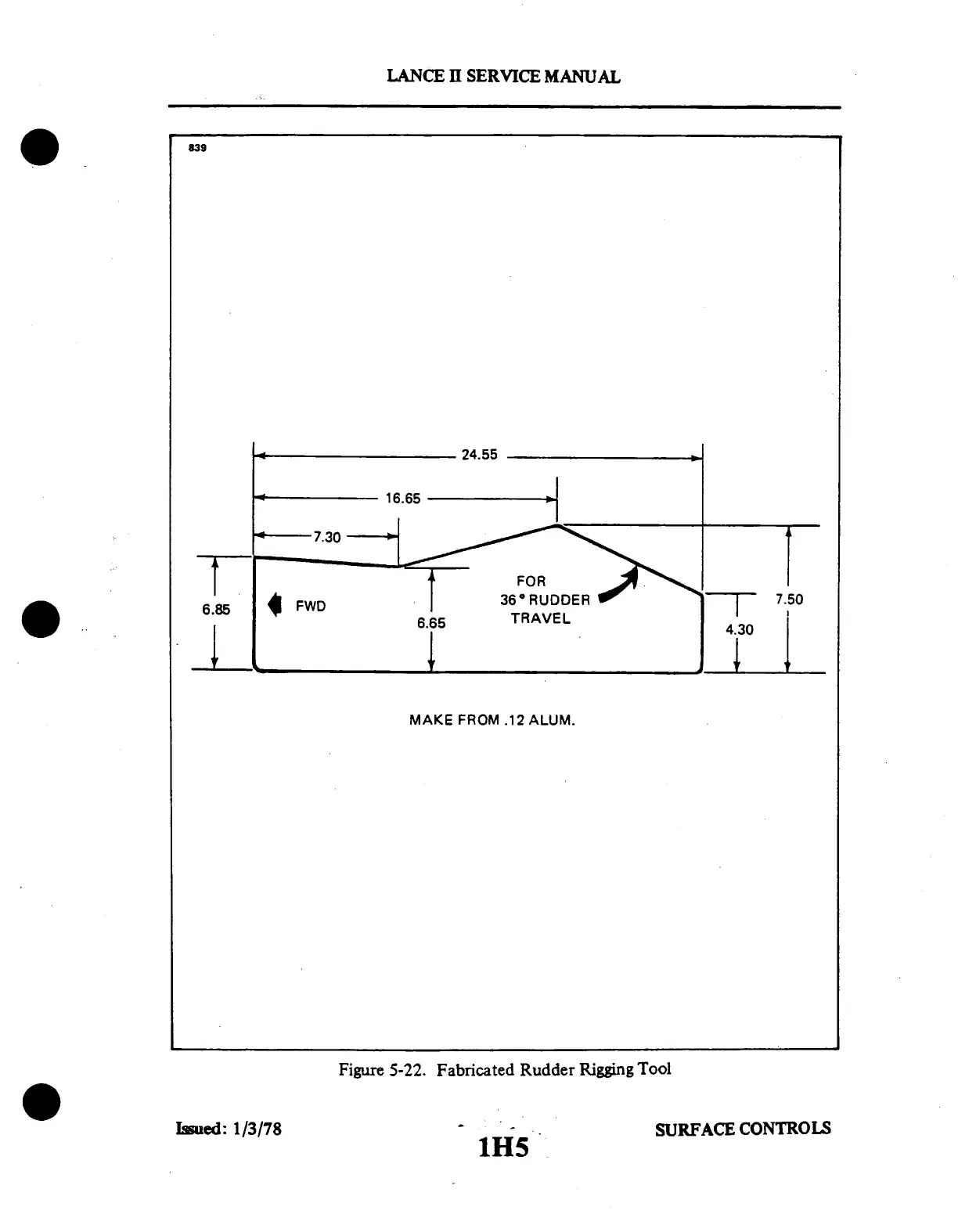

Figure 5-22.
Fabricated
Rudder
Rigging
Tool
Issued: 1/3/78
SURFACE
CONTROLS
1H5
