-1.50-
LANCE
II
SERVICE
MANUAL
A
12.00
25
50
((((((((
1.
1.50
.25
.062
.25
ALLEN
SET-SCREW
MATERIAL:
Steel

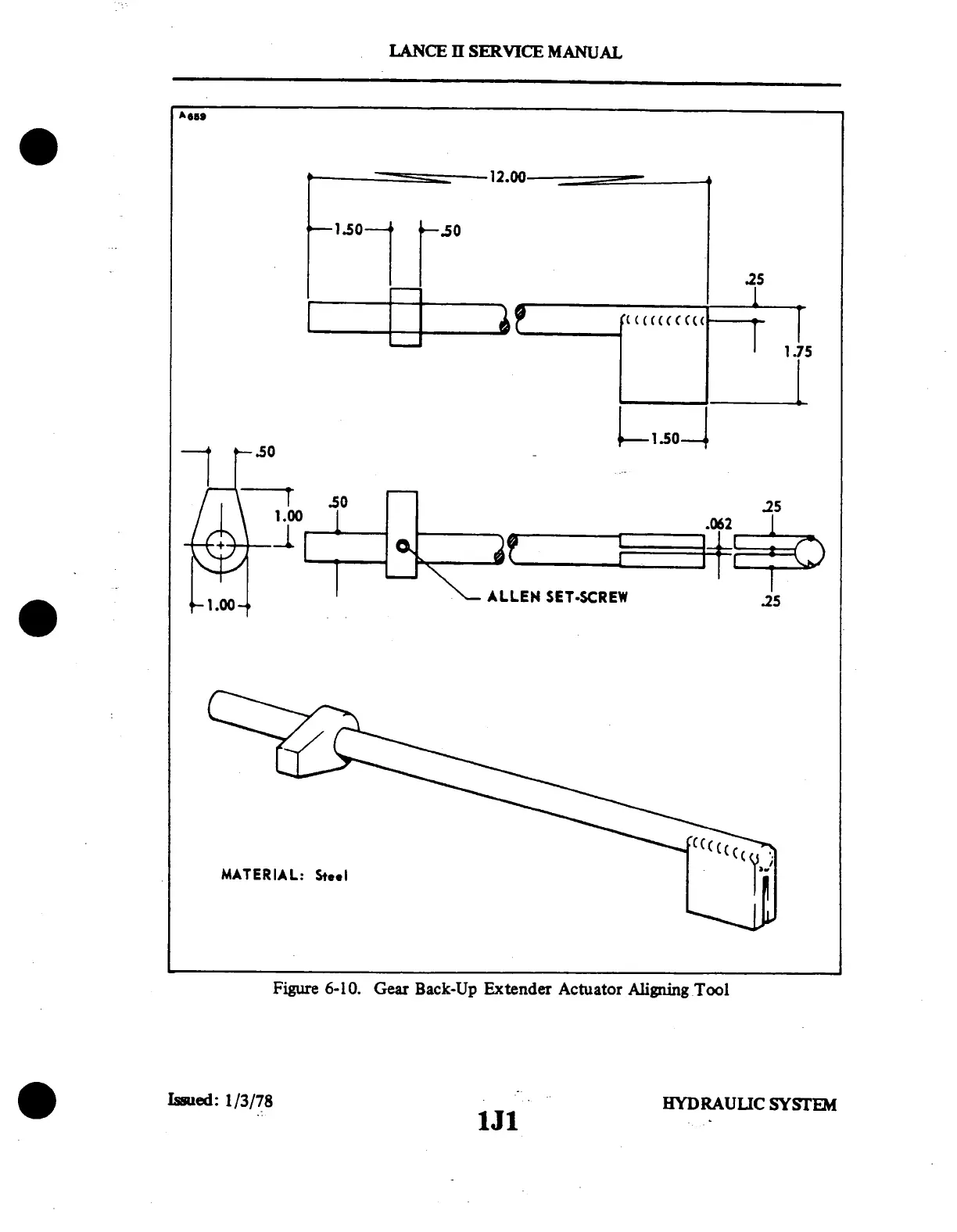

Figure
6-10.
Gear
Back-Up
Extender
Actuator
Aligning
Tool
Issued:
1/3/78
1J1
HYDRAULIC
SYSTEM
