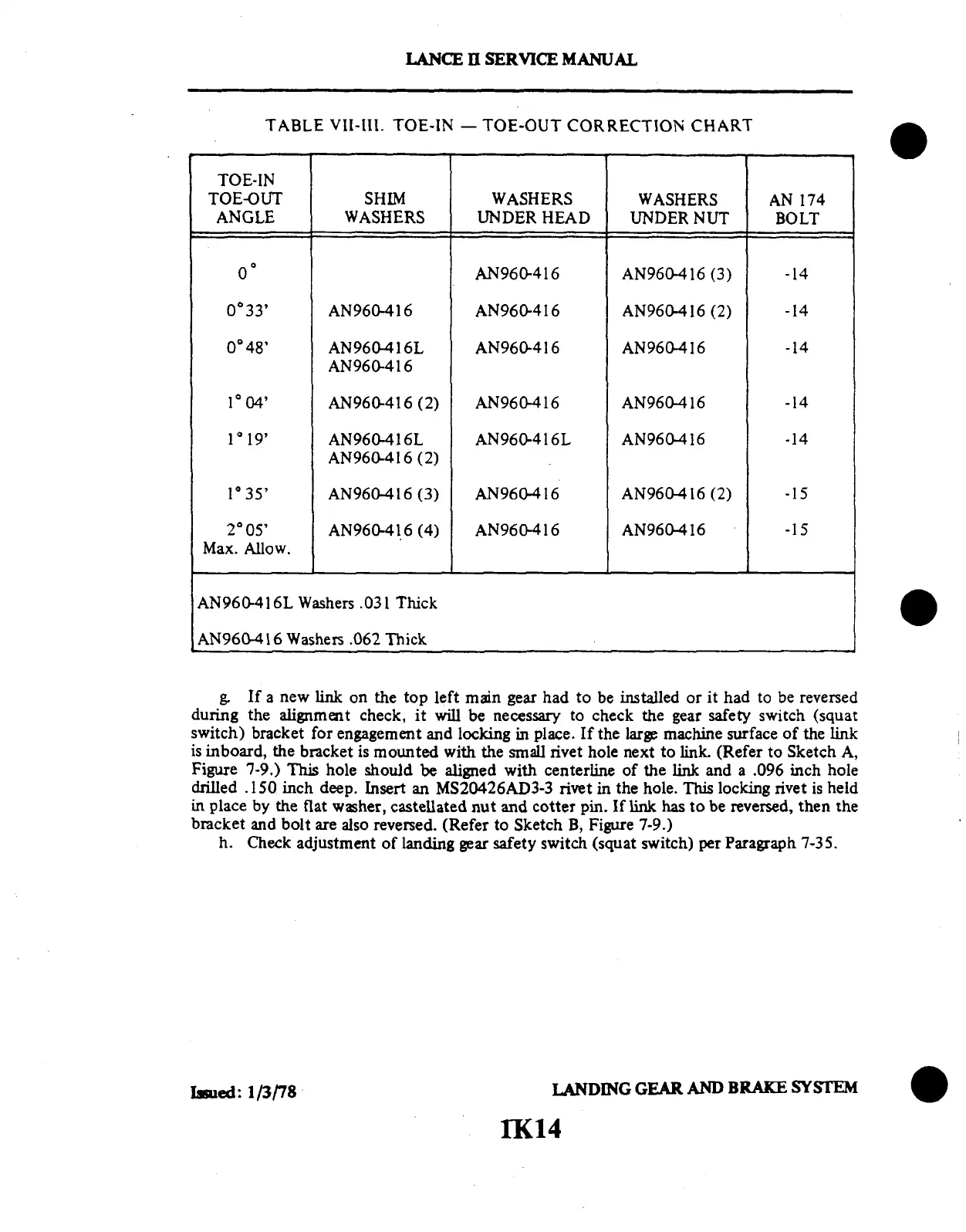

LANCE
II SERVICE
MANUAL
TABLE
VII-III.
TOE-IN
- TOE-OUT
CORRECTION
CHART
TOE-IN
TOE-OUT SHIM
WASHERS WASHERS
AN 174
ANGLE
WASHERS
UNDER HEAD
UNDER
NUT BOLT
0
°
AN960-416
AN960-416
(3)
-14
0°33'
AN960-416
AN960-416
AN960-416
(2) -14
0°48' AN960-416L
AN960-416 AN960-416
-14
AN960-416
1°
04'
AN960-416
(2) AN960-416
AN960-416
-14
1
°
19'
AN960-416L
AN960-416L
AN960-416
-14
AN960-416(2)
1 35'
AN960-416 (3) AN960-416
AN960-416 (2)
-15
2°05
'
AN960-416 (4) AN960-416
AN960-416
-15
Max.
Allow.
AN960-416L
Washers
.031 Thick
AN96-416
Washers
.062 Thick
g. If a new
link on the top left main gear had
to be installed or it had to be reversed
during
the alignment
check, it will be
necessary to check
the gear safety switch
(squat
switch)
bracket for engagement
and locking
in place. If the
large machine surface
of the link
is inboard,
the bracket is mounted
with the small
rivet hole next to
link. (Refer to Sketch
A,
Figure 7-9.) This
hole should be aligned
with centerline
of the link and
a .096 inch hole
drilled .150 inch deep. Insert an MS20426AD3-3
rivet in the hole. This locking
rivet is held
in place by the
flat washer, castellated
nut and cotter
pin. If link has to
be reversed, then the
bracket and
bolt are also
reversed. (Refer
to Sketch
B, Figure 7-9.)
h. Check adjustment
of landing
gear safety switch
(squat switch)
per Paragraph 7-35.
Issued:
1/3/78
LANDING
GEAR
AND BRAKE
SYSTEM
1K14
