11-12.
REMOVING
RECTIFIERS.
After
cutting
the
lead
from
the
mal-
functioning
rectifier,
position
the
fix-
ture
with
the
rectifier
to
be
removed
over
the
fixture
anvil.
Position
the
removing
adapter
SP-3821
around
the
rectifier.
Rotate
the
threaded
screw
clockwise.
As
the
screw
approaches
the
removing
adap-
ter,
guide
its
shank
into
the
hole
in
the
end
of
the
screw.
Just
before
the
downward
motion
of
the
screw
bottoms,
recheck
the
a-
dapter
to
be
sure
it
is
in
the
proper
position.
Then
continue
to
rotate
the
screw
until
the
rectifier
is
free
of
the
end
shield
or heat
sink.
Reverse
the
screw
by
rotating
it
counter-clockwise.
Remove
adapter
and
old
rectifier.
Remove
the
end
shield
assembly
installing
support
on
the
fixture
anvil.
LANCE
II SERVICE
MANUAL

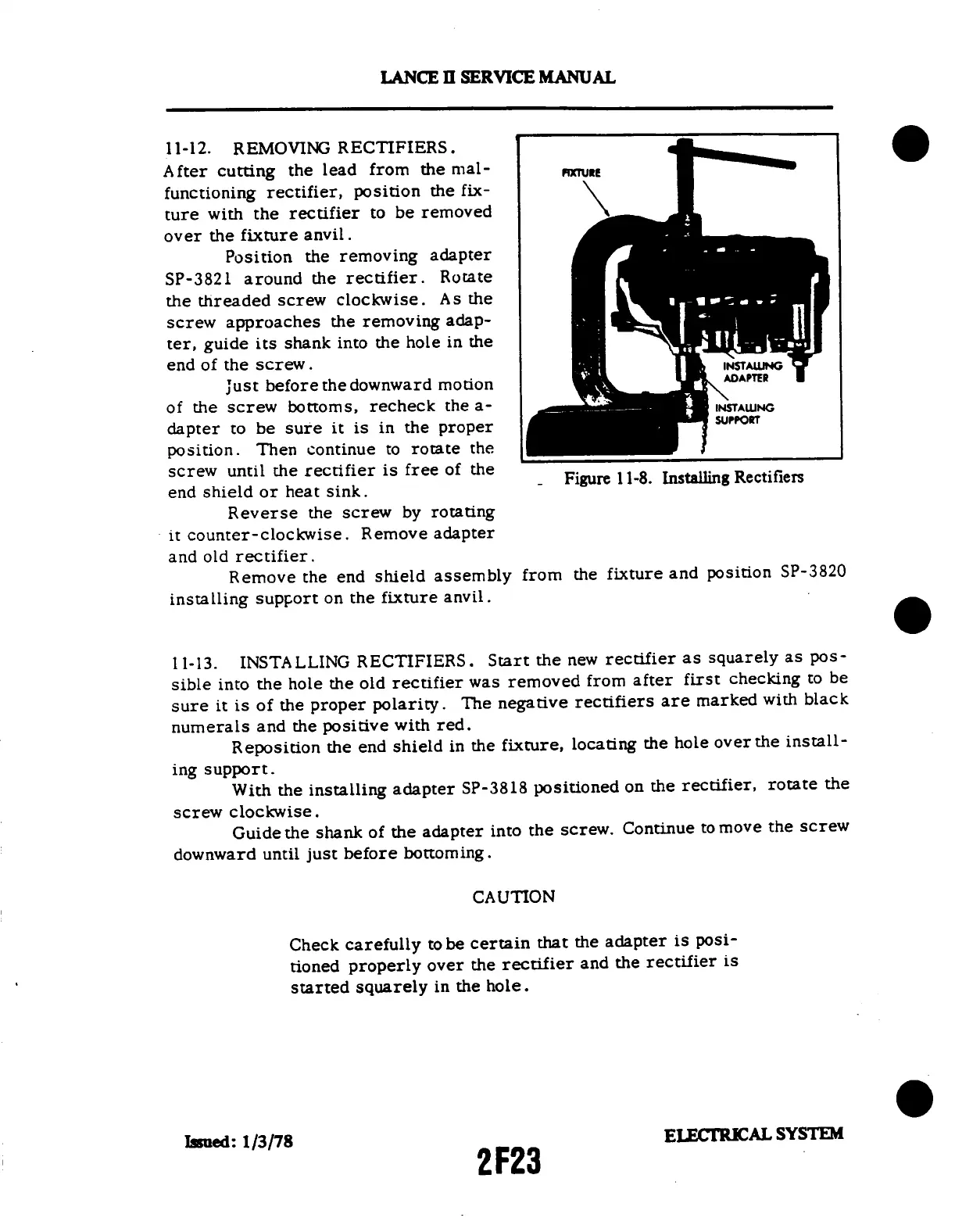

Figure
11-8.
Installing
Rectifiers
from
the
fixture
and
position
SP-3820
11-13.
INSTALLING
RECTIFIERS.
Start
the
new
rectifier
as
squarely
as
pos-
sible
into
the
hole
the
old
rectifier
was
removed
from
after
first
checking
to
be
sure
it
is
of
the
proper
polarity.
The
negative
rectifiers
are
marked
with
black
numerals
and
the
positive
with
red.
Reposition
the
end
shield
in
the
fixture,
locating
the
hole
over
the
install-
ing
support.
With
the
installing
adapter
SP-3818
positioned
on
the
rectifier,
rotate
the
screw
clockwise.
Guide
the
shank
of
the
adapter
into
the
screw.
Continue
to
move
the
screw
downward
until
just
before
bottoming.
CAUTION
Check
carefully
to
be
certain
that
the
adapter
is
posi-
tioned
properly
over
the
rectifier
and
the
rectifier
is
started
squarely
in
the
hole.
Issued:
1/3/78
2F23
ELECTRICAL
SYSTEM
