Piper Lance II User Manual

RI
DOOR
OPEN
LIGHT
14V BUS
C81
BLOWER
32RT-300
THROTTLE SW.'.
AIR
COND.
SW,
32 RT-300T
MANIFOLT
PRESSURE
SW.
THERMOSTAT
COMPRESSOR
CLUTCH
DOOR
MOTOR
SHOWN
WITH AIR CONDITIONING
FAN SWITCH IN OFF
POSITION. THROTTLE
NOT WIDE
OPEN FOR
* PA-32 RT-300 OR MANIFOLD PRESSURE NOT ABOVE 34
INCHES OF MERCURY FOR PA-32RT-300T. AIR
' CONDITIONING
SWITCH IN ON POSITION,
FREON
PRESSURE BELOW LIMIT, THERMOSTAT CALUNG
FOR COOLING, AND CONDENSER DOOR CLOSED.

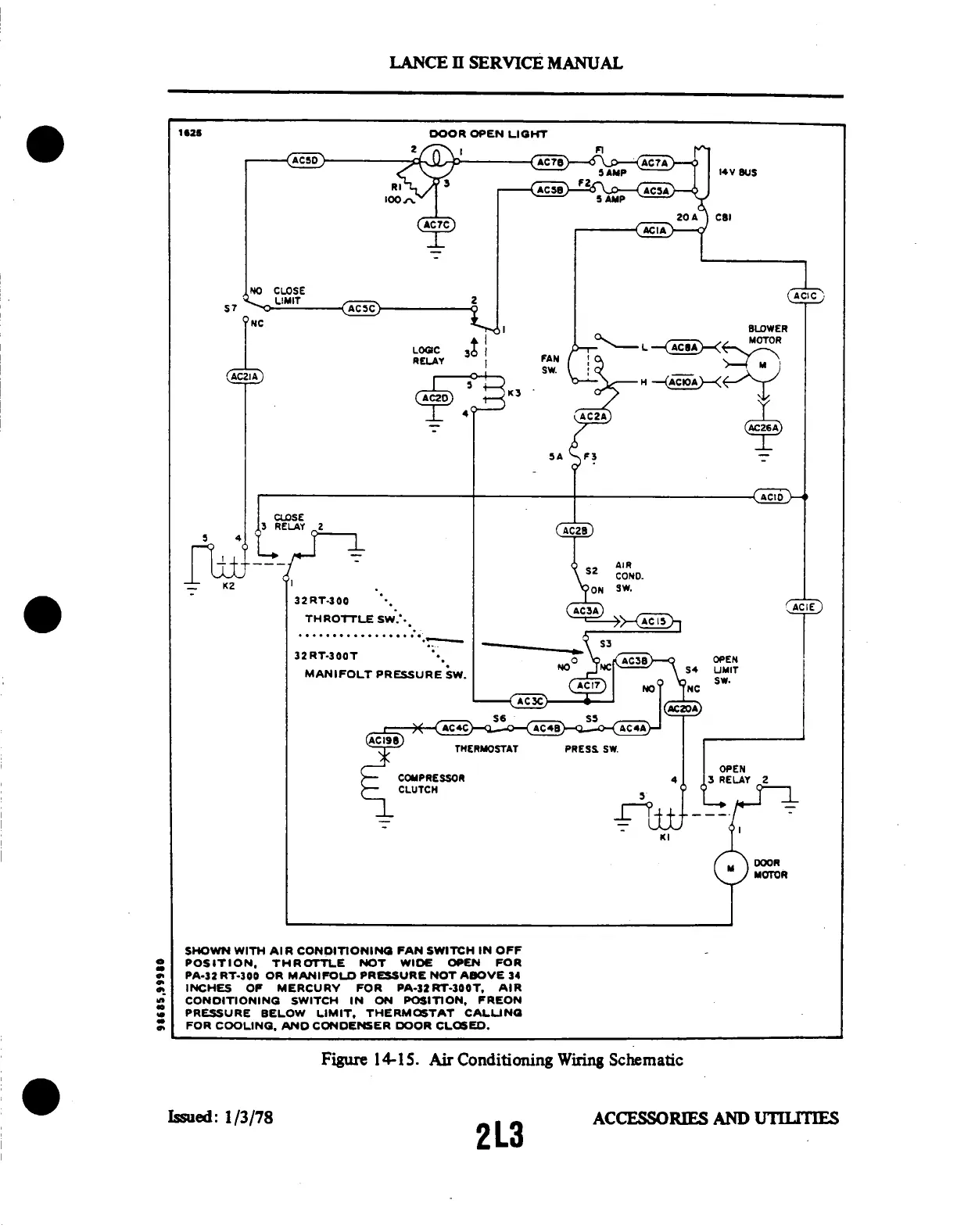

Figure 14-15.
Air Conditioning Wiring
Schematic
Issued:
1/3/78
213
ACCESSORIES AND UTILITIES

Piper Lance II Specifications

General

Manufacturer	Piper Aircraft
Max Takeoff Weight	3, 600 lb (1, 633 kg)
Crew	1
Horsepower	300 hp
Seats	6
Length	27 ft 7 in (8.41 m)
Capacity	5 passengers
