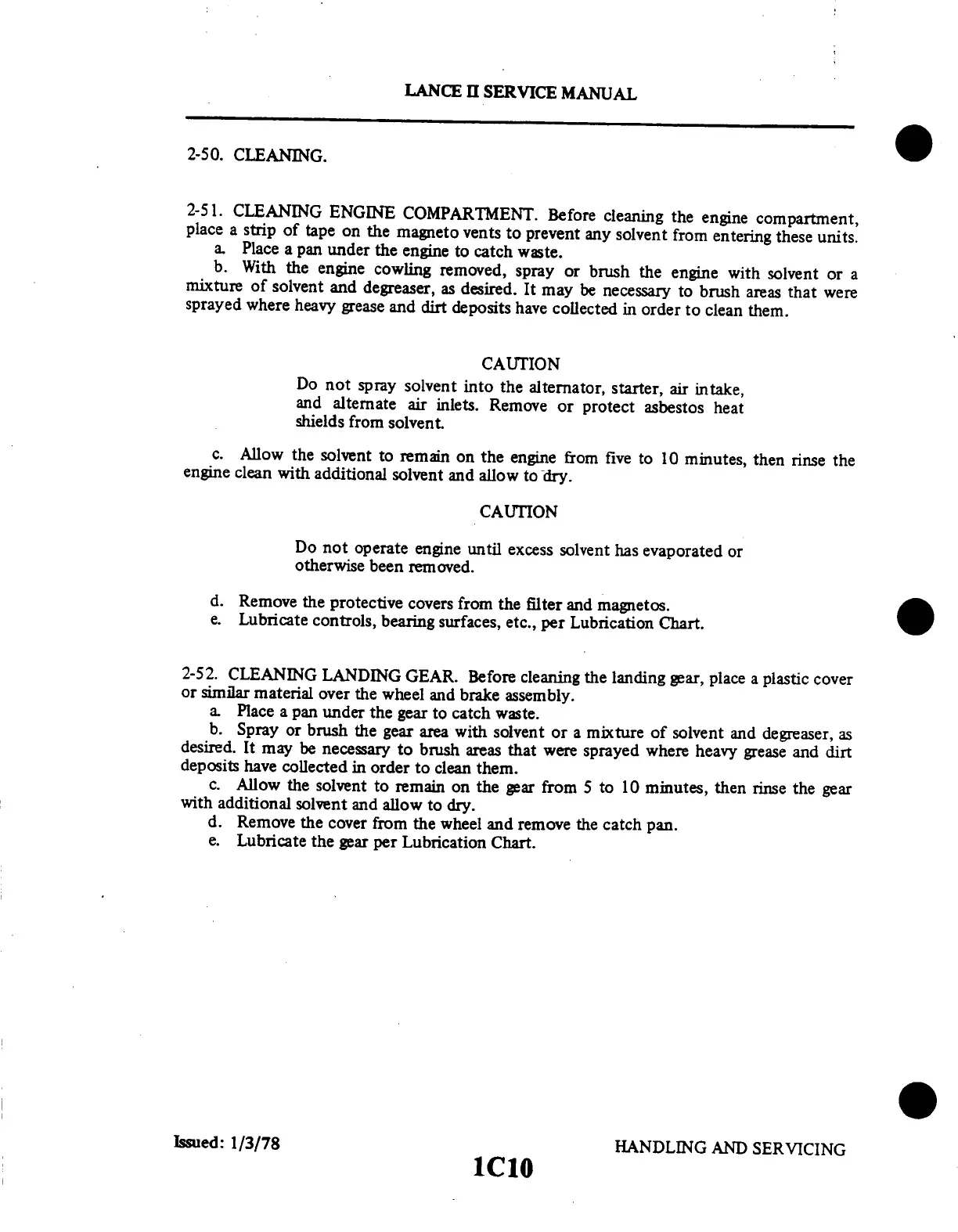

2-50.
CLEANING.
2-51.
CLEANING
ENGINE
COMPARTMENT.
Before
cleaning
the
engine
compartment,
place
a
strip
of
tape
on
the
magneto
vents
to
prevent
any
solvent
from
entering
these
units.
a.
Place
a
pan
under
the
engine
to
catch
waste.
b.
With
the
engine
cowling
removed,
spray
or
brush
the
engine
with
solvent
or
a
mixture
of
solvent
and
degreaser,
as
desired.
It
may
be
necessary
to
brush
areas
that
were
sprayed
where
heavy
grease
and
dirt
deposits
have
collected
in
order
to
clean
them.
CAUTION
Do
not
spray
solvent
into
the
alternator,
starter,
air
intake,
and
alternate
air
inlets.
Remove
or
protect
asbestos
heat
shields
from
solvent.
c.
Allow
the
solvent
to
remain
on
the
engine
from
five
to
10
minutes,
then
rinse
the
engine
clean
with
additional
solvent
and
allow
to
dry.
CAUTION
Do
not
operate
engine
until
excess
solvent
has
evaporated
or
otherwise
been
removed.
d.
Remove
the
protective
covers
from
the
filter
and
magnetos.
e.
Lubricate
controls,
bearing
surfaces,
etc.,
per
Lubrication
Chart.
2-52.
CLEANING
LANDING
GEAR.
Before
cleaning
the
landing
gear,
place
a
plastic
cover
or
similar
material
over
the
wheel
and
brake
assembly.
a.
Place
a
pan
under
the
gear
to
catch
waste.
b.
Spray
or
brush
the
gear
area
with
solvent
or
a
mixture
of
solvent
and
degreaser,
as
desired.
It
may
be
necessary
to
brush
areas
that
were
sprayed
where
heavy
grease
and
dirt
deposits
have
collected
in
order
to
clean
them.
c.
Allow
the
solvent
to
remain
on
the
gear
from
5
to
10
minutes,
then
rinse
the
gear
with
additional
solvent
and
allow
to
dry.
d.
Remove
the
cover
from
the
wheel
and
remove
the
catch
pan.
e.
Lubricate
the
gear
per
Lubrication
Chart.
Issued:
1/3/78
HANDLING
AND
SERVICING
1C10
LANCE
II
SERVICE
MANUAL
57
59
