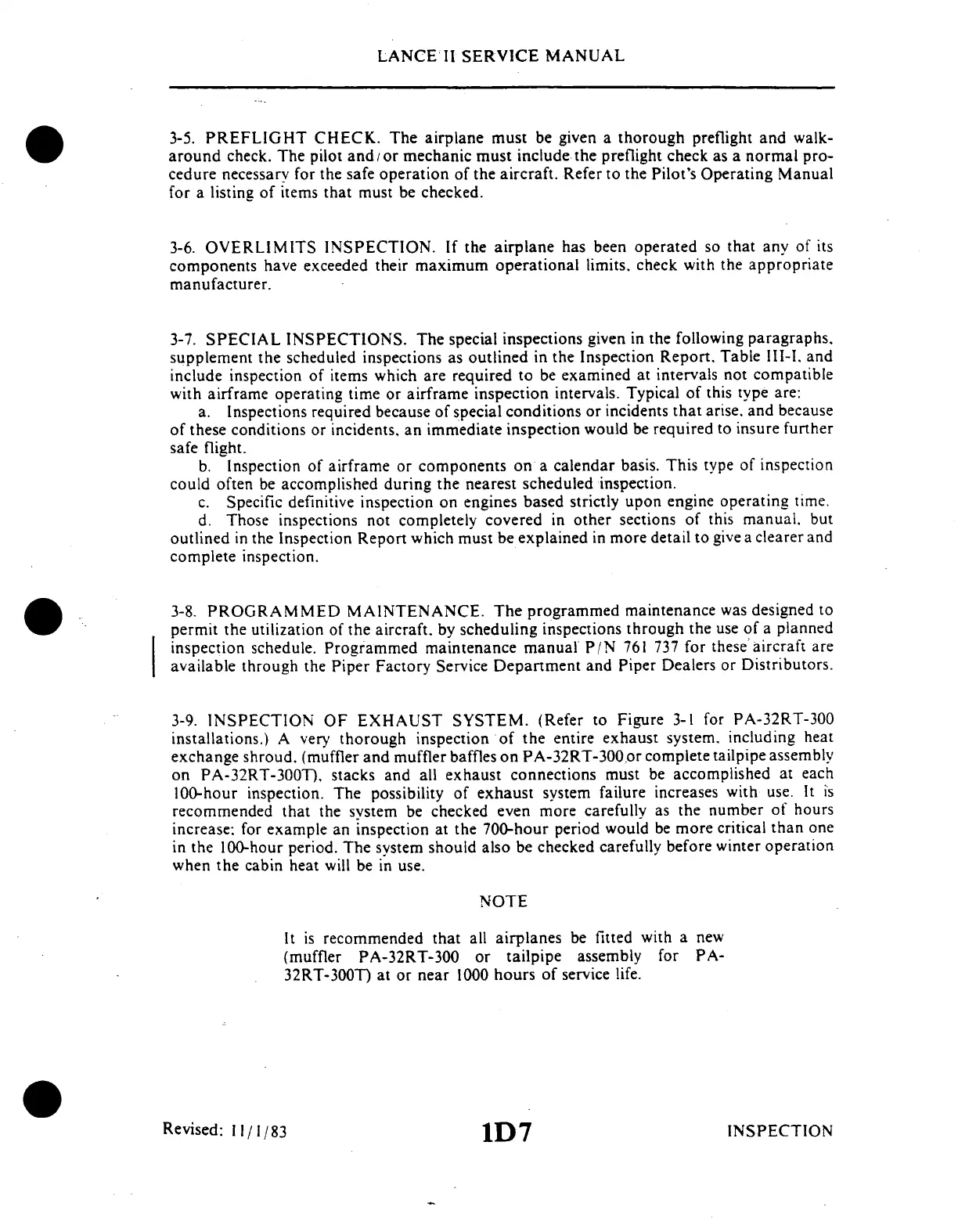

LANCE
II
SERVICE
MANUAL
3-5.
PREFLIGHT
CHECK.
The
airplane
must
be
given
a
thorough
preflight
and
walk-
around
check.
The
pilot
and
/
or
mechanic
must
include
the
preflight
check
as
a
normal
pro-
cedure
necessary
for
the
safe
operation
of
the
aircraft.
Refer
to
the
Pilot's
Operating
Manual
for
a
listing
of
items
that
must
be
checked.
3-6.
OVERLIMITS
INSPECTION.
If
the
airplane
has
been
operated
so
that
any
of
its
components
have
exceeded
their
maximum
operational
limits,
check
with
the
appropriate
manufacturer.
3-7.
SPECIAL
INSPECTIONS.
The
special
inspections
given
in
the
following
paragraphs.
supplement
the
scheduled
inspections
as
outlined
in
the
Inspection
Report.
Table
II-I.
and
include
inspection
of
items
which
are
required
to
be
examined
at
intervals
not
compatible
with
airframe
operating
time
or
airframe
inspection
intervals.
Typical
of
this
type
are:
a.
Inspections
required
because
of
special
conditions
or
incidents
that
arise,
and
because
of
these
conditions
or
incidents,
an
immediate
inspection
would
be
required
to
insure
further
safe
flight.
b.
Inspection
of
airframe
or
components
on
a
calendar
basis.
This
type
of
inspection
could
often
be
accomplished
during
the
nearest
scheduled
inspection.
c.
Specific
definitive
inspection
on
engines
based
strictly
upon
engine
operating
time.
d.
Those
inspections
not
completely
covered
in
other
sections
of
this
manual.
but
outlined
in
the
Inspection
Report
which
must
be
explained
in
more
detail
to
give
a
clearer
and
complete
inspection.
3-8.
PROGRAMMED
MAINTENANCE.
The
programmed
maintenance
was
designed
to
permit
the
utilization
of
the
aircraft,
by
scheduling
inspections
through
the
use
of
a
planned
inspection
schedule.
Programmed
maintenance
manual
P/N
761
737
for
these
aircraft
are
available
through
the
Piper
Factory
Service
Department
and
Piper
Dealers
or
Distributors.
3-9.
INSPECTION
OF
EXHAUST
SYSTEM.
(Refer
to
Figure
3-1
for
PA-32RT-300
installations.)
A
very
thorough
inspection
of
the
entire
exhaust
system.
including
heat
exchange
shroud.
(muffler
and
muffler
baffles
on
PA-32RT-300or
complete
tailpipe
assembly
on
PA-32RT-300T),
stacks
and
all
exhaust
connections
must
be
accomplished
at
each
100-hour
inspection.
The
possibility
of
exhaust
system
failure
increases
with
use.
It
i's
recommended
that
the
system
be
checked
even
more
carefully
as
the
number
of
hours
increase:
for
example
an
inspection
at
the
700-hour
period
would
be
more
critical
than
one
in
the
100-hour
period.
The
system
should
also
be
checked
carefully
before
winter
operation
when
the
cabin
heat
will
be
in
use.
NOTE
It
is
recommended
that
all
airplanes
be
fitted
with
a
new
(muffler
PA-32RT-300
or
tailpipe
assembly
for
PA-
32RT-300T)
at
or
near
1000
hours
of
service
life.
Revised:
11/1/83
1D7
INSPECTION
78
80
