Pit Boss 77435 - Parts & Specs

ENGLISH
6
  
MODEL ASSEMBLED (WxHxD) WEIGHT COOKING AREA RANGE BTU

31
790  1,190  540
/ 31 .  46 .  21 .
24.6 
/ 54.23 
  0.07 
3
/ 2.8 
3
  4,640  / 720 
38160°
/ 100320°
12,500

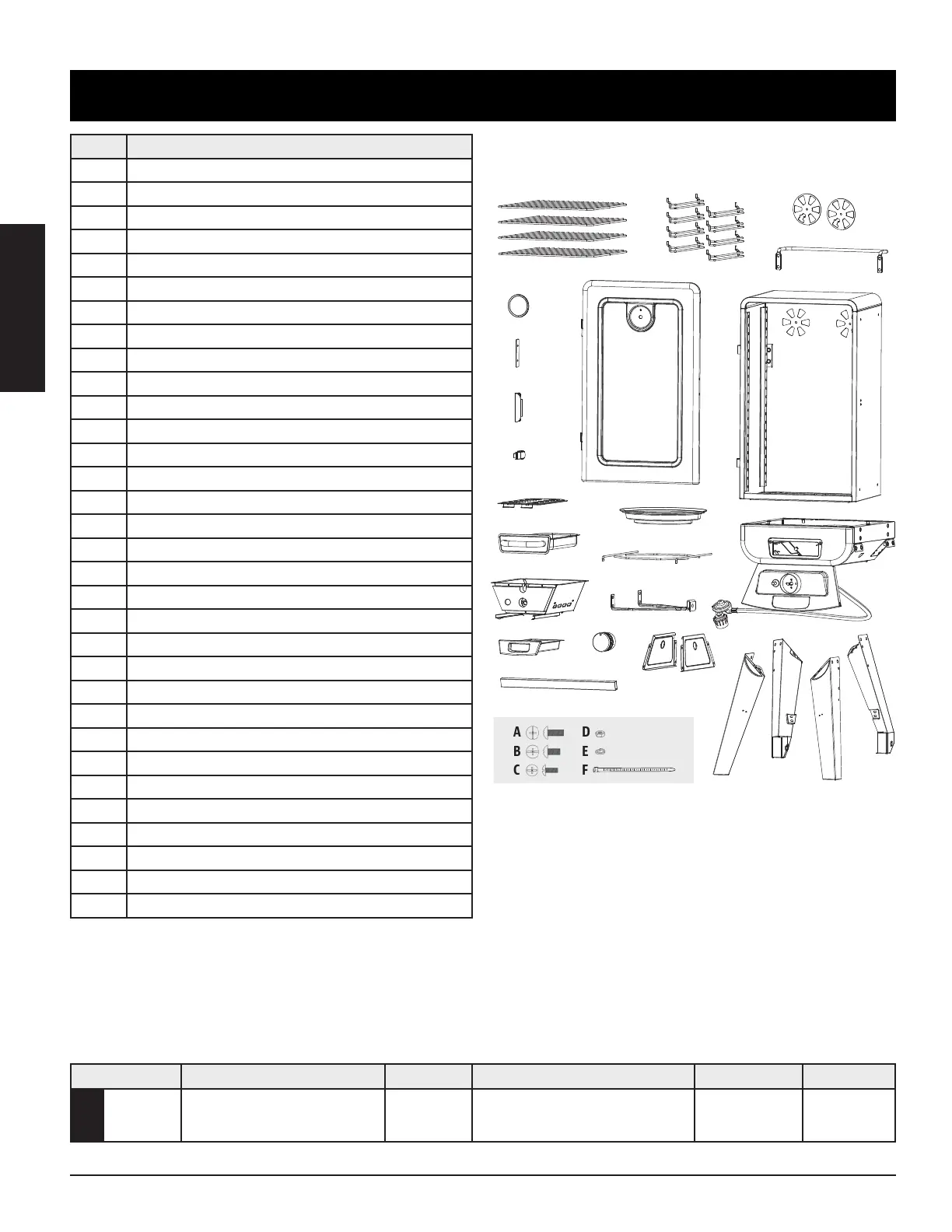

Part# Description
1 Cooking Grids (x4)
2 Cooking Grid Support Brackets (x8)
3 Damper Vent (x2)
4 Back Handle (x1)
5 Heat Indicator (x1)
6 Cabinet Door Handle Gasket (x1)
7 Cabinet Door Handle (x1)
8 Cabinet Door Latch (x1)
9 Cabinet Door (x1)
10 Main Cabinet (x1)
11 Wood Chip Tray Lid (x1)
12 Wood Chip Tray Assembly (x1)
13 Bottom Chamber Assembly (x1)
14 Grease Tray (x1)
15 Support Bar (x1)
16 Water Pan (x1)
17 Water Pan Support (x1)
18 Gas Cylinder Retainer Bracket (x1)
19 Control Knob (x1)
20 Support Panel (x2)
21 Cabinet Base (x1)
22
Left Support Leg / Front (x1)
23
Left Support Leg / Back (x1)
24
Right Support Leg / Front (x1)
25
Right Support Leg / Back (x1)
A Screw (x4)
B Screw (x16)
C Screw (x30)
D Lock Nut (x2)
E Locking Washer (x2)
F Zip-tie (x1)
G Spare Hardware
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Care if parts are missing when assembling the unit.
